View Issue Details

IDProjectCategoryView StatusLast Update
0002311SpeedFanHardware supportpublic2015-01-22 19:47
Reporterspb327 Assigned Toalfredo
Status resolvedResolutionfixed
PlatformPCOSWindows 7OS VersionPro 64bit
Product Version4.50 beta
Fixed in Version4.51 beta
Summary0002311: no Support for Gigabyte Z97X-UD3H
I am using the latest beta (v4.50 beta 2) from the speedfan-website and already sent in a report using the info tab.
Speedfan is able to read out several temperatures and fans but nothing else. I can hardly edit anything and no changes have an effect.
On the info tab it says "Intel 9 Series" ChipSet, the sensor seems to be IT8620E.

I would appreciate it very much if you add support for this motherboard respectively the Z97 chipset since speedfan is an awesome program.

TagsNo tags attached.
Motherboard ModelGigabyte Z97X-UD3H
Video Card ModelGigabyte Nvidia Geforce GTX 670 OC


related to 0002347 resolvedalfredo No fan control on Gigabyte Z97N-WIFI
related to 0002582 resolvedalfredo No fan control on Gigabyte Z97N-WIFI
related to 0002355 resolvedalfredo Fan speeds cant be changed
related to 0002358 resolvedalfredo GIGABYTE GA-H97-D3H doesn't work
related to 0002576 resolvedalfredo Fan speeds cant be changed
related to 0002583 resolvedalfredo GIGABYTE GA-H97-D3H doesn't work



2014-10-20 13:27

reporter   ~0007603

I have the Gigabyte Z97P D3 with the same IT8620E and I have the same issues. I hope Alfredo will investigate the matter and soon will release a fix...


2014-11-11 08:27




2014-11-11 08:33

reporter   ~0007610

Last edited: 2014-11-11 09:08

I would reclassify this as a major issue.

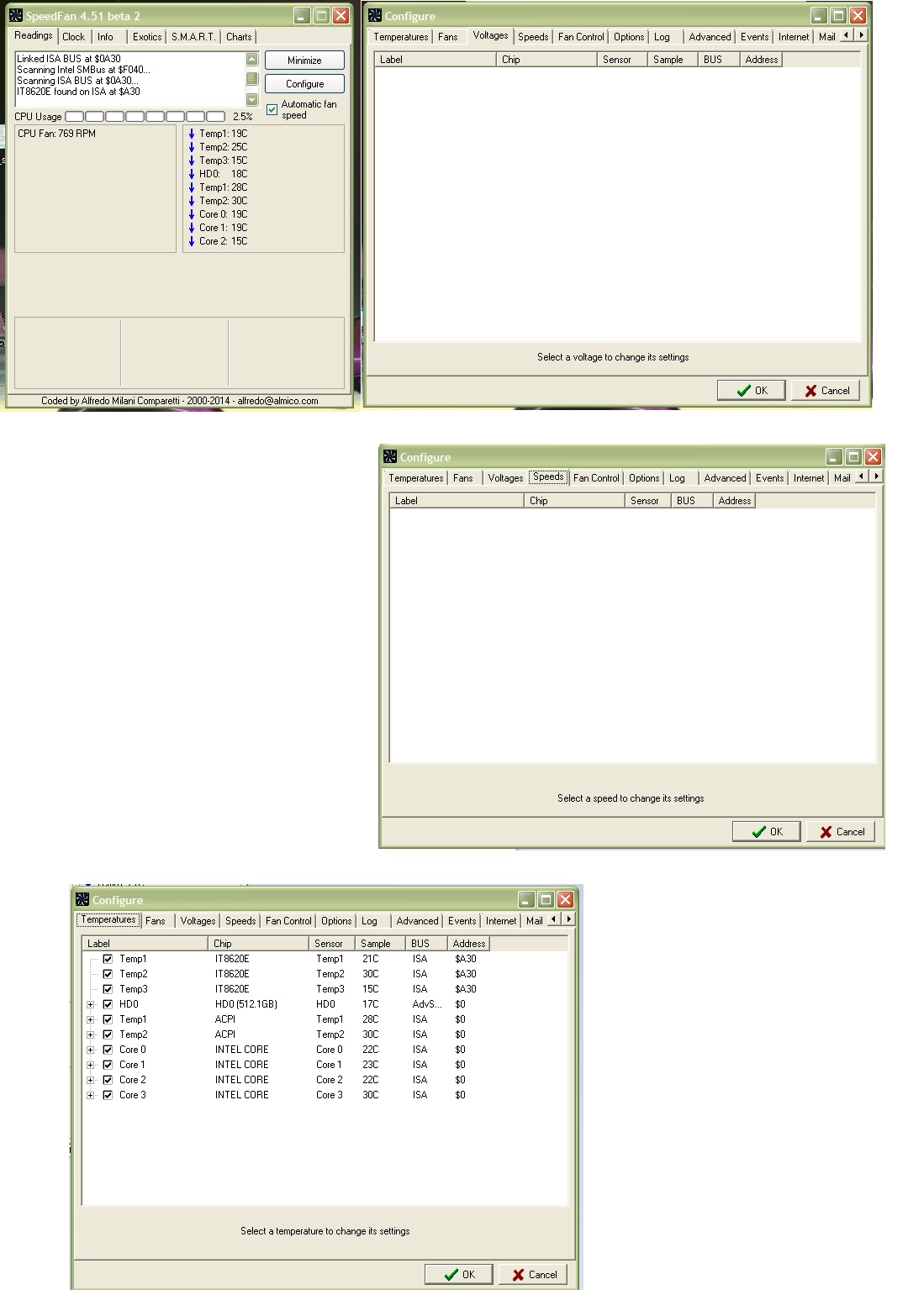

I've just added a screenshot to this issue. Motherboard is Gigabyte Z97X-UD5H-BK. I think this is the same issue as ticket number 2302. Sensor is IT8620E on ISA at $A30

On screensot 4, the Temperatures page, clicking the + has no effect.

If you need any further info or screenshots please contact me. Thanks.


2014-11-11 23:21

manager   ~0007626

I am working on this. Unfortunately, the IT8620E is a Gigabyte custom chip and the datasheet is not available. Please, contact me by email (alfredo [at]


2014-11-13 17:34

reporter   ~0007643

Hia Alfredo, I've sent you an email :)



2014-12-24 12:32

reporter   ~0007665

Hia Alfredo, any update on this? I did send you an email as requested but didn't get a reply.



2015-01-08 01:12

reporter   ~0007671

I've also had contact with alfredo concerning this chip. I've sent him some data he asked for, but at some point I got no mail back from him.

Of course this is his free time project so he can't implement all chips and solve all problems, especially as he is maintaining speedfan all alone.

Either way, I think I have to buy a new motherboard or live my life with the crappy Gigabyte Easytune. :(


2015-01-09 14:22

reporter   ~0007672

Isn't it already a reputational damage when people start recommending NOT to buy a Gigabyte MB? Why don't they give public access to this chips datasheet for third party programming?
The smart fan feature in GB's appcenter utility "system information viewer" is rather a bad workaround than a fan control for its lack of advanced settings.

I will later try to make some more detailed testing and send reports via speedfan.


2015-01-14 16:13

manager   ~0007673

I just purchased a Gigabyte motherboard with the IT8620E onboard :-)


2015-01-14 16:31

reporter   ~0007674

Oh wow, thank you so much Alfredo. I've just made a Paypal donation to help cover your costs

Again many thanks and really looking forward to the update.



2015-01-14 16:48

manager   ~0007675

Thank you :-) I'm installing Windows 8 Pro right now.


2015-01-14 19:16

manager   ~0007676

Is there anybody with a motherboard using the IT8620E that has more than 2 fans installed on it?
If yes, please, mail me at alfredo [at] to receive a private beta.
Thank you.


2015-01-15 12:14

manager   ~0007679

Preliminary tests show that the first 3 fans can now be properly controlled using SpeedFan :-)


2015-01-16 13:23

manager   ~0007693

I am purchasing another motherboard with 5 fans on it, to try to make full use of them all :-)


2015-01-22 16:35

manager   ~0007704

Ok. The new beta is almost ready. It can now control 5 fans and, most likely, show voltages too :-)
If anybody wants to give it a try now, feel free to contact me by email.


2015-01-22 17:54

reporter   ~0007712

Last edited: 2015-01-22 18:09

unfortunately it's not possible to view your email at your profile page. i have an h97-hd3 and would very like to test the new beta :) mail: k00ls4v4s at

greets vesanius


2015-01-22 18:50

manager   ~0007713

alfredo [at]


2015-01-22 19:12

reporter   ~0007714

Hi alfredo,

how can i get the beta? Just by writing you an email or how does is work? Just tried to find the "new" beta on your site and only found the "old" one from 2014, so i would appreciate further info on how to get my fingers on it :)

Thanks in Afvance


2015-01-22 19:47

manager   ~0007716

I published it on the website 20 minutes after you visited it :-)
