0000502: HD1 not available in S.M.A.R.T. panel while correctly detected - Almico's Bug Tracker

ID	Project	Category	View Status	Date Submitted	Last Update

0000502	SpeedFan	S.M.A.R.T.	public	2006-03-12 09:59	2008-05-11 13:11

Reporter	vanex	Assigned To	alfredo
Priority	normal	Severity	major	Reproducibility	always
Status	closed	Resolution	duplicate
Platform	Athlon XP 2400+	OS	Windows XP	OS Version	SP2
Product Version	4.28

Summary	0000502: HD1 not available in S.M.A.R.T. panel while correctly detected

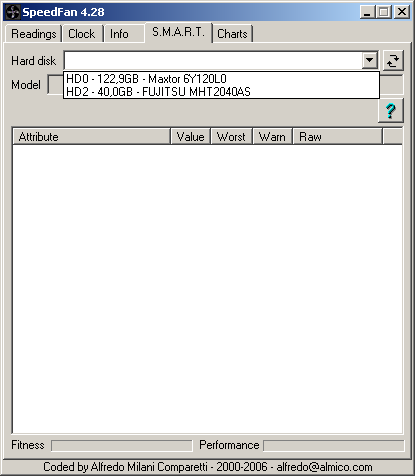

Description	Win9x:NO 64Bit:NO GiveIO:YES SpeedFan:YES I/O properly initialized Linked ISA BUS at $0290 Linked nVidia nForce2 SMBUS at $5000 Linked nVidia nForce2 SMBUS at $5100 Found nVidia GeForce4 Ti 4200 with AGP 8X Linked nVidiaI2C0 SMBUS at $3D403E3F Linked nVidiaI2C1 SMBUS at $3D403637 Linked nVidiaI2C2 SMBUS at $3D405051 Scanning ISA BUS at $0290... Winbond W83627HF (ID=$21) found on ISA at $290 SuperIO Chip=Winbond W83627HF Scanning nForce2 SMBus at $5000... LM75 found on SMBus at $4E Scanning nForce2 SMBus at $5100... Scanning I2CNVidia SMBus at $3D403E3F... Scanning I2CNVidia SMBus at $3D403637... Scanning I2CNVidia SMBus at $3D405051... SMART Enabled for drive 0 Found Maxtor 6Y120L0 (122,9GB) SMART Enabled for drive 1 Found Maxtor 6Y120L0 (122,9GB) SMART Enabled for drive 2 Found FUJITSU MHT2040AS (40,0GB) Found ACPI temperature (42,5C) End of detection Drive 1 does not appear in the S.M.A.R.T. panel (check screenshot) drive 0 AND drive 1 are connected to a siliconimage 0680 PCI RAID controller, RAID is not active (when active the raid-set is recognized as SCSI)
Tags	No tags attached.

Motherboard Model
Video Card Model

2006-03-12 09:59	screenshot.png (10,664 bytes) screenshot.png (10,664 bytes)

2006-03-15 22:06	screenshot2.png (12,841 bytes) screenshot2.png (12,841 bytes)

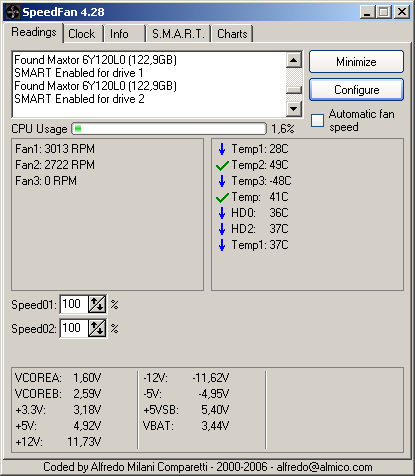

vanex 2006-03-15 22:09 reporter ~0001584	in the "Readings" panel HD1 is not shown, check screenshot2.png

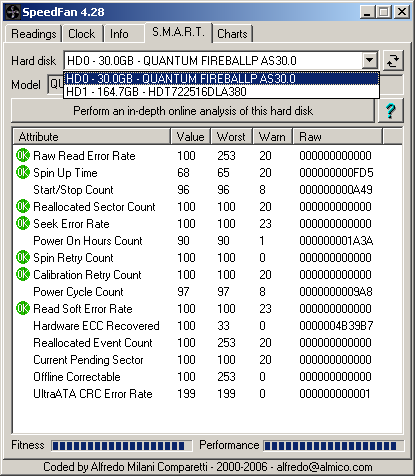

BenChe 2006-05-31 01:21 reporter ~0001695	The same with me : Win9x:NO 64Bit:NO GiveIO:YES SpeedFan:YES I/O properly initialized Linked ISA BUS at $0290 Linked VIA VT8237 SMBUS at $5000 Scanning ISA BUS at $0290... IT8712F/IT8705F found on ISA at $290 SuperIO Chip=IT8705F Scanning VIA SMBus at $5000... SMART Enabled for drive 0 Found QUANTUM FIREBALLP AS30.0 (30.0GB) SMART Enabled for drive 1 Found HDT722516DLA380 (164.7GB) SMART Enabled for drive 2 Found HDT722516DLA380 (250.1GB) End of detection Error loading event --> CfgVersion=01.0001 EventsVersion=01.0001 Loaded 0 events drive 0 : IDE 30 Go drive 1 : SATA 160 Go powered with SATA plug drive 2 : SATA 250 Go powered with "normal" plug (same as IDE drive) The 250 GB is a new hard drive, I just added. I formatted it, and it is working good. See capture-1.png

2006-05-31 01:21	Capture-1.png (13,289 bytes) Capture-1.png (13,289 bytes)

Date Modified	Username	Field	Change
2006-03-12 09:59	vanex	New Issue
2006-03-12 09:59	vanex	File Added: screenshot.png
2006-03-15 22:06	vanex	File Added: screenshot2.png
2006-03-15 22:09	vanex	Note Added: 0001584
2006-05-31 01:21	BenChe	Note Added: 0001695
2006-05-31 01:21	BenChe	File Added: Capture-1.png
2006-06-02 10:17	alfredo	Relationship added	duplicate of 0000570
2006-06-02 10:17	alfredo	Status	assigned => closed
2006-06-02 10:17	alfredo	Resolution	open => duplicate
2008-05-11 13:11	alfredo	Relationship added	duplicate of 0000844
