What about SpeedFan 4.32? |
|
2007-03-08 17:10
|
|
|

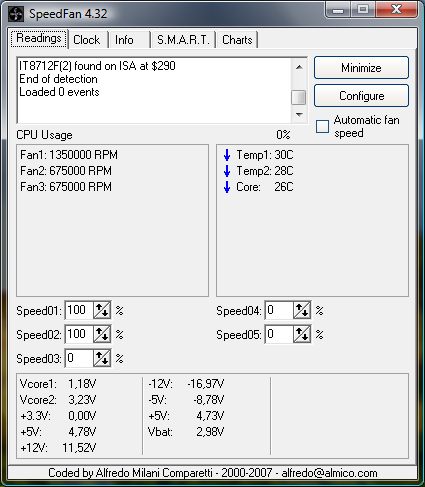

Excuse my terrible English, I'm from Russia. Unfortunately, SpeedFan 4.32 (on Windows Vista Home Premium) detects IT8716F on my ASUS M2N-E as IT8712F too. Only 3 FAN speeds are shown (see attached screenshot), but their values are very big - FAN1 = 132500 rpm, FAN2 & FAN3 = 675000 (BIOS monitors 6 fan speeds). Voltages detected are incorrect, but CPU & mobo temperatures seems to be correct. Month ago I tried to use SpeedFan 4.31 on Windows XP Pro SP2 and experienced the absolutely same problem. |
|
|
:-( The same occurs whit SpeedFan 4.32. Only 3 of 6 fans detected and the numbers are stuck at 1350000 rpm's. Only one core temp is show (the second one). It seems that VCore2 correspond to 3.3 volts line. (3.3 shows zero actually) |
|
|
Same issues occur with Asus M2N-SLI motherboard (nForce 570SLI chipset, same IT8716F sensor) Here's the datasheet for this sensor chip: www.iteusa.com/product_info/file/pc/IT8716F_V0.3.zip Product page: www.iteusa.com/product_info/PC/Brief-IT8716_2.asp Lavalys Everest reports 2 sensor chips: ITE IT8716F (on ISA 0290h) and Analog Devices ADT7475 (on SMBus 2Eh) for this motherboard. |
|
|
Hi Alfredo! SpeedFan 4.32 does not see all my fans in my system and when it does detect a few it reports the wrong speed. Modifying the fan div by 20 is still not even close enough to the real speed. Please help! /Tal Details: I built a system using the Asus M2N-SLI Deluxe motherboard (Nvidia 570 chipset), with an AMD AM2 X2 4600+ cpu, 3 hard drives and a Asus 7600GS (silent) graphics card. I have 4 fans installed: 2 Antec Tri-Speed 80MM fans, and 1 Nexus 92 MM blowing across my hard drives, and my cpu fan - a ThermalTake 92? MM fan. The motherboard is configured as follows: Enable Q-Fan (dynamic fan speeds) for both the cpu and chassis fans. The profile is setup for: "Optimal" settings for both cpu and chassis fans (other options include silent and performance). Win9x:NO 64Bit:NO GiveIO:YES SpeedFan:YES I/O properly initialized Linked ISA BUS at $0290 Scanning ISA BUS at $0290... check 1 check 2 check 3 check 4 IT8712F(2) check : 90 FF 12 FF IT8712F(2) found on ISA at $290 SMART Enabled for drive 0 Found WDC WD5000KS-00MNB0 (500.1GB) SMART Enabled for drive 1 Found WDC WD5000KS-00MNB0 (500.1GB) SMART Enabled for drive 2 Found WDC WD5000KS-00MNB0 (500.1GB) Found ACPI temperature (40.0C) End of detection Loaded 0 events |
|
|
Installed Everest Hardware Monitoring Software Sensor Type ITE IT8716F + Analog Devices ADT7475 (ISA 0290h, SMBus 2Eh) Is being detected in Speedfan as IT8712F rather than 16F. Any way to force the detection as 16F? |
|
2007-10-04 19:56
|

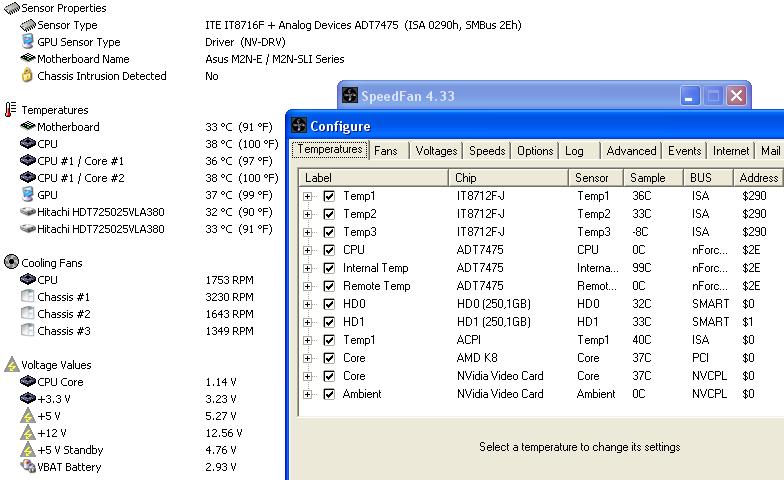

Temps Everest vs SpeedFan Screenshot.JPG (79,094 bytes) |
|
2007-10-04 19:58
|

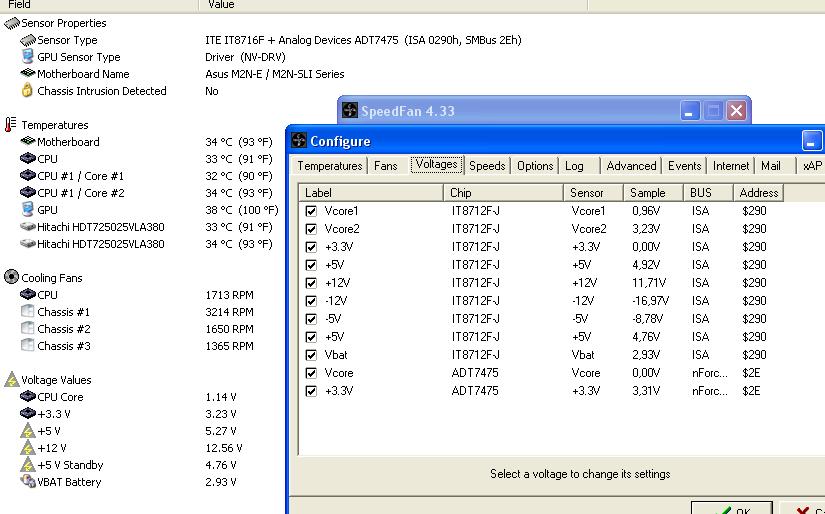

Voltages Everest vs SpeedFan Screenshot.JPG (82,698 bytes) |
|
|
Added two screenshot comparing SpeedFan 4.33 final with Everest. Speedfan still detects IT8716F as IT8712F and other values appears with extrange numbers.... |
|
|
I will read the datasheet again to see if voltage circuitry has changed. SpeedFan 4.33 proeprly detects IT87xxF chips. Consider that the hardware monitor part of those chips is shared between different chips. SpeedFan internally knows the SuperIO chip model, but for its task it needs to know the core revision of the hardware monitor subsystem. |
|
|
Just that you know... I have same issues Incorrect voltages. After I stopped CPU and other fans (Smart Guardian -> ON/OFF mode), I cant go back to Smart guardian mode, Fans wont start My old motherboard (M2N-E SLI) video card (ASUS Nvidia GeForce 7600GT ) detected only one temperature sensor (+Ambient), now on (m2n-e) detects tow (+Ambient) |
|
