0000035: Don't detect drives on VIA 6410 IDE RAID controller

ID	Project	Category	View Status	Date Submitted	Last Update

0000035	SpeedFan	S.M.A.R.T.	public	2004-07-12 11:37	2018-08-14 04:40

Reporter	abzac	Assigned To	alfredo
Priority	normal	Severity	trivial	Reproducibility	always
Status	closed	Resolution	fixed
Platform	ASUS P4P800 Deluxe	OS	Windows	OS Version	XP SP1
Product Version	4.13

Summary	0000035: Don't detect drives on VIA 6410 IDE RAID controller
Description	Cool programm, but i found next bug. SpeedFan don't detect all my IDE drivers. My Hard disk intallation: Intel onboard IDE: PM - DVD-Drive PS - none SM - ST3120026A [detected] SS - ST3120022A [detected] VIA 6410 onboard IDE/RAID: PM - ST360015A [not detectd]* PS - ST360015A [not detectd]* SM - none SS - none * - drivers on VIA, not use in RIAD mode, it's simple IDE drivers
Additional Information	I/O properly initialized !!!Exception in reading CPU INFO at startup (2)!!! Linked ISA BUS at $0290 Linked Intel 82801EB ICH5 SMBUS at $0400 Scanning ISA BUS at $0290... Winbond W83627THF (ID=$90) found on ISA at $290 Scanning Intel SMBus at $0400... Winbond W83791D (PLEASE REPORT) (ID=$72) found on SMBus at $2F LM75 found on SMBus at $48 LM75 found on SMBus at $49 SMART Enabled for drive 0 Found ST3120026A (120,0GB) SMART Enabled for drive 1 Found ST3120022A (120,0GB) SMART Enabled for drive 2 SMART Enabled for drive 3 End of detection CLOCK GENERATOR set to ICS 952607
Tags	No tags attached.

Motherboard Model	msi x370 gaming pro carbon
Video Card Model	ATI RADEON 9000PRO

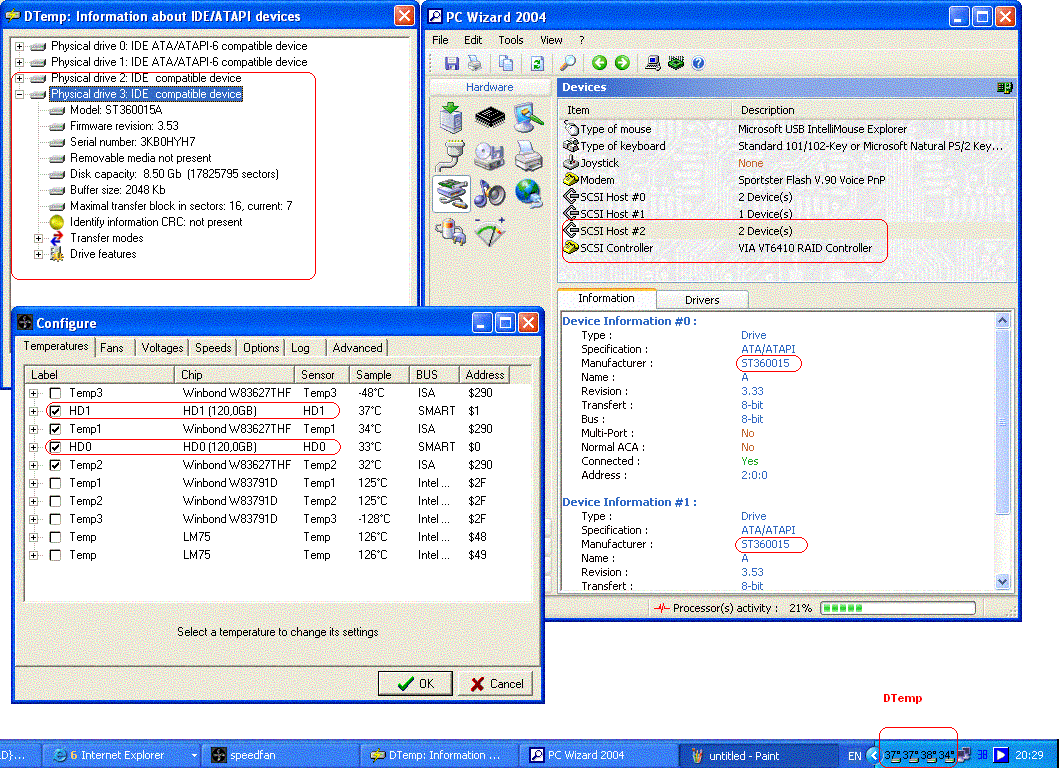

2004-07-12 11:37	noraids.gif (182,403 bytes) noraids.gif (182,403 bytes)

alfredo 2004-07-12 13:13 manager ~0000120	Drive 2 and 3 are detected, but no info could be get from them about their SMART attributes. My guess is that VIA driver is not properly passing the IDE commands required to get SMART data on to the drives connected to it. You might try some other SMART utilities and let me know if you can get any result from them.

abzac 2004-07-13 02:47 reporter ~0000123	ok, hdd detected, but other utilities can get temp info for this HDD, please look at picture included in bug report. DTemp can get temp for all disks - look on taskpanel on picture and you found 4 temp indicators, also other tool (it seems "PC WIZARD 2004") can do it.

alfredo 2004-07-13 10:38 manager ~0000124	I just sent an email to you :-)

abzac 2004-07-13 10:58 reporter ~0000125	check email ;-)

abzac 2004-07-13 11:08 reporter ~0000126	I just run online SeaTools and found this message: Run: 13.07.2004 20:06:38 Primary IDE Channel : ST3120026A Model: ST3120026A Serial Number: 3JT1S8QT Capacity: 120.03 GB Status: No S.M.A.R.T. thresholds exceeded. Primary IDE Channel : ST3120022A Model: ST3120022A Serial Number: 3JT04VBD Capacity: 120.03 GB Status: No S.M.A.R.T. thresholds exceeded. VIA VT6410 RAID Controller : ST360015 A SCSI Disk Device Model: ST360015 A SCSI Disk Device Serial Number: 3KC0F3MR Capacity: 60.02 GB Status: SMART self-test is not supported for this drive. This may be due to a limitation in the Windows driver for the controller that the drive is attached to or the drive may not support the SMART self-test. In either case, this is not a failure of the drive. VIA VT6410 RAID Controller : ST360015 A SCSI Disk Device Model: ST360015 A SCSI Disk Device Serial Number: 3KB0HYH7 Capacity: 60.02 GB Status: SMART self-test is not supported for this drive. This may be due to a limitation in the Windows driver for the controller that the drive is attached to or the drive may not support the SMART self-test. In either case, this is not a failure of the drive.

alfredo 2004-07-13 11:36 manager ~0000127	I sent a beta to you. Did it reach you or was it blocked somewhere because of the ZIP attachment? :-)

abzac 2004-07-13 12:08 reporter ~0000128	I not receive you beta, it's strange because usually I got zipped mails. Can you send mail url for downloading?

alfredo 2004-07-13 12:10 manager ~0000129	I sent an URL to you a few minutes ago. You did not receive my email because "message size 1256274 exceeds size limit 1048576 of server"

2004-07-13 12:28	report.txt (54,460 bytes) SpeedFan version : SpeedFan 4.14 beta 11 Motherboard model : ASUS P4P800 Deluxe *************************** BIOS CopyRight : A M I - 2000423BIOS Date: 02/23/04 12:18:46 Ver: 08.00.09BIOS Date: 02/23/04 12:18:46 Ver: 08.00.09 BIOS Date : 02/23/04 BIOS Extended Info : BIOS Name : AT/AT COMPATIBLE Windows NT Multiprocessor Free version 5.1.2600 2 processor(s) Intel Celeron Northwood-128 (nD1) (0.13 �m) family 15 model 2 stepping 9 brand 9 1 MHz (0KB level 1 - 0KB level 2) Running at 1 MHz (1000) I Agree to receive beta versions : ON ************************* Winbond W83627THF on ISA at $290 Temp1 : 34,0 min=34,0 max=34,0 mean=34,0 Winbond W83627THF on ISA at $290 Temp2 : 32,0 min=31,5 max=34,5 mean=32,3 Winbond W83627THF on ISA at $290 Temp3 : -48,0 min=-48,0 max=-48,0 mean=-48,0 Winbond W83627THF on ISA at $290 Fan1 : 3140 min=3096 max=3140 mean=3118 Winbond W83627THF on ISA at $290 Fan2 : 2744 min=2722 max=2766 mean=2740 Winbond W83627THF on ISA at $290 Fan3 : 1430 min=1418 max=1430 mean=1426 Winbond W83627THF on ISA at $290 Pwm1 : 100% min=100% max=100% mean=100% Winbond W83627THF on ISA at $290 Pwm2 : 100% min=100% max=100% mean=100% Winbond W83627THF on ISA at $290 Vcore : 1,55 min=1,54 max=1,60 mean=1,58 Winbond W83627THF on ISA at $290 +12V : 11,92 min=11,73 max=12,04 mean=11,93 Winbond W83627THF on ISA at $290 3.3V : 3,38 min=3,34 max=3,39 mean=3,37 Winbond W83627THF on ISA at $290 Vcc : 5,07 min=5,04 max=5,09 mean=5,06 Winbond W83627THF on ISA at $290 Vin2 : 0,00 min=0,00 max=0,00 mean=0,00 Winbond W83627THF on ISA at $290 5Vsb : 5,04 min=5,01 max=5,07 mean=5,04 Winbond W83627THF on ISA at $290 Vbat : 0,00 min=0,00 max=0,00 mean=0,00 [$00]=$01 [$01]=$FF [$02]=$01 [$03]=$FF [$04]=$00 [$05]=$00 [$06]=$00 [$07]=$00 [$08]=$01 [$09]=$01 [$0A]=$01 [$0B]=$01 [$0C]=$3C [$0D]=$3C [$0E]=$0A [$0F]=$0A [$10]=$01 [$11]=$FF [$12]=$00 [$13]=$00 [$14]=$00 [$15]=$01 [$16]=$01 [$17]=$3C [$18]=$42 [$19]=$00 [$1A]=$FF [$1B]=$FF [$1C]=$24 [$1D]=$32 [$1E]=$00 [$1F]=$E2 [$20]=$61 [$21]=$C4 [$22]=$D3 [$23]=$BE [$24]=$FF [$25]=$3B [$26]=$A1 [$27]=$22 [$28]=$D7 [$29]=$7B [$2A]=$76 [$2B]=$F0 [$2C]=$00 [$2D]=$0B [$2E]=$68 [$2F]=$BE [$30]=$28 [$31]=$5D [$32]=$7A [$33]=$C8 [$34]=$68 [$35]=$0A [$36]=$01 [$37]=$ED [$38]=$F0 [$39]=$5C [$3A]=$85 [$3B]=$9A [$3C]=$00 [$3D]=$96 [$3E]=$00 [$3F]=$00 [$40]=$01 [$41]=$00 [$42]=$00 [$43]=$FE [$44]=$FF [$45]=$00 [$46]=$00 [$47]=$9F [$48]=$2D [$49]=$03 [$4A]=$01 [$4B]=$C4 [$4C]=$18 [$4D]=$95 [$4E]=$00 [$4F]=$A3 [$50]=$FF [$51]=$FF [$52]=$80 [$53]=$FF [$54]=$FF [$55]=$FF [$56]=$00 [$57]=$80 [$58]=$90 [$59]=$20 [$5A]=$FF [$5B]=$FF [$5C]=$11 [$5D]=$04 [$5E]=$FF [$5F]=$05 [$60]=$61 [$61]=$C4 [$62]=$D3 [$63]=$BE [$64]=$FF [$65]=$3B [$66]=$A1 [$67]=$22 [$68]=$D7 [$69]=$7B [$6A]=$76 [$6B]=$F0 [$6C]=$00 [$6D]=$0B [$6E]=$68 [$6F]=$BE [$70]=$28 [$71]=$5D [$72]=$7A [$73]=$C8 [$74]=$68 [$75]=$0A [$76]=$01 [$77]=$ED [$78]=$F0 [$79]=$5C [$7A]=$85 [$7B]=$9A [$7C]=$00 [$7D]=$96 [$7E]=$00 [$7F]=$00 [$80]=$01 [$81]=$FF [$82]=$01 [$83]=$FF [$84]=$00 [$85]=$00 [$86]=$00 [$87]=$00 [$88]=$01 [$89]=$01 [$8A]=$01 [$8B]=$01 [$8C]=$3C [$8D]=$3C [$8E]=$0A [$8F]=$0A [$90]=$01 [$91]=$FF [$92]=$00 [$93]=$00 [$94]=$00 [$95]=$01 [$96]=$01 [$97]=$3C [$98]=$42 [$99]=$00 [$9A]=$FF [$9B]=$FF [$9C]=$24 [$9D]=$32 [$9E]=$00 [$9F]=$E2 [$A0]=$61 [$A1]=$C4 [$A2]=$D3 [$A3]=$BE [$A4]=$FF [$A5]=$3B [$A6]=$A1 [$A7]=$22 [$A8]=$D7 [$A9]=$7B [$AA]=$76 [$AB]=$F0 [$AC]=$00 [$AD]=$0B [$AE]=$68 [$AF]=$BE [$B0]=$28 [$B1]=$5D [$B2]=$7A [$B3]=$C8 [$B4]=$68 [$B5]=$0A [$B6]=$01 [$B7]=$ED [$B8]=$F0 [$B9]=$5C [$BA]=$85 [$BB]=$9A [$BC]=$00 [$BD]=$96 [$BE]=$00 [$BF]=$00 [$C0]=$01 [$C1]=$00 [$C2]=$00 [$C3]=$FE [$C4]=$FF [$C5]=$00 [$C6]=$00 [$C7]=$9F [$C8]=$2D [$C9]=$03 [$CA]=$01 [$CB]=$C4 [$CC]=$18 [$CD]=$95 [$CE]=$00 [$CF]=$A3 [$D0]=$FF [$D1]=$FF [$D2]=$80 [$D3]=$FF [$D4]=$FF [$D5]=$FF [$D6]=$00 [$D7]=$80 [$D8]=$90 [$D9]=$20 [$DA]=$FF [$DB]=$FF [$DC]=$11 [$DD]=$04 [$DE]=$FF [$DF]=$05 [$E0]=$61 [$E1]=$C4 [$E2]=$D3 [$E3]=$BE [$E4]=$FF [$E5]=$3B [$E6]=$A1 [$E7]=$22 [$E8]=$D7 [$E9]=$7B [$EA]=$76 [$EB]=$F0 [$EC]=$00 [$ED]=$0B [$EE]=$68 [$EF]=$BE [$F0]=$28 [$F1]=$5D [$F2]=$7A [$F3]=$C8 [$F4]=$68 [$F5]=$0A [$F6]=$01 [$F7]=$ED [$F8]=$F0 [$F9]=$5C [$FA]=$85 [$FB]=$9A [$FC]=$00 [$FD]=$96 [$FE]=$00 [$FF]=$00 Bank 0 --> [$50]=$FF [$51]=$FF [$52]=$80 [$53]=$FF [$54]=$FF [$55]=$FF [$56]=$00 [$57]=$80 [$58]=$90 [$59]=$20 [$5A]=$FF [$5B]=$FF [$5C]=$11 [$5D]=$04 [$5E]=$FF [$5F]=$05 Bank 1 --> [$50]=$1F [$51]=$80 [$52]=$00 [$53]=$4B [$54]=$00 [$55]=$50 [$56]=$00 [$57]=$FF [$58]=$FF [$59]=$FF [$5A]=$FF [$5B]=$FF [$5C]=$FF [$5D]=$FF [$5E]=$FF [$5F]=$FF Bank 2 --> [$50]=$D0 [$51]=$00 [$52]=$00 [$53]=$4B [$54]=$00 [$55]=$50 [$56]=$00 [$57]=$FF [$58]=$FF [$59]=$FF [$5A]=$FF [$5B]=$FF [$5C]=$FF [$5D]=$FF [$5E]=$FF [$5F]=$FF Bank 3 --> [$50]=$FF [$51]=$FF [$52]=$FF [$53]=$FF [$54]=$FF [$55]=$FF [$56]=$FF [$57]=$FF [$58]=$FF [$59]=$FF [$5A]=$FF [$5B]=$FF [$5C]=$FF [$5D]=$FF [$5E]=$FF [$5F]=$FF Bank 4 --> [$50]=$00 [$51]=$13 [$52]=$00 [$53]=$00 [$54]=$FE [$55]=$11 [$56]=$00 [$57]=$00 [$58]=$1A [$59]=$CE [$5A]=$01 [$5B]=$03 [$5C]=$11 [$5D]=$00 [$5E]=$FF [$5F]=$FF Bank 5 --> [$50]=$BD [$51]=$03 [$52]=$00 [$53]=$00 [$54]=$10 [$55]=$06 [$56]=$DA [$57]=$8D [$58]=$00 [$59]=$00 [$5A]=$00 [$5B]=$00 [$5C]=$00 [$5D]=$00 [$5E]=$00 [$5F]=$00 Bank 6 --> [$50]=$C8 [$51]=$FD [$52]=$2C [$53]=$5A [$54]=$32 [$55]=$2F [$56]=$2E [$57]=$2D [$58]=$C8 [$59]=$FD [$5A]=$2C [$5B]=$5A [$5C]=$32 [$5D]=$2F [$5E]=$2E [$5F]=$2D Bank 7 --> [$50]=$FF [$51]=$FF [$52]=$FF [$53]=$FF [$54]=$FF [$55]=$FF [$56]=$FF [$57]=$FF [$58]=$FF [$59]=$FF [$5A]=$FF [$5B]=$FF [$5C]=$FF [$5D]=$FF [$5E]=$FF [$5F]=$FF Winbond W83791D on Intel SMBus at $2F Temp1 : 125,0 min=125,0 max=125,0 mean=125,0 Winbond W83791D on Intel SMBus at $2F Temp2 : 125,0 min=125,0 max=125,0 mean=125,0 Winbond W83791D on Intel SMBus at $2F Temp3 : -127,5 min=-127,5 max=-127,5 mean=-127,5 Winbond W83791D on Intel SMBus at $2F Fan1 : 0 min=0 max=0 mean=0 Winbond W83791D on Intel SMBus at $2F Fan2 : 0 min=0 max=0 mean=0 Winbond W83791D on Intel SMBus at $2F Fan3 : 0 min=0 max=0 mean=0 Winbond W83791D on Intel SMBus at $2F Pwm1 : 100% min=100% max=100% mean=100% Winbond W83791D on Intel SMBus at $2F Pwm2 : 100% min=100% max=100% mean=100% Winbond W83791D on Intel SMBus at $2F Pwm3 : 100% min=100% max=100% mean=100% Winbond W83791D on Intel SMBus at $2F Pwm4 : 100% min=100% max=100% mean=100% Winbond W83791D on Intel SMBus at $2F Pwm5 : 100% min=100% max=100% mean=100% [$00]=$00 [$01]=$00 [$02]=$00 [$03]=$00 [$04]=$00 [$05]=$00 [$06]=$00 [$07]=$00 [$08]=$00 [$09]=$8A [$0A]=$00 [$0B]=$00 [$0C]=$01 [$0D]=$00 [$0E]=$00 [$0F]=$FF [$10]=$00 [$11]=$00 [$12]=$7F [$13]=$00 [$14]=$00 [$15]=$10 [$16]=$00 [$17]=$00 [$18]=$00 [$19]=$00 [$1A]=$00 [$1B]=$00 [$1C]=$00 [$1D]=$00 [$1E]=$00 [$1F]=$80 [$20]=$10 [$21]=$05 [$22]=$4D [$23]=$BE [$24]=$05 [$25]=$05 [$26]=$05 [$27]=$7D [$28]=$FF [$29]=$FF [$2A]=$FF [$2B]=$7E [$2C]=$68 [$2D]=$00 [$2E]=$00 [$2F]=$ED [$30]=$B0 [$31]=$31 [$32]=$62 [$33]=$B3 [$34]=$B9 [$35]=$C4 [$36]=$6F [$37]=$AC [$38]=$A2 [$39]=$32 [$3A]=$24 [$3B]=$23 [$3C]=$50 [$3D]=$8C [$3E]=$FF [$3F]=$FF [$40]=$01 [$41]=$FF [$42]=$6F [$43]=$00 [$44]=$00 [$45]=$00 [$46]=$00 [$47]=$50 [$48]=$2F [$49]=$10 [$4A]=$01 [$4B]=$44 [$4C]=$01 [$4D]=$95 [$4E]=$00 [$4F]=$A3 [$50]=$FF [$51]=$FF [$52]=$FF [$53]=$FF [$54]=$FF [$55]=$FF [$56]=$00 [$57]=$80 [$58]=$72 [$59]=$70 [$5A]=$FF [$5B]=$00 [$5C]=$00 [$5D]=$00 [$5E]=$05 [$5F]=$FF [$60]=$FF [$61]=$FF [$62]=$FF [$63]=$FF [$64]=$FF [$65]=$FF [$66]=$FF [$67]=$FF [$68]=$FF [$69]=$FF [$6A]=$FF [$6B]=$FF [$6C]=$FF [$6D]=$FF [$6E]=$FF [$6F]=$FF [$70]=$FF [$71]=$FF [$72]=$FF [$73]=$FF [$74]=$FF [$75]=$FF [$76]=$FF [$77]=$FF [$78]=$FF [$79]=$FF [$7A]=$FF [$7B]=$FF [$7C]=$FF [$7D]=$FF [$7E]=$FF [$7F]=$FF [$80]=$01 [$81]=$FF [$82]=$01 [$83]=$FF [$84]=$00 [$85]=$00 [$86]=$00 [$87]=$00 [$88]=$01 [$89]=$01 [$8A]=$01 [$8B]=$01 [$8C]=$3C [$8D]=$3C [$8E]=$0A [$8F]=$0A [$90]=$00 [$91]=$00 [$92]=$00 [$93]=$01 [$94]=$FF [$95]=$00 [$96]=$00 [$97]=$00 [$98]=$01 [$99]=$01 [$9A]=$3C [$9B]=$18 [$9C]=$00 [$9D]=$00 [$9E]=$01 [$9F]=$01 [$A0]=$FF [$A1]=$FF [$A2]=$FF [$A3]=$00 [$A4]=$00 [$A5]=$00 [$A6]=$00 [$A7]=$00 [$A8]=$1A [$A9]=$FF [$AA]=$6F [$AB]=$18 [$AC]=$00 [$AD]=$FF [$AE]=$FF [$AF]=$FF [$B0]=$BB [$B1]=$9A [$B2]=$05 [$B3]=$FF [$B4]=$00 [$B5]=$38 [$B6]=$76 [$B7]=$B2 [$B8]=$95 [$B9]=$38 [$BA]=$FF [$BB]=$FF [$BC]=$00 [$BD]=$91 [$BE]=$FF [$BF]=$FF [$C0]=$7D [$C1]=$80 [$C2]=$00 [$C3]=$4B [$C4]=$00 [$C5]=$50 [$C6]=$00 [$C7]=$FF [$C8]=$7D [$C9]=$80 [$CA]=$00 [$CB]=$4B [$CC]=$00 [$CD]=$50 [$CE]=$00 [$CF]=$FF [$D0]=$FF [$D1]=$FF [$D2]=$FF [$D3]=$FF [$D4]=$FF [$D5]=$FF [$D6]=$FF [$D7]=$FF [$D8]=$FF [$D9]=$FF [$DA]=$FF [$DB]=$FF [$DC]=$FF [$DD]=$FF [$DE]=$FF [$DF]=$FF [$E0]=$FF [$E1]=$FF [$E2]=$FF [$E3]=$FF [$E4]=$FF [$E5]=$FF [$E6]=$FF [$E7]=$FF [$E8]=$FF [$E9]=$FF [$EA]=$FF [$EB]=$FF [$EC]=$FF [$ED]=$FF [$EE]=$FF [$EF]=$FF [$F0]=$FF [$F1]=$FF [$F2]=$00 [$F3]=$FF [$F4]=$00 [$F5]=$01 [$F6]=$00 [$F7]=$FF [$F8]=$FF [$F9]=$02 [$FA]=$FF [$FB]=$00 [$FC]=$00 [$FD]=$0F [$FE]=$FF [$FF]=$1D Bank 0 --> [$50]=$FF [$51]=$FF [$52]=$FF [$53]=$FF [$54]=$FF [$55]=$FF [$56]=$00 [$57]=$80 [$58]=$72 [$59]=$70 [$5A]=$FF [$5B]=$00 [$5C]=$00 [$5D]=$00 [$5E]=$05 [$5F]=$FF Bank 1 --> [$50]=$03 [$51]=$07 [$52]=$07 [$53]=$07 [$54]=$07 [$55]=$07 [$56]=$07 [$57]=$07 [$58]=$07 [$59]=$03 [$5A]=$07 [$5B]=$03 [$5C]=$03 [$5D]=$07 [$5E]=$03 [$5F]=$03 Bank 2 --> [$50]=$FF [$51]=$FF [$52]=$FF [$53]=$FF [$54]=$FF [$55]=$FF [$56]=$FF [$57]=$FF [$58]=$FF [$59]=$FF [$5A]=$FF [$5B]=$FF [$5C]=$FF [$5D]=$FF [$5E]=$FF [$5F]=$FF Bank 3 --> [$50]=$FF [$51]=$FF [$52]=$FF [$53]=$FF [$54]=$FF [$55]=$FF [$56]=$FF [$57]=$FF [$58]=$FF [$59]=$FF [$5A]=$FF [$5B]=$FF [$5C]=$FF [$5D]=$FF [$5E]=$FF [$5F]=$FF Bank 4 --> [$50]=$FF [$51]=$FF [$52]=$FF [$53]=$FF [$54]=$FF [$55]=$FF [$56]=$FF [$57]=$FF [$58]=$FF [$59]=$FF [$5A]=$FF [$5B]=$FF [$5C]=$FF [$5D]=$FF [$5E]=$FF [$5F]=$FF Bank 5 --> [$50]=$FF [$51]=$FF [$52]=$FF [$53]=$FF [$54]=$FF [$55]=$FF [$56]=$FF [$57]=$FF [$58]=$FF [$59]=$FF [$5A]=$FF [$5B]=$FF [$5C]=$FF [$5D]=$FF [$5E]=$FF [$5F]=$FF Bank 6 --> [$50]=$FF [$51]=$FF [$52]=$FF [$53]=$FF [$54]=$FF [$55]=$FF [$56]=$FF [$57]=$FF [$58]=$FF [$59]=$FF [$5A]=$FF [$5B]=$FF [$5C]=$FF [$5D]=$FF [$5E]=$FF [$5F]=$FF Bank 7 --> [$50]=$FF [$51]=$FF [$52]=$FF [$53]=$FF [$54]=$FF [$55]=$FF [$56]=$FF [$57]=$FF [$58]=$FF [$59]=$FF [$5A]=$FF [$5B]=$FF [$5C]=$FF [$5D]=$FF [$5E]=$FF [$5F]=$FF LM75 on Intel SMBus at $48 Temp : 0,0 min=9,99999999999999966E89 max=-9,99999999999999966E89 mean=0,0 LM75 on Intel SMBus at $49 Temp : 0,0 min=9,99999999999999966E89 max=-9,99999999999999966E89 mean=0,0 HD0 (120,0GB) on SMART at $0 HD0 : 34,0 min=34,0 max=34,0 mean=34,0 ST3120026A (drive 0) : fitness=43% performance=100% HD1 (120,0GB) on SMART at $1 HD1 : 39,0 min=39,0 max=39,0 mean=39,0 ST3120022A (drive 1) : fitness=43% performance=100% ************************* Temp3 --> active=OFF chip=0 index=3 wanted=40 warning=50 offset=0 InTray=OFF Used pwms=1 2 3 4 5 6 7 HD1 --> active=ON chip=5 index=1 wanted=40 warning=50 offset=0 InTray=ON Used pwms=1 2 3 4 5 6 7 Temp1 --> active=ON chip=0 index=1 wanted=40 warning=50 offset=0 InTray=OFF Used pwms=1 2 3 4 5 6 7 HD0 --> active=ON chip=4 index=1 wanted=40 warning=50 offset=0 InTray=OFF Used pwms=1 2 3 4 5 6 7 Temp2 --> active=ON chip=0 index=2 wanted=40 warning=50 offset=0 InTray=OFF Used pwms=1 2 3 4 5 6 7 Temp1 --> active=OFF chip=1 index=1 wanted=40 warning=50 offset=0 InTray=OFF Used pwms=1 2 3 4 5 6 7 Temp2 --> active=OFF chip=1 index=2 wanted=40 warning=50 offset=0 InTray=OFF Used pwms=1 2 3 4 5 6 7 Temp3 --> active=OFF chip=1 index=3 wanted=40 warning=50 offset=0 InTray=OFF Used pwms=1 2 3 4 5 6 7 Temp --> active=OFF chip=2 index=1 wanted=40 warning=50 offset=0 InTray=OFF Used pwms=1 2 3 4 5 6 7 Temp --> active=OFF chip=3 index=1 wanted=40 warning=50 offset=0 InTray=OFF Used pwms=1 2 3 4 5 6 7 Fan01 --> active=ON chip=0 index=1 Fan02 --> active=ON chip=0 index=2 Fan03 --> active=ON chip=0 index=3 Fan04 --> active=ON chip=1 index=1 Fan05 --> active=ON chip=1 index=2 Fan06 --> active=ON chip=1 index=3 Speed01 --> active=ON chip=0 index=1 min=0 max=100 variate=OFF Speed02 --> active=ON chip=0 index=2 min=0 max=100 variate=OFF Speed03 --> active=ON chip=1 index=1 min=0 max=100 variate=OFF Speed04 --> active=ON chip=1 index=2 min=0 max=100 variate=OFF Speed05 --> active=ON chip=1 index=3 min=0 max=100 variate=OFF Speed06 --> active=ON chip=1 index=4 min=0 max=100 variate=OFF Speed07 --> active=ON chip=1 index=5 min=0 max=100 variate=OFF Vcore --> active=ON chip=0 index=1 +12V --> active=ON chip=0 index=2 3.3V --> active=ON chip=0 index=3 Vcc --> active=ON chip=0 index=4 Vin2 --> active=ON chip=0 index=5 5Vsb --> active=ON chip=0 index=6 Vbat --> active=ON chip=0 index=7 Set Fans to 100% on exit : ON Debug Mode : ON Use ISA : ON Use SMB : ON Scan PCI : ON Scan SMB : ON Slow SMB detection : OFF Detect SuperIO : ON ASUS Card Detect : ON DELL Support : OFF Command line : speedfan.exe Delta Fan Speed : 10 ************************* Chipset : Intel 82801EB ICH5 SMBus Base Address : $0400 SMBus Revision : 00000002 SMBus I/O Enabled : ON ************************* Bus : 00 Device: 00 Function : 00 --> 25708086 Vendor : 8086 Device : 2570 (rev 02) - Intel Corporation 82865G/PE/P, 82848P DRAM Controller / Host-Hub Interface 00: 8086 2570 0006 2090 0002 0600 0000 0000 0008 F800 0000 0000 0000 0000 0000 0000 20: 0000 0000 0000 0000 0000 0000 1043 80F2 0000 0000 00E4 0000 0000 0000 0000 0000 40: 0000 0000 0000 0000 0000 0000 0000 0000 0200 0008 8040 001C 0000 0000 0000 0000 60: 0500 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 80: 0000 0000 0000 0000 0000 0000 0000 0000 1110 1111 3301 0033 0000 0000 0A00 0038 A0: 0002 0030 4217 1F00 0304 0000 0000 0000 0080 0000 0030 0000 4000 0000 1020 0000 C0: 0000 0000 2000 200D 0000 0000 0000 0000 2802 0E04 0D0B 0000 0000 0000 0000 0130 E0: 0000 0000 A009 2106 0200 0000 0000 0000 0000 0000 0002 0000 0F68 0003 0000 0000 Bus : 00 Device: 01 Function : 00 --> 25718086 Vendor : 8086 Device : 2571 (rev 02) - Intel Corporation 82865G/PE/P, 82848P PCI-to-AGP Bridge 00: 8086 2571 0107 00A0 0002 0604 4000 0001 0000 0000 0000 0000 0100 4001 C0C0 22A0 20: FEA0 FEA0 E7F0 F7E0 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0008 40: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 60: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 80: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 A0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 C0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 E0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0F68 0003 0000 0000 Bus : 00 Device: 06 Function : 00 --> 25768086 Vendor : 8086 Device : 2576 (rev 02) - Intel Corporation 82865G/PE/P, 82848P Overflow Configuration 00: 8086 2576 0002 0080 0002 0880 0000 0000 0000 FECF 0000 0000 0000 0000 0000 0000 20: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 40: 6540 0400 0000 0000 0004 0000 0000 0000 0001 0084 0102 0080 0000 0000 0000 0000 60: 0000 0000 0000 0000 0000 0000 0000 0000 0004 0000 0000 0000 0000 0000 0000 0000 80: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0555 0000 0000 0000 0000 0000 0000 A0: 0000 0000 0000 0000 0000 0000 2000 0008 0000 0000 43F0 7DFC 0001 0000 0009 0000 C0: 0000 0000 0024 0000 0000 0000 0000 0000 0000 0000 0000 0000 FFFF FFFF FFFF 3FFF E0: 0000 0000 0000 0000 0EFF 0000 0000 0004 0C00 0002 0000 0000 0F68 0003 FC74 0000 Bus : 00 Device: 29 Function : 00 --> 24D28086 Vendor : 8086 Device : 24D2 (rev 02) - Intel Corporation 82801EB/ER USB UHCI Controller #1 00: 8086 24D2 0005 0280 0002 0C03 0000 0080 0000 0000 0000 0000 0000 0000 0000 0000 20: EF01 0000 0000 0000 0000 0000 1043 80A6 0000 0000 0000 0000 0000 0000 0110 0000 40: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 60: 0010 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 80: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 A0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 C0: 2F00 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 E0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0F66 0004 0000 0000 Bus : 00 Device: 29 Function : 01 --> 24D48086 Vendor : 8086 Device : 24D4 (rev 02) - Intel Corporation 82801EB/ER USB UHCI Controller #2 00: 8086 24D4 0005 0280 0002 0C03 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 20: EF21 0000 0000 0000 0000 0000 1043 80A6 0000 0000 0000 0000 0000 0000 0213 0000 40: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 60: 0010 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 80: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 A0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 C0: 2F00 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 E0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0F66 0004 0000 0000 Bus : 00 Device: 29 Function : 02 --> 24D78086 Vendor : 8086 Device : 24D7 (rev 02) - Intel Corporation 82801EB/ER USB UHCI Controller #3 00: 8086 24D7 0005 0280 0002 0C03 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 20: EF41 0000 0000 0000 0000 0000 1043 80A6 0000 0000 0000 0000 0000 0000 0312 0000 40: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 60: 0010 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 80: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 A0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 C0: 2F00 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 E0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0F66 0004 0000 0000 Bus : 00 Device: 29 Function : 03 --> 24DE8086 Vendor : 8086 Device : 24DE (rev 02) - Intel Corporation 82801EB/ER USB UHCI Controller #4 00: 8086 24DE 0005 0280 0002 0C03 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 20: EF81 0000 0000 0000 0000 0000 1043 80A6 0000 0000 0000 0000 0000 0000 0110 0000 40: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 60: 0010 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 80: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 A0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 C0: 2F00 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 E0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0F66 0004 0000 0000 Bus : 00 Device: 29 Function : 07 --> 24DD8086 Vendor : 8086 Device : 24DD (rev 02) - Intel Corporation 82801EB/ER USB EHCI Controller 00: 8086 24DD 0106 0290 2002 0C03 0000 0000 BC00 FEBF 0000 0000 0000 0000 0000 0000 20: 0000 0000 0000 0000 0000 0000 1043 80A6 0000 0000 0050 0000 0000 0000 0417 0000 40: 0000 0000 0000 0000 0000 0000 0000 0000 5801 C9C2 0000 0000 000A 20A0 0000 0000 60: 2020 01FF 0000 0000 0001 0000 0000 C000 0000 3FCF 0000 0000 0000 0000 0000 0000 80: 0000 0000 0001 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 A0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 C0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 5555 0000 0000 0000 E0: 0000 0000 0000 0000 0000 0000 0000 0000 8000 0000 8388 0040 0F66 0004 1406 0000 Bus : 00 Device: 30 Function : 00 --> 244E8086 Vendor : 8086 Device : 244E (rev C2) - Intel Corporation 82801BA/CA/DB, 6300ESB Hub Interface to PCI Bridge 00: 8086 244E 0107 0080 00C2 0604 0000 0001 0000 0000 0000 0000 0200 4002 D0D0 2280 20: FFF0 0000 FFF0 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0002 40: 2802 7630 0028 0000 0000 0000 0000 0000 6402 0073 0000 0000 0150 0034 0000 0000 60: 0000 0000 0000 0000 0000 0000 0000 0000 0010 0000 0000 0000 0000 0000 0000 0000 80: 0000 00A0 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 A0: 0000 0000 0000 0000 0000 0000 0000 0000 0001 0002 0000 00C0 0000 0000 0000 0000 C0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 E0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0F66 0004 0000 3153 Bus : 00 Device: 31 Function : 00 --> 24D08086 Vendor : 8086 Device : 24D0 (rev 02) - Intel Corporation 82801EB/ER LPC Interface Bridge 00: 8086 24D0 000F 0280 0002 0601 0000 0080 0000 0000 0000 0000 0000 0000 0000 0000 20: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 40: 0801 0000 0010 0000 0000 0000 0000 0000 0000 0000 0000 0000 0481 0000 0010 0000 60: 8B8A 8585 00D0 0000 8080 8B80 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 80: 0000 0000 0000 0000 0000 0000 0000 0000 FCFF 0000 0000 0000 0000 0000 0000 0000 A0: 0220 0000 0001 0000 000D 0000 0300 0000 0000 0000 0000 0000 0000 0000 0000 0000 C0: 0000 0000 0000 0000 0000 0000 0000 0000 2186 0000 0F02 0000 0004 0000 0000 0000 E0: 0000 8000 0000 1408 2233 0011 0000 4567 0000 0044 0004 0000 0F66 1E04 0000 0000 Bus : 00 Device: 31 Function : 01 --> 24DB8086 Vendor : 8086 Device : 24DB (rev 02) - Intel Corporation 82801EB/ER EIDE Controller 00: 8086 24DB 0007 0280 8A02 0101 0000 0000 0001 0000 0001 0000 0001 0000 0001 0000 20: FC01 0000 FC00 FFEF 0000 0000 1043 80A6 0000 0000 0000 0000 0000 0000 0100 0000 40: E377 A303 000B 0000 0007 0211 0000 0000 0000 0000 3030 0000 0000 0000 0000 0000 60: 0008 0000 0000 0000 0008 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 80: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 A0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 C0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 E0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0F66 0004 0000 0000 Bus : 00 Device: 31 Function : 03 --> 24D38086 Vendor : 8086 Device : 24D3 (rev 02) - Intel Corporation 82801EB/ER SMBus Controller 00: 8086 24D3 0001 0280 0002 0C05 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 20: 0401 0000 0000 0000 0000 0000 1043 80A6 0000 0000 0000 0000 0000 0000 020B 0000 40: 0001 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 60: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 80: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 A0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 C0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 E0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0F66 0004 0000 0000 Bus : 00 Device: 31 Function : 05 --> 24D58086 Vendor : 8086 Device : 24D5 (rev 02) - Intel Corporation 82801EB/ER AC'97 Audio Controller 00: 8086 24D5 0007 0290 0002 0401 0000 0000 E801 0000 EE81 0000 B800 FEBF B400 FEBF 20: 0000 0000 0000 0000 0000 0000 1043 80F3 0000 0000 0050 0000 0000 0000 0211 0000 40: 0109 0000 0000 0000 0000 0000 0000 0000 0001 C9C2 0000 0000 0000 0000 0000 0000 60: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 80: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 A0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 C0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 E0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0F66 0004 0000 0000 Bus : 01 Device: 00 Function : 00 --> 49661002 Vendor : 1002 Device : 4966 (rev 01) - ATI Technologies RV250 Radeon 9000/9000 Pro 00: 1002 4966 0187 22B0 0001 0300 FF04 0080 0008 F000 C001 0000 0000 FEAF 0000 0000 20: 0000 0000 0000 0000 0000 0000 1002 0002 0000 FEAC 0058 0000 0000 0000 0110 0008 40: 0000 0000 0000 0000 0000 0000 1002 0002 0001 0602 0000 0000 5002 0020 0217 2F00 60: 0304 1F00 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 80: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 A0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 C0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 E0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 Bus : 01 Device: 00 Function : 01 --> 496E1002 Vendor : 1002 Device : 496E (rev 01) - ATI Technologies RV250 Radeon 9000/9000 Pro - Secondary 00: 1002 496E 0087 02B0 0001 0380 4004 0000 0008 EC00 0000 FEAE 0000 0000 0000 0000 20: 0000 0000 0000 0000 0000 0000 1002 0003 0000 0000 0050 0000 0000 0000 00FF 0008 40: 0000 0000 0000 0000 0000 0000 0000 0000 0001 0602 0000 0000 5002 0020 0217 2F00 60: 0200 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 80: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 A0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 C0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 E0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 Bus : 02 Device: 04 Function : 00 --> 31641106 Vendor : 1106 Device : 3164 (rev 06) - VIA Technologies Inc VT6410 ATA133 RAID Controller 00: 1106 3164 0007 0290 0006 0104 4000 0000 DFE1 0000 DFAD 0000 DFA1 0000 DFA9 0000 20: DF91 0000 0000 0000 0000 0000 1043 80F4 0000 0000 00C0 0000 0000 0000 0117 0000 40: F21B 35C9 2D10 00C0 A8A8 2020 00FF B6B6 0F0F E1E1 0014 0000 A000 0020 0000 0000 60: 0200 0000 0000 0000 0200 0000 0000 0000 0102 0000 0000 0000 0102 0000 0000 0000 80: 5800 022B 0000 0000 5C00 022B 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 A0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 C0: 0001 0002 0000 0000 0000 0000 0000 0000 0006 3164 1043 80F4 0000 0000 0000 0000 E0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 ************************* ISA Dump from address $290 --> <Winbond W83627THF> (ISA at $0290) (No error) 00: 01 FF 01 FF 00 00 00 00 01 01 01 01 3C 3C 0A 0A ............<<.. 10: 01 FF 00 00 00 01 01 3C 42 00 FF FF 24 32 00 E0 .......<B...$2.. 20: 61 C3 D3 BE FF 3B A1 22 DB 7A 78 F0 00 0B 68 BE a....;.".zx...h. 30: 28 5D 7A C8 68 0A 01 ED F0 5C 85 9A 00 96 00 00 (]z.h....\...... 40: 01 00 00 FE FF 00 00 9F 2D 03 01 C4 18 95 00 A3 ........-....... 50: FF FF 80 FF FF FF 00 80 90 20 FF FF 11 04 FF 05 ......... ...... 60: 61 C3 D3 BE FF 3B A1 22 DB 7A 78 F0 00 0B 68 BE a....;.".zx...h. 70: 28 5D 7A C8 68 0A 01 ED F0 5C 85 9A 00 96 00 00 (]z.h....\...... 80: 01 FF 01 FF 00 00 00 00 01 01 01 01 3C 3C 0A 0A ............<<.. 90: 01 FF 00 00 00 01 01 3C 42 00 FF FF 24 32 00 E0 .......<B...$2.. A0: 61 C3 D3 BE FF 3B A1 22 DB 7A 78 F0 00 0B 68 BE a....;.".zx...h. B0: 28 5D 7A C8 68 0A 01 ED F0 5C 85 9A 00 96 00 00 (]z.h....\...... C0: 01 00 00 FE FF 00 00 9F 2D 03 01 C4 18 95 00 A3 ........-....... D0: FF FF 80 FF FF FF 00 80 90 20 FF FF 11 04 FF 05 ......... ...... E0: 61 C3 D3 BE FF 3B A1 22 DB 7A 78 F0 00 0B 68 BE a....;.".zx...h. F0: 28 5D 7A C8 68 0A 01 ED F0 5C 85 9A 00 96 00 00 (]z.h....\...... ************************* SMB Dump from address $2F --> <Winbond W83791D> (SMBus at $0400) (No error) 00: 00 00 00 00 00 00 00 00 00 8A 00 00 01 00 00 FF ................ 10: 00 00 7F 00 00 10 00 00 00 00 00 00 00 00 00 80 ................ 20: 11 05 4D BD 05 05 05 7D FF FF FF 7E 68 00 00 ED ..M....}...~h... 30: B0 31 62 B3 B9 C4 6F AC A2 32 24 23 50 8C FF FF .1b...o..2$#P... 40: 01 30 20 00 00 00 00 50 2F 10 01 44 01 95 00 A3 .0 ....P/..D.... 50: FF FF FF FF FF FF 00 80 72 70 FF 00 00 00 05 FF ........rp...... 60: FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF ................ 70: FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF ................ 80: 01 FF 01 FF 00 00 00 00 01 01 01 01 3C 3C 0A 0A ............<<.. 90: 00 00 00 01 FF 00 00 00 01 01 3C 00 00 00 01 01 ..........<..... A0: FF FF FF 00 00 00 00 00 1A FF 6F 18 00 FF FF FF ..........o..... B0: BD 9A 05 FF 00 38 76 B2 95 38 FF FF 00 91 FF FF .....8v..8...... C0: 7D 80 00 4B 00 50 00 FF 7D 80 00 4B 00 50 00 FF }..K.P..}..K.P.. D0: FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF ................ E0: FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF ................ F0: FF FF 00 FF 00 01 00 FF FF 02 FF 00 00 02 FF 1D ................ SMB Dump from address $44 --> <Unknown> (SMBus at $0400) (No error) 00: 00 00 0F 04 00 00 00 00 00 00 00 00 00 00 00 00 ................ 10: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 20: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 30: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 40: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 50: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 60: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 70: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 80: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 90: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ A0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ C0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ F0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ SMB Dump from address $48 --> <LM75> (SMBus at $0400) (No error) 00: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 10: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 20: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 30: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 40: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 50: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 60: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 70: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 80: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 90: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP A0: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP B0: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP C0: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP D0: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP E0: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP F0: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP SMB Dump from address $49 --> <LM75> (SMBus at $0400) (No error) 00: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 10: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 20: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 30: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 40: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 50: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 60: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 70: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 80: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 90: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP A0: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP B0: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP C0: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP D0: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP E0: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP F0: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP SMB Dump from address $50 --> <RAM> (SMBus at $0400) (No error) 00: 80 08 07 0D 0A 01 40 00 04 50 65 00 82 08 00 01 ......@..Pe..... 10: 0E 04 18 01 02 20 C0 60 70 00 00 3C 28 3C 28 40 ..... .`p..<(<(@ 20: 60 60 40 40 00 00 00 00 00 37 46 28 28 32 00 00 ``@@.....7F((2.. 30: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 10 5F ..............._ 40: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 50: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 60: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 70: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 80: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 90: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ A0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ C0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ F0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ SMB Dump from address $52 --> <RAM> (SMBus at $0400) (No error) 00: 80 08 07 0D 0A 01 40 00 04 50 65 00 82 08 00 01 ......@..Pe..... 10: 0E 04 18 01 02 20 C0 60 70 00 00 3C 28 3C 28 40 ..... .`p..<(<(@ 20: 60 60 40 40 00 00 00 00 00 37 46 28 28 32 00 00 ``@@.....7F((2.. 30: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 10 5F ..............._ 40: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 50: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 60: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 70: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 80: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 90: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ A0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ C0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ F0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ SMB Device at address $61 --> (SMBus at $0400) (No error) SMB Device at address $69 --> (SMBus at $0400) (No error) ************************* Retry attempts info for SMBus at $0400 [ -1]=158 [ 1]=158 ************************* ************************* ************************* Can change fan speeds : DON'T KNOW Can smoothly change fan speeds : DON'T KNOW Can stop fans : DON'T KNOW ************************* Tray icon size : 16x16 UPTIME : 0 days 01:55:44 ************************* I/O properly initialized !!!Exception in reading CPU INFO at startup (2)!!! Linked ISA BUS at $0290 Linked Intel 82801EB ICH5 SMBUS at $0400 Scanning ISA BUS at $0290... Winbond W83627THF (ID=$90) found on ISA at $290 Scanning Intel SMBus at $0400... Winbond W83791D (PLEASE REPORT) (ID=$72) found on SMBus at $2F LM75 found on SMBus at $48 LM75 found on SMBus at $49 SMART Enabled for drive 0 Found ST3120026A (120,0GB) SMART Enabled for drive 1 Found ST3120022A (120,0GB) SMART Enabled for drive 2 SMART Enabled for drive 3 End of detection CLOCK GENERATOR set to ICS 952607 *************************** I/O properly initialized !!!Exception in reading CPU INFO at startup (2)!!! Linked ISA BUS at $0290 Linked PCI Starting PCI scan... FUNC_DIS=$0044 Command Register : $0001 I/O Space Enabled Host Configuration Register : $01 SMBus Host Enabled Linked Intel 82801EB ICH5 SMBUS at $0400 HST_CNT=$0C PCI scan done! Scanning ISA BUS at $0290... About to check DELL support PCI scanning is enabled End of DELL support check Winbond W83627THF (ID=$90) found on ISA at $290 [$54]=$FE [$55]=$11 [$56]=$00 -> Temperature sensor diode 1 : Thermistor 2N3904 -> Temperature sensor diode 2 : PII diode -> Temperature sensor diode 3 : Thermistor 2N3904 -> FAN1 divisor : 2 -> FAN2 divisor : 4 -> FAN3 divisor : 8 -> PWM 1 mode : Manual PWM Control -> PWM 2 mode : Manual PWM Control Second pass... Winbond r[$20]=$82 r[$21]=$84 r[$07]=$02 Checking $0370 for SMSC (2)... Checking $0370 for SMSC (1)... Checking $03F0 for SMSC (2)... Checking $03F0 for SMSC (1)... Checking $002E for SMSC (1)... Checking $004E for SMSC (1)... Checking $002E for WINBOND... $002E --> Device ID=$82 Revision=$84 Checking $004E for WINBOND... Checking $0250 for WINBOND... Checking $0370 for WINBOND... Checking $03F0 for WINBOND... Checking $002E for NS... Checking $004E for NS... Checking $002E for ITE (1)... Registers [$002E] : $FF $FF $FF Scanning Intel SMBus at $0400... INTEL ICHx Slave Address found at $44 Winbond W83791D (PLEASE REPORT) (ID=$72) found on SMBus at $2F [$54]=$FF [$55]=$FF [$56]=$FF -> FAN1 divisor : 2 -> FAN2 divisor : 2 -> FAN3 divisor : 2 LM75 found on SMBus at $48 LM75 found on SMBus at $49 About to probe TOSHIBA SUPPORT... End of TOSHIBA SUPPORT probing Version 1.1 03 00000007 SMART Enabled for drive 0 --> S.M.A.R.T. attributes properly read --> S.M.A.R.T. thresholds properly read Start of DEBUG DATA for drive 0 000 : $5A0C $FF3F $37C8 $1000 $0000 $0000 $3F00 $0000 008 : $0000 $0000 $4A33 $3154 $3853 $5451 $2020 $2020 016 : $2020 $2020 $2020 $2020 $0000 $0040 $0400 $2E33 024 : $3630 $2020 $2020 $5453 $3133 $3032 $3230 $4136 032 : $2020 $2020 $2020 $2020 $2020 $2020 $2020 $2020 040 : $2020 $2020 $2020 $2020 $2020 $2020 $2020 $1080 048 : $0000 $002F $0000 $0002 $0002 $0700 $FF3F $1000 056 : $3F00 $10FC $FB00 $1001 $B04B $F90D $0000 $0700 064 : $0300 $7800 $7800 $F000 $7800 $0000 $0000 $0000 072 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 080 : $7E00 $1B00 $6B34 $017D $0340 $6934 $013C $0340 088 : $3F20 $0000 $0000 $FEFE $0000 $7D60 $0080 $0000 096 : $0000 $0000 $0000 $0000 $B04B $F90D $0000 $0000 104 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 112 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 120 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 128 : $0900 $B04B $F90D $B04B $F90D $2020 $0200 $B642 136 : $0000 $008A $063C $0A3C $FFFF $C607 $0001 $0008 144 : $F010 $0010 $0200 $3000 $0000 $0000 $0000 $06FE 152 : $0000 $0200 $0000 $0000 $0000 $0000 $2200 $0B00 160 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 168 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 176 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 184 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 192 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 200 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 208 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 216 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 224 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 232 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 240 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 248 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $A5E5 SMART Structure Revision : $000A ID=$01 NAME=Raw Read Error Rate VALUE=$41 WORST=$3B RAW=$000006073D53 THRSHLD=$06 FLAGS=$000F ID=$03 NAME=Spin Up Time VALUE=$60 WORST=$60 RAW=$000000000000 THRSHLD=$00 FLAGS=$0003 ID=$04 NAME=Start/Stop Count VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$14 FLAGS=$0032 ID=$05 NAME=Reallocated Sector Count VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$24 FLAGS=$0033 ID=$07 NAME=Seek Error Rate VALUE=$3F WORST=$3C RAW=$00000024A85A THRSHLD=$1E FLAGS=$000F ID=$09 NAME=Power On Hours Count VALUE=$64 WORST=$64 RAW=$000000000019 THRSHLD=$00 FLAGS=$0032 ID=$0A NAME=Spin Retry Count VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$61 FLAGS=$0013 ID=$0C NAME=Power Cycle Count VALUE=$64 WORST=$64 RAW=$000000000022 THRSHLD=$14 FLAGS=$0032 ID=$C2 NAME=Temperature VALUE=$23 WORST=$2C RAW=$000000000023 THRSHLD=$00 FLAGS=$0022 Current HD temperature is 35C ID=$C3 NAME=Hardware ECC Recovered VALUE=$41 WORST=$3B RAW=$000006073D53 THRSHLD=$00 FLAGS=$001A ID=$C5 NAME=Current Pending Sector VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0012 ID=$C6 NAME=Offline Correctable VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0010 ID=$C7 NAME=UltraATA CRC Error Rate VALUE=$C8 WORST=$C3 RAW=$000000000009 THRSHLD=$00 FLAGS=$003E ID=$C8 NAME=Write Error Rate VALUE=$64 WORST=$FD RAW=$000000000000 THRSHLD=$00 FLAGS=$0000 ID=$CA NAME=TA Increase Count VALUE=$64 WORST=$FD RAW=$000000000000 THRSHLD=$00 FLAGS=$0032 End of DEBUG DATA for drive 0 Found ST3120026A (120,0GB) Found ST3120026A Firmware revision <3.06> (120,0GB) Serial <3JT1S8QT> --> ATA device --> Fixed Drive --> S.M.A.R.T. Supported (enabled) --> Power Management Supported (enabled) --> 48-bit Addressing ($4BB0 $0DF9 $0000 $0000) --> UDMA Mode 0 Supported --> UDMA Mode 1 Supported --> UDMA Mode 2 Supported --> UDMA Mode 3 Supported --> UDMA Mode 4 Supported --> UDMA Mode 5 Supported --> UDMA Mode 5 Active SMART Structure Revision : $000A ID=$01 NAME=Raw Read Error Rate VALUE=$41 WORST=$3B RAW=$000006073D53 THRSHLD=$06 FLAGS=$000F ID=$03 NAME=Spin Up Time VALUE=$60 WORST=$60 RAW=$000000000000 THRSHLD=$00 FLAGS=$0003 ID=$04 NAME=Start/Stop Count VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$14 FLAGS=$0032 ID=$05 NAME=Reallocated Sector Count VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$24 FLAGS=$0033 ID=$07 NAME=Seek Error Rate VALUE=$3F WORST=$3C RAW=$00000024A85A THRSHLD=$1E FLAGS=$000F ID=$09 NAME=Power On Hours Count VALUE=$64 WORST=$64 RAW=$000000000019 THRSHLD=$00 FLAGS=$0032 ID=$0A NAME=Spin Retry Count VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$61 FLAGS=$0013 ID=$0C NAME=Power Cycle Count VALUE=$64 WORST=$64 RAW=$000000000022 THRSHLD=$14 FLAGS=$0032 ID=$C2 NAME=Temperature VALUE=$23 WORST=$2C RAW=$000000000023 THRSHLD=$00 FLAGS=$0022 Current HD temperature is 35C ID=$C3 NAME=Hardware ECC Recovered VALUE=$41 WORST=$3B RAW=$000006073D53 THRSHLD=$00 FLAGS=$001A ID=$C5 NAME=Current Pending Sector VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0012 ID=$C6 NAME=Offline Correctable VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0010 ID=$C7 NAME=UltraATA CRC Error Rate VALUE=$C8 WORST=$C3 RAW=$000000000009 THRSHLD=$00 FLAGS=$003E ID=$C8 NAME=Write Error Rate VALUE=$64 WORST=$FD RAW=$000000000000 THRSHLD=$00 FLAGS=$0000 ID=$CA NAME=TA Increase Count VALUE=$64 WORST=$FD RAW=$000000000000 THRSHLD=$00 FLAGS=$0032 Linked S.M.A.R.T. Version 1.1 03 00000007 SMART Enabled for drive 1 --> S.M.A.R.T. attributes properly read --> S.M.A.R.T. thresholds properly read Start of DEBUG DATA for drive 1 000 : $5A0C $FF3F $37C8 $1000 $0000 $0000 $3F00 $0000 008 : $0000 $0000 $4A33 $3054 $5634 $4442 $2020 $2020 016 : $2020 $2020 $2020 $2020 $0000 $0010 $0400 $2E33 024 : $3630 $2020 $2020 $5453 $3133 $3032 $3230 $4132 032 : $2020 $2020 $2020 $2020 $2020 $2020 $2020 $2020 040 : $2020 $2020 $2020 $2020 $2020 $2020 $2020 $1080 048 : $0000 $002F $0000 $0002 $0002 $0700 $FF3F $1000 056 : $3F00 $10FC $FB00 $1001 $B04B $F90D $0000 $0700 064 : $0300 $7800 $7800 $F000 $7800 $0000 $0000 $0000 072 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 080 : $7E00 $1B00 $6B34 $017D $0340 $6934 $013C $0340 088 : $3F20 $0000 $0000 $FEFE $0000 $006D $0080 $0000 096 : $0000 $0000 $0000 $0000 $B04B $F90D $0000 $0000 104 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 112 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 120 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 128 : $0100 $B04B $F90D $B04B $F90D $2020 $0200 $B642 136 : $0000 $008A $063C $0A3C $FFFF $C607 $0001 $0008 144 : $D009 $0004 $0200 $3000 $0000 $0000 $0000 $06FE 152 : $0000 $0200 $0000 $0000 $0000 $0000 $2200 $0B00 160 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 168 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 176 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 184 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 192 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 200 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 208 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 216 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 224 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 232 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 240 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 248 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $A5E5 SMART Structure Revision : $000A ID=$01 NAME=Raw Read Error Rate VALUE=$42 WORST=$40 RAW=$000006E09D8E THRSHLD=$06 FLAGS=$000F ID=$03 NAME=Spin Up Time VALUE=$62 WORST=$61 RAW=$000000000000 THRSHLD=$00 FLAGS=$0003 ID=$04 NAME=Start/Stop Count VALUE=$64 WORST=$64 RAW=$000000000001 THRSHLD=$14 FLAGS=$0032 ID=$05 NAME=Reallocated Sector Count VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$24 FLAGS=$0033 ID=$07 NAME=Seek Error Rate VALUE=$40 WORST=$3C RAW=$0000002800C8 THRSHLD=$1E FLAGS=$000F ID=$09 NAME=Power On Hours Count VALUE=$64 WORST=$64 RAW=$000000000020 THRSHLD=$00 FLAGS=$0032 ID=$0A NAME=Spin Retry Count VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$61 FLAGS=$0013 ID=$0C NAME=Power Cycle Count VALUE=$64 WORST=$64 RAW=$000000000028 THRSHLD=$14 FLAGS=$0032 ID=$C2 NAME=Temperature VALUE=$27 WORST=$34 RAW=$000000000027 THRSHLD=$00 FLAGS=$0022 Current HD temperature is 39C ID=$C3 NAME=Hardware ECC Recovered VALUE=$42 WORST=$40 RAW=$000006E09D8E THRSHLD=$00 FLAGS=$001A ID=$C5 NAME=Current Pending Sector VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0012 ID=$C6 NAME=Offline Correctable VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0010 ID=$C7 NAME=UltraATA CRC Error Rate VALUE=$C8 WORST=$BD RAW=$00000000000B THRSHLD=$00 FLAGS=$003E ID=$C8 NAME=Write Error Rate VALUE=$64 WORST=$FD RAW=$000000000000 THRSHLD=$00 FLAGS=$0000 ID=$CA NAME=TA Increase Count VALUE=$64 WORST=$FD RAW=$000000000000 THRSHLD=$00 FLAGS=$0032 End of DEBUG DATA for drive 1 Found ST3120022A (120,0GB) Found ST3120022A Firmware revision <3.06> (120,0GB) Serial <3JT04VBD> --> ATA device --> Fixed Drive --> S.M.A.R.T. Supported (enabled) --> Power Management Supported (enabled) --> 48-bit Addressing ($4BB0 $0DF9 $0000 $0000) --> UDMA Mode 0 Supported --> UDMA Mode 1 Supported --> UDMA Mode 2 Supported --> UDMA Mode 3 Supported --> UDMA Mode 4 Supported --> UDMA Mode 5 Supported --> UDMA Mode 5 Active SMART Structure Revision : $000A ID=$01 NAME=Raw Read Error Rate VALUE=$42 WORST=$40 RAW=$000006E09D8E THRSHLD=$06 FLAGS=$000F ID=$03 NAME=Spin Up Time VALUE=$62 WORST=$61 RAW=$000000000000 THRSHLD=$00 FLAGS=$0003 ID=$04 NAME=Start/Stop Count VALUE=$64 WORST=$64 RAW=$000000000001 THRSHLD=$14 FLAGS=$0032 ID=$05 NAME=Reallocated Sector Count VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$24 FLAGS=$0033 ID=$07 NAME=Seek Error Rate VALUE=$40 WORST=$3C RAW=$0000002800C8 THRSHLD=$1E FLAGS=$000F ID=$09 NAME=Power On Hours Count VALUE=$64 WORST=$64 RAW=$000000000020 THRSHLD=$00 FLAGS=$0032 ID=$0A NAME=Spin Retry Count VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$61 FLAGS=$0013 ID=$0C NAME=Power Cycle Count VALUE=$64 WORST=$64 RAW=$000000000028 THRSHLD=$14 FLAGS=$0032 ID=$C2 NAME=Temperature VALUE=$27 WORST=$34 RAW=$000000000027 THRSHLD=$00 FLAGS=$0022 Current HD temperature is 39C ID=$C3 NAME=Hardware ECC Recovered VALUE=$42 WORST=$40 RAW=$000006E09D8E THRSHLD=$00 FLAGS=$001A ID=$C5 NAME=Current Pending Sector VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0012 ID=$C6 NAME=Offline Correctable VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0010 ID=$C7 NAME=UltraATA CRC Error Rate VALUE=$C8 WORST=$BD RAW=$00000000000B THRSHLD=$00 FLAGS=$003E ID=$C8 NAME=Write Error Rate VALUE=$64 WORST=$FD RAW=$000000000000 THRSHLD=$00 FLAGS=$0000 ID=$CA NAME=TA Increase Count VALUE=$64 WORST=$FD RAW=$000000000000 THRSHLD=$00 FLAGS=$0032 SMART Enabled for drive 2 --> S.M.A.R.T. attributes properly read SMART Enabled for drive 3 --> S.M.A.R.T. attributes properly read End of detection Reading Cfg Version 2.01 Old sensor properly detected --> Winbond W83627THF on ISA @ $290 Old sensor properly detected --> Winbond W83791D on Intel SMBus @ $2F Old sensor properly detected --> LM75 on Intel SMBus @ $48 Old sensor properly detected --> LM75 on Intel SMBus @ $49 Old sensor properly detected --> HD0 (120,0GB) on SMART @ $0 Old sensor properly detected --> HD1 (120,0GB) on SMART @ $1 PWM from Winbond W83627THF@$290(onISA@$290) --> Speed01 0 100 properly added PWM from Winbond W83627THF@$290(onISA@$290) --> Speed02 0 100 properly added PWM from Winbond W83791D@$2F(onSMBusIntel@$400) --> Speed03 0 100 properly added PWM from Winbond W83791D@$2F(onSMBusIntel@$400) --> Speed04 0 100 properly added PWM from Winbond W83791D@$2F(onSMBusIntel@$400) --> Speed05 0 100 properly added PWM from Winbond W83791D@$2F(onSMBusIntel@$400) --> Speed06 0 100 properly added PWM from Winbond W83791D@$2F(onSMBusIntel@$400) --> Speed07 0 100 properly added Temperature from Winbond W83627THF@$290(onISA@$290) --> Temp3 40 50 0 PWM 1 from 0 PWM 2 from 0 PWM 1 from 1 PWM 2 from 1 PWM 3 from 1 PWM 4 from 1 PWM 5 from 1 properly added Temperature from ST3120022A3JT04VBD --> HD1 40 50 0 PWM 1 from 0 PWM 2 from 0 PWM 1 from 1 PWM 2 from 1 PWM 3 from 1 PWM 4 from 1 PWM 5 from 1 properly added Temperature from Winbond W83627THF@$290(onISA@$290) --> Temp1 40 50 0 PWM 1 from 0 PWM 2 from 0 PWM 1 from 1 PWM 2 from 1 PWM 3 from 1 PWM 4 from 1 PWM 5 from 1 properly added Temperature from ST3120026A3JT1S8QT --> HD0 40 50 0 PWM 1 from 0 PWM 2 from 0 PWM 1 from 1 PWM 2 from 1 PWM 3 from 1 PWM 4 from 1 PWM 5 from 1 properly added Temperature from Winbond W83627THF@$290(onISA@$290) --> Temp2 40 50 0 PWM 1 from 0 PWM 2 from 0 PWM 1 from 1 PWM 2 from 1 PWM 3 from 1 PWM 4 from 1 PWM 5 from 1 properly added Temperature from Winbond W83791D@$2F(onSMBusIntel@$400) --> Temp1 40 50 0 PWM 1 from 0 PWM 2 from 0 PWM 1 from 1 PWM 2 from 1 PWM 3 from 1 PWM 4 from 1 PWM 5 from 1 properly added Temperature from Winbond W83791D@$2F(onSMBusIntel@$400) --> Temp2 40 50 0 PWM 1 from 0 PWM 2 from 0 PWM 1 from 1 PWM 2 from 1 PWM 3 from 1 PWM 4 from 1 PWM 5 from 1 properly added Temperature from Winbond W83791D@$2F(onSMBusIntel@$400) --> Temp3 40 50 0 PWM 1 from 0 PWM 2 from 0 PWM 1 from 1 PWM 2 from 1 PWM 3 from 1 PWM 4 from 1 PWM 5 from 1 properly added Temperature from LM75@$48(onSMBusIntel@$400) --> Temp 40 50 0 PWM 1 from 0 PWM 2 from 0 PWM 1 from 1 PWM 2 from 1 PWM 3 from 1 PWM 4 from 1 PWM 5 from 1 properly added Temperature from LM75@$49(onSMBusIntel@$400) --> Temp 40 50 0 PWM 1 from 0 PWM 2 from 0 PWM 1 from 1 PWM 2 from 1 PWM 3 from 1 PWM 4 from 1 PWM 5 from 1 properly added Fan from Winbond W83627THF@$290(onISA@$290) --> Fan01 properly added Fan from Winbond W83627THF@$290(onISA@$290) --> Fan02 properly added Fan from Winbond W83627THF@$290(onISA@$290) --> Fan03 properly added Fan from Winbond W83791D@$2F(onSMBusIntel@$400) --> Fan04 properly added Fan from Winbond W83791D@$2F(onSMBusIntel@$400) --> Fan05 properly added Fan from Winbond W83791D@$2F(onSMBusIntel@$400) --> Fan06 properly added Volt from Winbond W83627THF@$290(onISA@$290) --> Vcore properly added Volt from Winbond W83627THF@$290(onISA@$290) --> +12V properly added Volt from Winbond W83627THF@$290(onISA@$290) --> 3.3V properly added Volt from Winbond W83627THF@$290(onISA@$290) --> Vcc properly added Volt from Winbond W83627THF@$290(onISA@$290) --> Vin2 properly added Volt from Winbond W83627THF@$290(onISA@$290) --> 5Vsb properly added Volt from Winbond W83627THF@$290(onISA@$290) --> Vbat properly added CLOCK GENERATOR set to ICS 952607 Preparing report... report.txt (54,460 bytes)

abzac 2004-07-13 12:29 reporter ~0000130	Report file added

abzac 2004-07-13 12:29 reporter ~0000131	I'm waiting your new solution.

abzac 2004-07-13 12:33 reporter ~0000132	Oops, I start checking Report and found funny text: 2 processor(s) Intel Celeron Northwood-128 (nD1) (0.13

alfredo 2004-07-13 12:38 manager ~0000133	I found something really interesting. I'm working on it and will get back to you in a few minutes. In the meantime: it would be nice to know if you can see THRESHOLDS values for S.M.A.R.T. attributes from all drives. It looks like threshold values are not returned by drive 2 and 3.

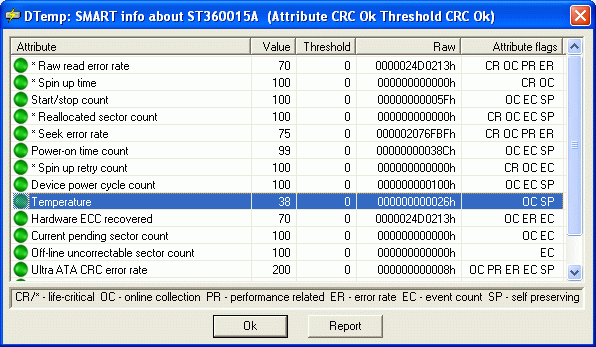

2004-07-13 12:46	trs.gif (27,888 bytes) trs.gif (27,888 bytes)

abzac 2004-07-13 12:46 reporter ~0000134	What you mean THRESHOLDS? And how to see it? I add trs.gif with same info.

alfredo 2004-07-13 13:05 manager ~0000135	Ok! Please try the new beta at the usual URL :-)

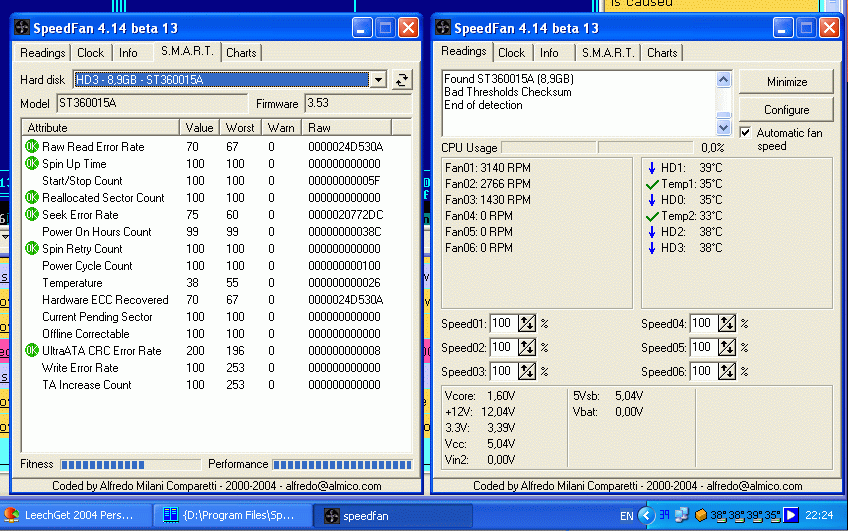

2004-07-13 13:30	beta13.gif (82,446 bytes) beta13.gif (82,446 bytes)

2004-07-13 13:36	report2.txt (65,375 bytes) SpeedFan version : SpeedFan 4.14 beta 13 Motherboard model : ASUS P4P800 Deluxe *************************** BIOS CopyRight : A M I - 2000423BIOS Date: 02/23/04 12:18:46 Ver: 08.00.09BIOS Date: 02/23/04 12:18:46 Ver: 08.00.09 BIOS Date : 02/23/04 BIOS Extended Info : BIOS Name : AT/AT COMPATIBLE Windows NT Multiprocessor Free version 5.1.2600 2 processor(s) Intel Celeron Northwood-128 (nD1) (0.13 �m) family 15 model 2 stepping 9 brand 9 1 MHz (0KB level 1 - 0KB level 2) Running at 1 MHz (1000) I Agree to receive beta versions : ON ************************* Winbond W83627THF on ISA at $290 Temp1 : 34,0 min=34,0 max=35,0 mean=34,0 Winbond W83627THF on ISA at $290 Temp2 : 32,0 min=31,5 max=34,5 mean=32,8 Winbond W83627THF on ISA at $290 Temp3 : -48,0 min=-48,0 max=-47,0 mean=-47,9 Winbond W83627THF on ISA at $290 Fan1 : 3111 min=3096 max=3140 mean=3124 Winbond W83627THF on ISA at $290 Fan2 : 2766 min=2722 max=2766 mean=2748 Winbond W83627THF on ISA at $290 Fan3 : 1430 min=1418 max=1442 mean=1429 Winbond W83627THF on ISA at $290 Pwm1 : 100% min=100% max=100% mean=100% Winbond W83627THF on ISA at $290 Pwm2 : 100% min=100% max=100% mean=100% Winbond W83627THF on ISA at $290 Vcore : 1,55 min=1,54 max=1,60 mean=1,59 Winbond W83627THF on ISA at $290 +12V : 11,92 min=11,86 max=12,04 mean=11,98 Winbond W83627THF on ISA at $290 3.3V : 3,36 min=3,36 max=3,39 mean=3,38 Winbond W83627THF on ISA at $290 Vcc : 5,04 min=5,01 max=5,07 mean=5,05 Winbond W83627THF on ISA at $290 Vin2 : 0,00 min=0,00 max=0,00 mean=0,00 Winbond W83627THF on ISA at $290 5Vsb : 5,01 min=4,99 max=5,09 mean=5,04 Winbond W83627THF on ISA at $290 Vbat : 0,00 min=0,00 max=0,00 mean=0,00 [$00]=$01 [$01]=$FF [$02]=$01 [$03]=$FF [$04]=$00 [$05]=$00 [$06]=$00 [$07]=$00 [$08]=$01 [$09]=$01 [$0A]=$01 [$0B]=$01 [$0C]=$3C [$0D]=$3C [$0E]=$0A [$0F]=$0A [$10]=$01 [$11]=$FF [$12]=$00 [$13]=$00 [$14]=$00 [$15]=$01 [$16]=$01 [$17]=$3C [$18]=$42 [$19]=$00 [$1A]=$FF [$1B]=$FF [$1C]=$24 [$1D]=$32 [$1E]=$00 [$1F]=$E2 [$20]=$61 [$21]=$C4 [$22]=$D2 [$23]=$BD [$24]=$FF [$25]=$3B [$26]=$A1 [$27]=$22 [$28]=$D9 [$29]=$7C [$2A]=$76 [$2B]=$F0 [$2C]=$00 [$2D]=$0B [$2E]=$68 [$2F]=$BE [$30]=$28 [$31]=$5D [$32]=$7A [$33]=$C8 [$34]=$68 [$35]=$0A [$36]=$01 [$37]=$ED [$38]=$F0 [$39]=$5C [$3A]=$85 [$3B]=$9A [$3C]=$00 [$3D]=$96 [$3E]=$00 [$3F]=$00 [$40]=$01 [$41]=$00 [$42]=$00 [$43]=$FE [$44]=$FF [$45]=$00 [$46]=$00 [$47]=$9F [$48]=$2D [$49]=$03 [$4A]=$01 [$4B]=$C4 [$4C]=$18 [$4D]=$95 [$4E]=$00 [$4F]=$A3 [$50]=$FF [$51]=$FF [$52]=$80 [$53]=$FF [$54]=$FF [$55]=$FF [$56]=$00 [$57]=$80 [$58]=$90 [$59]=$20 [$5A]=$FF [$5B]=$FF [$5C]=$11 [$5D]=$04 [$5E]=$FF [$5F]=$05 [$60]=$61 [$61]=$C4 [$62]=$D2 [$63]=$BD [$64]=$FF [$65]=$3B [$66]=$A1 [$67]=$22 [$68]=$D9 [$69]=$7C [$6A]=$76 [$6B]=$F0 [$6C]=$00 [$6D]=$0B [$6E]=$68 [$6F]=$BE [$70]=$28 [$71]=$5D [$72]=$7A [$73]=$C8 [$74]=$68 [$75]=$0A [$76]=$01 [$77]=$ED [$78]=$F0 [$79]=$5C [$7A]=$85 [$7B]=$9A [$7C]=$00 [$7D]=$96 [$7E]=$00 [$7F]=$00 [$80]=$01 [$81]=$FF [$82]=$01 [$83]=$FF [$84]=$00 [$85]=$00 [$86]=$00 [$87]=$00 [$88]=$01 [$89]=$01 [$8A]=$01 [$8B]=$01 [$8C]=$3C [$8D]=$3C [$8E]=$0A [$8F]=$0A [$90]=$01 [$91]=$FF [$92]=$00 [$93]=$00 [$94]=$00 [$95]=$01 [$96]=$01 [$97]=$3C [$98]=$42 [$99]=$00 [$9A]=$FF [$9B]=$FF [$9C]=$24 [$9D]=$32 [$9E]=$00 [$9F]=$E2 [$A0]=$61 [$A1]=$C4 [$A2]=$D2 [$A3]=$BD [$A4]=$FF [$A5]=$3B [$A6]=$A1 [$A7]=$22 [$A8]=$D9 [$A9]=$7C [$AA]=$76 [$AB]=$F0 [$AC]=$00 [$AD]=$0B [$AE]=$68 [$AF]=$BE [$B0]=$28 [$B1]=$5D [$B2]=$7A [$B3]=$C8 [$B4]=$68 [$B5]=$0A [$B6]=$01 [$B7]=$ED [$B8]=$F0 [$B9]=$5C [$BA]=$85 [$BB]=$9A [$BC]=$00 [$BD]=$96 [$BE]=$00 [$BF]=$00 [$C0]=$01 [$C1]=$00 [$C2]=$00 [$C3]=$FE [$C4]=$FF [$C5]=$00 [$C6]=$00 [$C7]=$9F [$C8]=$2D [$C9]=$03 [$CA]=$01 [$CB]=$C4 [$CC]=$18 [$CD]=$95 [$CE]=$00 [$CF]=$A3 [$D0]=$FF [$D1]=$FF [$D2]=$80 [$D3]=$FF [$D4]=$FF [$D5]=$FF [$D6]=$00 [$D7]=$80 [$D8]=$90 [$D9]=$20 [$DA]=$FF [$DB]=$FF [$DC]=$11 [$DD]=$04 [$DE]=$FF [$DF]=$05 [$E0]=$61 [$E1]=$C4 [$E2]=$D2 [$E3]=$BD [$E4]=$FF [$E5]=$3B [$E6]=$A1 [$E7]=$22 [$E8]=$D9 [$E9]=$7C [$EA]=$76 [$EB]=$F0 [$EC]=$00 [$ED]=$0B [$EE]=$68 [$EF]=$BE [$F0]=$28 [$F1]=$5D [$F2]=$7A [$F3]=$C8 [$F4]=$68 [$F5]=$0A [$F6]=$01 [$F7]=$ED [$F8]=$F0 [$F9]=$5C [$FA]=$85 [$FB]=$9A [$FC]=$00 [$FD]=$96 [$FE]=$00 [$FF]=$00 Bank 0 --> [$50]=$FF [$51]=$FF [$52]=$80 [$53]=$FF [$54]=$FF [$55]=$FF [$56]=$00 [$57]=$80 [$58]=$90 [$59]=$20 [$5A]=$FF [$5B]=$FF [$5C]=$11 [$5D]=$04 [$5E]=$FF [$5F]=$05 Bank 1 --> [$50]=$1E [$51]=$80 [$52]=$00 [$53]=$4B [$54]=$00 [$55]=$50 [$56]=$00 [$57]=$FF [$58]=$FF [$59]=$FF [$5A]=$FF [$5B]=$FF [$5C]=$FF [$5D]=$FF [$5E]=$FF [$5F]=$FF Bank 2 --> [$50]=$D0 [$51]=$00 [$52]=$00 [$53]=$4B [$54]=$00 [$55]=$50 [$56]=$00 [$57]=$FF [$58]=$FF [$59]=$FF [$5A]=$FF [$5B]=$FF [$5C]=$FF [$5D]=$FF [$5E]=$FF [$5F]=$FF Bank 3 --> [$50]=$FF [$51]=$FF [$52]=$FF [$53]=$FF [$54]=$FF [$55]=$FF [$56]=$FF [$57]=$FF [$58]=$FF [$59]=$FF [$5A]=$FF [$5B]=$FF [$5C]=$FF [$5D]=$FF [$5E]=$FF [$5F]=$FF Bank 4 --> [$50]=$00 [$51]=$13 [$52]=$00 [$53]=$00 [$54]=$FE [$55]=$11 [$56]=$00 [$57]=$00 [$58]=$1A [$59]=$CE [$5A]=$01 [$5B]=$03 [$5C]=$11 [$5D]=$00 [$5E]=$FF [$5F]=$FF Bank 5 --> [$50]=$BC [$51]=$03 [$52]=$00 [$53]=$00 [$54]=$10 [$55]=$06 [$56]=$DA [$57]=$8D [$58]=$00 [$59]=$00 [$5A]=$00 [$5B]=$00 [$5C]=$00 [$5D]=$00 [$5E]=$00 [$5F]=$00 Bank 6 --> [$50]=$C8 [$51]=$FD [$52]=$2C [$53]=$5A [$54]=$32 [$55]=$2F [$56]=$2E [$57]=$2D [$58]=$C8 [$59]=$FD [$5A]=$2C [$5B]=$5A [$5C]=$32 [$5D]=$2F [$5E]=$2E [$5F]=$2D Bank 7 --> [$50]=$FF [$51]=$FF [$52]=$FF [$53]=$FF [$54]=$FF [$55]=$FF [$56]=$FF [$57]=$FF [$58]=$FF [$59]=$FF [$5A]=$FF [$5B]=$FF [$5C]=$FF [$5D]=$FF [$5E]=$FF [$5F]=$FF Winbond W83791D on Intel SMBus at $2F Temp1 : 125,0 min=125,0 max=125,0 mean=125,0 Winbond W83791D on Intel SMBus at $2F Temp2 : 125,0 min=125,0 max=125,0 mean=125,0 Winbond W83791D on Intel SMBus at $2F Temp3 : -127,5 min=-127,5 max=-127,5 mean=-127,5 Winbond W83791D on Intel SMBus at $2F Fan1 : 0 min=0 max=0 mean=0 Winbond W83791D on Intel SMBus at $2F Fan2 : 0 min=0 max=0 mean=0 Winbond W83791D on Intel SMBus at $2F Fan3 : 0 min=0 max=0 mean=0 Winbond W83791D on Intel SMBus at $2F Pwm1 : 100% min=100% max=100% mean=100% Winbond W83791D on Intel SMBus at $2F Pwm2 : 100% min=100% max=100% mean=100% Winbond W83791D on Intel SMBus at $2F Pwm3 : 100% min=100% max=100% mean=100% Winbond W83791D on Intel SMBus at $2F Pwm4 : 100% min=100% max=100% mean=100% Winbond W83791D on Intel SMBus at $2F Pwm5 : 100% min=100% max=100% mean=100% [$00]=$00 [$01]=$00 [$02]=$00 [$03]=$00 [$04]=$00 [$05]=$00 [$06]=$00 [$07]=$00 [$08]=$00 [$09]=$8A [$0A]=$00 [$0B]=$00 [$0C]=$01 [$0D]=$00 [$0E]=$00 [$0F]=$FF [$10]=$00 [$11]=$00 [$12]=$7F [$13]=$00 [$14]=$00 [$15]=$10 [$16]=$00 [$17]=$00 [$18]=$00 [$19]=$00 [$1A]=$00 [$1B]=$00 [$1C]=$00 [$1D]=$00 [$1E]=$00 [$1F]=$80 [$20]=$10 [$21]=$05 [$22]=$4D [$23]=$BD [$24]=$05 [$25]=$05 [$26]=$05 [$27]=$7D [$28]=$FF [$29]=$FF [$2A]=$FF [$2B]=$7E [$2C]=$68 [$2D]=$00 [$2E]=$00 [$2F]=$ED [$30]=$B0 [$31]=$31 [$32]=$62 [$33]=$B3 [$34]=$B9 [$35]=$C4 [$36]=$6F [$37]=$AC [$38]=$A2 [$39]=$32 [$3A]=$24 [$3B]=$23 [$3C]=$50 [$3D]=$8C [$3E]=$FF [$3F]=$FF [$40]=$01 [$41]=$30 [$42]=$20 [$43]=$00 [$44]=$00 [$45]=$00 [$46]=$00 [$47]=$50 [$48]=$2F [$49]=$10 [$4A]=$01 [$4B]=$44 [$4C]=$01 [$4D]=$95 [$4E]=$00 [$4F]=$A3 [$50]=$FF [$51]=$FF [$52]=$FF [$53]=$FF [$54]=$FF [$55]=$FF [$56]=$00 [$57]=$80 [$58]=$72 [$59]=$70 [$5A]=$FF [$5B]=$00 [$5C]=$00 [$5D]=$00 [$5E]=$05 [$5F]=$FF [$60]=$FF [$61]=$FF [$62]=$FF [$63]=$FF [$64]=$FF [$65]=$FF [$66]=$FF [$67]=$FF [$68]=$FF [$69]=$FF [$6A]=$FF [$6B]=$FF [$6C]=$FF [$6D]=$FF [$6E]=$FF [$6F]=$FF [$70]=$FF [$71]=$FF [$72]=$FF [$73]=$FF [$74]=$FF [$75]=$FF [$76]=$FF [$77]=$FF [$78]=$FF [$79]=$FF [$7A]=$FF [$7B]=$FF [$7C]=$FF [$7D]=$FF [$7E]=$FF [$7F]=$FF [$80]=$01 [$81]=$FF [$82]=$01 [$83]=$FF [$84]=$00 [$85]=$00 [$86]=$00 [$87]=$00 [$88]=$01 [$89]=$01 [$8A]=$01 [$8B]=$01 [$8C]=$3C [$8D]=$3C [$8E]=$0A [$8F]=$0A [$90]=$00 [$91]=$00 [$92]=$00 [$93]=$01 [$94]=$FF [$95]=$00 [$96]=$00 [$97]=$00 [$98]=$01 [$99]=$01 [$9A]=$3C [$9B]=$00 [$9C]=$00 [$9D]=$00 [$9E]=$01 [$9F]=$01 [$A0]=$FF [$A1]=$FF [$A2]=$FF [$A3]=$00 [$A4]=$00 [$A5]=$00 [$A6]=$00 [$A7]=$00 [$A8]=$1A [$A9]=$FF [$AA]=$6F [$AB]=$18 [$AC]=$00 [$AD]=$FF [$AE]=$FF [$AF]=$FF [$B0]=$BC [$B1]=$9A [$B2]=$05 [$B3]=$FF [$B4]=$00 [$B5]=$38 [$B6]=$76 [$B7]=$B2 [$B8]=$95 [$B9]=$38 [$BA]=$FF [$BB]=$FF [$BC]=$00 [$BD]=$91 [$BE]=$FF [$BF]=$FF [$C0]=$7D [$C1]=$80 [$C2]=$00 [$C3]=$4B [$C4]=$00 [$C5]=$50 [$C6]=$00 [$C7]=$FF [$C8]=$7D [$C9]=$80 [$CA]=$00 [$CB]=$4B [$CC]=$00 [$CD]=$50 [$CE]=$00 [$CF]=$FF [$D0]=$FF [$D1]=$FF [$D2]=$FF [$D3]=$FF [$D4]=$FF [$D5]=$FF [$D6]=$FF [$D7]=$FF [$D8]=$FF [$D9]=$FF [$DA]=$FF [$DB]=$FF [$DC]=$FF [$DD]=$FF [$DE]=$FF [$DF]=$FF [$E0]=$FF [$E1]=$FF [$E2]=$FF [$E3]=$FF [$E4]=$FF [$E5]=$FF [$E6]=$FF [$E7]=$FF [$E8]=$FF [$E9]=$FF [$EA]=$FF [$EB]=$FF [$EC]=$FF [$ED]=$FF [$EE]=$FF [$EF]=$FF [$F0]=$FF [$F1]=$FF [$F2]=$00 [$F3]=$FF [$F4]=$00 [$F5]=$01 [$F6]=$00 [$F7]=$FF [$F8]=$FF [$F9]=$02 [$FA]=$FF [$FB]=$00 [$FC]=$00 [$FD]=$15 [$FE]=$FF [$FF]=$1D Bank 0 --> [$50]=$FF [$51]=$FF [$52]=$FF [$53]=$FF [$54]=$FF [$55]=$FF [$56]=$00 [$57]=$80 [$58]=$72 [$59]=$70 [$5A]=$FF [$5B]=$00 [$5C]=$00 [$5D]=$00 [$5E]=$05 [$5F]=$FF Bank 1 --> [$50]=$03 [$51]=$07 [$52]=$07 [$53]=$07 [$54]=$07 [$55]=$07 [$56]=$07 [$57]=$07 [$58]=$07 [$59]=$03 [$5A]=$07 [$5B]=$03 [$5C]=$03 [$5D]=$07 [$5E]=$03 [$5F]=$03 Bank 2 --> [$50]=$FF [$51]=$FF [$52]=$FF [$53]=$FF [$54]=$FF [$55]=$FF [$56]=$FF [$57]=$FF [$58]=$FF [$59]=$FF [$5A]=$FF [$5B]=$FF [$5C]=$FF [$5D]=$FF [$5E]=$FF [$5F]=$FF Bank 3 --> [$50]=$FF [$51]=$FF [$52]=$FF [$53]=$FF [$54]=$FF [$55]=$FF [$56]=$FF [$57]=$FF [$58]=$FF [$59]=$FF [$5A]=$FF [$5B]=$FF [$5C]=$FF [$5D]=$FF [$5E]=$FF [$5F]=$FF Bank 4 --> [$50]=$FF [$51]=$FF [$52]=$FF [$53]=$FF [$54]=$FF [$55]=$FF [$56]=$FF [$57]=$FF [$58]=$FF [$59]=$FF [$5A]=$FF [$5B]=$FF [$5C]=$FF [$5D]=$FF [$5E]=$FF [$5F]=$FF Bank 5 --> [$50]=$FF [$51]=$FF [$52]=$FF [$53]=$FF [$54]=$FF [$55]=$FF [$56]=$FF [$57]=$FF [$58]=$FF [$59]=$FF [$5A]=$FF [$5B]=$FF [$5C]=$FF [$5D]=$FF [$5E]=$FF [$5F]=$FF Bank 6 --> [$50]=$FF [$51]=$FF [$52]=$FF [$53]=$FF [$54]=$FF [$55]=$FF [$56]=$FF [$57]=$FF [$58]=$FF [$59]=$FF [$5A]=$FF [$5B]=$FF [$5C]=$FF [$5D]=$FF [$5E]=$FF [$5F]=$FF Bank 7 --> [$50]=$FF [$51]=$FF [$52]=$FF [$53]=$FF [$54]=$FF [$55]=$FF [$56]=$FF [$57]=$FF [$58]=$FF [$59]=$FF [$5A]=$FF [$5B]=$FF [$5C]=$FF [$5D]=$FF [$5E]=$FF [$5F]=$FF LM75 on Intel SMBus at $48 Temp : 0,0 min=9,99999999999999966E89 max=-9,99999999999999966E89 mean=0,0 LM75 on Intel SMBus at $49 Temp : 0,0 min=9,99999999999999966E89 max=-9,99999999999999966E89 mean=0,0 HD0 (120,0GB) on SMART at $0 HD0 : 34,0 min=34,0 max=35,0 mean=34,6 ST3120026A (drive 0) : fitness=43% performance=100% HD1 (120,0GB) on SMART at $1 HD1 : 38,0 min=38,0 max=39,0 mean=38,6 ST3120022A (drive 1) : fitness=43% performance=100% HD2 (8,9GB) on SMART at $2 HD2 : 38,0 min=38,0 max=38,0 mean=38,0 ST360015A (drive 2) : fitness=60% performance=100% HD3 (8,9GB) on SMART at $3 HD3 : 38,0 min=38,0 max=38,0 mean=38,0 ST360015A (drive 3) : fitness=60% performance=100% ************************* Temp3 --> active=OFF chip=0 index=3 wanted=40 warning=50 offset=0 InTray=OFF Used pwms=1 2 3 4 5 6 7 HD1 --> active=ON chip=5 index=1 wanted=40 warning=50 offset=0 InTray=ON Used pwms=1 2 3 4 5 6 7 Temp1 --> active=ON chip=0 index=1 wanted=40 warning=50 offset=0 InTray=OFF Used pwms=1 2 3 4 5 6 7 HD0 --> active=ON chip=4 index=1 wanted=40 warning=50 offset=0 InTray=OFF Used pwms=1 2 3 4 5 6 7 Temp2 --> active=ON chip=0 index=2 wanted=40 warning=50 offset=0 InTray=OFF Used pwms=1 2 3 4 5 6 7 Temp1 --> active=OFF chip=1 index=1 wanted=40 warning=50 offset=0 InTray=OFF Used pwms=1 2 3 4 5 6 7 Temp2 --> active=OFF chip=1 index=2 wanted=40 warning=50 offset=0 InTray=OFF Used pwms=1 2 3 4 5 6 7 Temp3 --> active=OFF chip=1 index=3 wanted=40 warning=50 offset=0 InTray=OFF Used pwms=1 2 3 4 5 6 7 Temp --> active=OFF chip=2 index=1 wanted=40 warning=50 offset=0 InTray=OFF Used pwms=1 2 3 4 5 6 7 Temp --> active=OFF chip=3 index=1 wanted=40 warning=50 offset=0 InTray=OFF Used pwms=1 2 3 4 5 6 7 HD2 --> active=ON chip=6 index=1 wanted=40 warning=50 offset=0 InTray=OFF Used pwms=1 2 3 4 5 6 7 HD3 --> active=ON chip=7 index=1 wanted=40 warning=50 offset=0 InTray=OFF Used pwms=1 2 3 4 5 6 7 Fan01 --> active=ON chip=0 index=1 Fan02 --> active=ON chip=0 index=2 Fan03 --> active=ON chip=0 index=3 Fan04 --> active=ON chip=1 index=1 Fan05 --> active=ON chip=1 index=2 Fan06 --> active=ON chip=1 index=3 Speed01 --> active=ON chip=0 index=1 min=0 max=100 variate=OFF Speed02 --> active=ON chip=0 index=2 min=0 max=100 variate=OFF Speed03 --> active=ON chip=1 index=1 min=0 max=100 variate=OFF Speed04 --> active=ON chip=1 index=2 min=0 max=100 variate=OFF Speed05 --> active=ON chip=1 index=3 min=0 max=100 variate=OFF Speed06 --> active=ON chip=1 index=4 min=0 max=100 variate=OFF Speed07 --> active=ON chip=1 index=5 min=0 max=100 variate=OFF Vcore --> active=ON chip=0 index=1 +12V --> active=ON chip=0 index=2 3.3V --> active=ON chip=0 index=3 Vcc --> active=ON chip=0 index=4 Vin2 --> active=ON chip=0 index=5 5Vsb --> active=ON chip=0 index=6 Vbat --> active=ON chip=0 index=7 Set Fans to 100% on exit : ON Debug Mode : ON Use ISA : ON Use SMB : ON Scan PCI : ON Scan SMB : ON Slow SMB detection : OFF Detect SuperIO : ON ASUS Card Detect : ON DELL Support : OFF Command line : speedfan.exe Delta Fan Speed : 10 ************************* Chipset : Intel 82801EB ICH5 SMBus Base Address : $0400 SMBus Revision : 00000002 SMBus I/O Enabled : ON ************************* Bus : 00 Device: 00 Function : 00 --> 25708086 Vendor : 8086 Device : 2570 (rev 02) - Intel Corporation 82865G/PE/P, 82848P DRAM Controller / Host-Hub Interface 00: 8086 2570 0006 2090 0002 0600 0000 0000 0008 F800 0000 0000 0000 0000 0000 0000 20: 0000 0000 0000 0000 0000 0000 1043 80F2 0000 0000 00E4 0000 0000 0000 0000 0000 40: 0000 0000 0000 0000 0000 0000 0000 0000 0200 0008 8040 001C 0000 0000 0000 0000 60: 0500 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 80: 0000 0000 0000 0000 0000 0000 0000 0000 1110 1111 3301 0033 0000 0000 0A00 0038 A0: 0002 0030 4217 1F00 0304 0000 0000 0000 0080 0000 0030 0000 4000 0000 1020 0000 C0: 0000 0000 2000 200D 0000 0000 0000 0000 2802 0E04 0D0B 0000 0000 0000 0000 0130 E0: 0000 0000 A009 2106 0200 0000 0000 0000 0000 0000 0002 0000 0F68 0003 0000 0000 Bus : 00 Device: 01 Function : 00 --> 25718086 Vendor : 8086 Device : 2571 (rev 02) - Intel Corporation 82865G/PE/P, 82848P PCI-to-AGP Bridge 00: 8086 2571 0107 00A0 0002 0604 4000 0001 0000 0000 0000 0000 0100 4001 C0C0 22A0 20: FEA0 FEA0 E7F0 F7E0 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0008 40: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 60: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 80: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 A0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 C0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 E0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0F68 0003 0000 0000 Bus : 00 Device: 06 Function : 00 --> 25768086 Vendor : 8086 Device : 2576 (rev 02) - Intel Corporation 82865G/PE/P, 82848P Overflow Configuration 00: 8086 2576 0002 0080 0002 0880 0000 0000 0000 FECF 0000 0000 0000 0000 0000 0000 20: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 40: 6540 0400 0000 0000 0004 0000 0000 0000 0001 0084 0102 0080 0000 0000 0000 0000 60: 0000 0000 0000 0000 0000 0000 0000 0000 0004 0000 0000 0000 0000 0000 0000 0000 80: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0555 0000 0000 0000 0000 0000 0000 A0: 0000 0000 0000 0000 0000 0000 2000 0008 0000 0000 43F0 7DFC 0001 0000 0009 0000 C0: 0000 0000 0024 0000 0000 0000 0000 0000 0000 0000 0000 0000 FFFF FFFF FFFF 3FFF E0: 0001 0000 0000 0000 0EFF 0000 0000 0004 0C00 0002 0000 0000 0F68 0003 FC74 0000 Bus : 00 Device: 29 Function : 00 --> 24D28086 Vendor : 8086 Device : 24D2 (rev 02) - Intel Corporation 82801EB/ER USB UHCI Controller #1 00: 8086 24D2 0005 0280 0002 0C03 0000 0080 0000 0000 0000 0000 0000 0000 0000 0000 20: EF01 0000 0000 0000 0000 0000 1043 80A6 0000 0000 0000 0000 0000 0000 0110 0000 40: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 60: 0010 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 80: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 A0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 C0: 2F00 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 E0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0F66 0004 0000 0000 Bus : 00 Device: 29 Function : 01 --> 24D48086 Vendor : 8086 Device : 24D4 (rev 02) - Intel Corporation 82801EB/ER USB UHCI Controller #2 00: 8086 24D4 0005 0280 0002 0C03 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 20: EF21 0000 0000 0000 0000 0000 1043 80A6 0000 0000 0000 0000 0000 0000 0213 0000 40: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 60: 0010 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 80: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 A0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 C0: 2F00 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 E0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0F66 0004 0000 0000 Bus : 00 Device: 29 Function : 02 --> 24D78086 Vendor : 8086 Device : 24D7 (rev 02) - Intel Corporation 82801EB/ER USB UHCI Controller #3 00: 8086 24D7 0005 0280 0002 0C03 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 20: EF41 0000 0000 0000 0000 0000 1043 80A6 0000 0000 0000 0000 0000 0000 0312 0000 40: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 60: 0010 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 80: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 A0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 C0: 2F00 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 E0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0F66 0004 0000 0000 Bus : 00 Device: 29 Function : 03 --> 24DE8086 Vendor : 8086 Device : 24DE (rev 02) - Intel Corporation 82801EB/ER USB UHCI Controller #4 00: 8086 24DE 0005 0280 0002 0C03 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 20: EF81 0000 0000 0000 0000 0000 1043 80A6 0000 0000 0000 0000 0000 0000 0110 0000 40: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 60: 0010 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 80: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 A0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 C0: 2F00 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 E0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0F66 0004 0000 0000 Bus : 00 Device: 29 Function : 07 --> 24DD8086 Vendor : 8086 Device : 24DD (rev 02) - Intel Corporation 82801EB/ER USB EHCI Controller 00: 8086 24DD 0106 0290 2002 0C03 0000 0000 BC00 FEBF 0000 0000 0000 0000 0000 0000 20: 0000 0000 0000 0000 0000 0000 1043 80A6 0000 0000 0050 0000 0000 0000 0417 0000 40: 0000 0000 0000 0000 0000 0000 0000 0000 5801 C9C2 0000 0000 000A 20A0 0000 0000 60: 2020 01FF 0000 0000 0001 0000 0000 C000 0000 3FCF 0000 0000 0000 0000 0000 0000 80: 0000 0000 0001 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 A0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 C0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 5555 0000 0000 0000 E0: 0000 0000 0000 0000 0000 0000 0000 0000 8000 0000 8388 0040 0F66 0004 1406 0000 Bus : 00 Device: 30 Function : 00 --> 244E8086 Vendor : 8086 Device : 244E (rev C2) - Intel Corporation 82801BA/CA/DB, 6300ESB Hub Interface to PCI Bridge 00: 8086 244E 0107 0080 00C2 0604 0000 0001 0000 0000 0000 0000 0200 4002 D0D0 2280 20: FFF0 0000 FFF0 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0002 40: 2802 7630 0028 0000 0000 0000 0000 0000 6402 0073 0000 0000 0150 0034 0000 0000 60: 0000 0000 0000 0000 0000 0000 0000 0000 0010 0000 0000 0000 0000 0000 0000 0000 80: 0000 00A0 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 A0: 0000 0000 0000 0000 0000 0000 0000 0000 0001 0002 0000 00C0 0000 0000 0000 0000 C0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 E0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0F66 0004 0000 3153 Bus : 00 Device: 31 Function : 00 --> 24D08086 Vendor : 8086 Device : 24D0 (rev 02) - Intel Corporation 82801EB/ER LPC Interface Bridge 00: 8086 24D0 000F 0280 0002 0601 0000 0080 0000 0000 0000 0000 0000 0000 0000 0000 20: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 40: 0801 0000 0010 0000 0000 0000 0000 0000 0000 0000 0000 0000 0481 0000 0010 0000 60: 8B8A 8585 00D0 0000 8080 8B80 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 80: 0000 0000 0000 0000 0000 0000 0000 0000 FCFF 0000 0000 0000 0000 0000 0000 0000 A0: 0220 0000 0001 0000 000D 0000 0300 0000 0000 0000 0000 0000 0000 0000 0000 0000 C0: 0000 0000 0000 0000 0000 0000 0000 0000 2186 0000 0F02 0000 0004 0000 0000 0000 E0: 0000 8000 0000 1408 2233 0011 0000 4567 0000 0044 0004 0000 0F66 1E04 0000 0000 Bus : 00 Device: 31 Function : 01 --> 24DB8086 Vendor : 8086 Device : 24DB (rev 02) - Intel Corporation 82801EB/ER EIDE Controller 00: 8086 24DB 0007 0280 8A02 0101 0000 0000 0001 0000 0001 0000 0001 0000 0001 0000 20: FC01 0000 FC00 FFEF 0000 0000 1043 80A6 0000 0000 0000 0000 0000 0000 0100 0000 40: E377 A303 000B 0000 0007 0211 0000 0000 0000 0000 3030 0000 0000 0000 0000 0000 60: 0008 0000 0000 0000 0008 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 80: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 A0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 C0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 E0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0F66 0004 0000 0000 Bus : 00 Device: 31 Function : 03 --> 24D38086 Vendor : 8086 Device : 24D3 (rev 02) - Intel Corporation 82801EB/ER SMBus Controller 00: 8086 24D3 0001 0280 0002 0C05 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 20: 0401 0000 0000 0000 0000 0000 1043 80A6 0000 0000 0000 0000 0000 0000 020B 0000 40: 0001 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 60: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 80: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 A0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 C0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 E0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0F66 0004 0000 0000 Bus : 00 Device: 31 Function : 05 --> 24D58086 Vendor : 8086 Device : 24D5 (rev 02) - Intel Corporation 82801EB/ER AC'97 Audio Controller 00: 8086 24D5 0007 0290 0002 0401 0000 0000 E801 0000 EE81 0000 B800 FEBF B400 FEBF 20: 0000 0000 0000 0000 0000 0000 1043 80F3 0000 0000 0050 0000 0000 0000 0211 0000 40: 0109 0000 0000 0000 0000 0000 0000 0000 0001 C9C2 0000 0000 0000 0000 0000 0000 60: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 80: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 A0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 C0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 E0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0F66 0004 0000 0000 Bus : 01 Device: 00 Function : 00 --> 49661002 Vendor : 1002 Device : 4966 (rev 01) - ATI Technologies RV250 Radeon 9000/9000 Pro 00: 1002 4966 0187 22B0 0001 0300 FF04 0080 0008 F000 C001 0000 0000 FEAF 0000 0000 20: 0000 0000 0000 0000 0000 0000 1002 0002 0000 FEAC 0058 0000 0000 0000 0110 0008 40: 0000 0000 0000 0000 0000 0000 1002 0002 0001 0602 0000 0000 5002 0020 0217 2F00 60: 0304 1F00 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 80: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 A0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 C0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 E0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 Bus : 01 Device: 00 Function : 01 --> 496E1002 Vendor : 1002 Device : 496E (rev 01) - ATI Technologies RV250 Radeon 9000/9000 Pro - Secondary 00: 1002 496E 0087 02B0 0001 0380 4004 0000 0008 EC00 0000 FEAE 0000 0000 0000 0000 20: 0000 0000 0000 0000 0000 0000 1002 0003 0000 0000 0050 0000 0000 0000 00FF 0008 40: 0000 0000 0000 0000 0000 0000 0000 0000 0001 0602 0000 0000 5002 0020 0217 2F00 60: 0200 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 80: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 A0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 C0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 E0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 Bus : 02 Device: 04 Function : 00 --> 31641106 Vendor : 1106 Device : 3164 (rev 06) - VIA Technologies Inc VT6410 ATA133 RAID Controller 00: 1106 3164 0007 0290 0006 0104 4000 0000 DFE1 0000 DFAD 0000 DFA1 0000 DFA9 0000 20: DF91 0000 0000 0000 0000 0000 1043 80F4 0000 0000 00C0 0000 0000 0000 0117 0000 40: F21B 35C9 2D10 00C0 A8A8 2020 00FF B6B6 0F0F E1E1 0014 0000 A000 0020 0000 0000 60: 0200 0000 0000 0000 0200 0000 0000 0000 0102 0000 0000 0000 0102 0000 0000 0000 80: 5800 022B 0000 0000 5C00 022B 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 A0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 C0: 0001 0002 0000 0000 0000 0000 0000 0000 0006 3164 1043 80F4 0000 0000 0000 0000 E0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 ************************* ISA Dump from address $290 --> <Winbond W83627THF> (ISA at $0290) (No error) 00: 01 FF 01 FF 00 00 00 00 01 01 01 01 3C 3C 0A 0A ............<<.. 10: 01 FF 00 00 00 01 01 3C 42 00 FF FF 24 32 00 D6 .......<B...$2.. 20: 60 C4 D4 BD FF 3B A1 22 DA 7B 76 F0 00 0B 68 BE `....;.".{v...h. 30: 28 5D 7A C8 68 0A 01 ED F0 5C 85 9A 00 96 00 00 (]z.h....\...... 40: 01 00 00 FE FF 00 00 9F 2D 03 01 C4 18 95 00 A3 ........-....... 50: FF FF 00 FF FF FF 00 80 90 20 FF FF 11 04 FF 05 ......... ...... 60: 60 C4 D4 BD FF 3B A1 22 DA 7B 76 F0 00 0B 68 BE `....;.".{v...h. 70: 28 5D 7A C8 68 0A 01 ED F0 5C 85 9A 00 96 00 00 (]z.h....\...... 80: 01 FF 01 FF 00 00 00 00 01 01 01 01 3C 3C 0A 0A ............<<.. 90: 01 FF 00 00 00 01 01 3C 42 00 FF FF 24 32 00 D8 .......<B...$2.. A0: 60 C4 D4 BD FF 3B A1 22 DA 7B 76 F0 00 0B 68 BE `....;.".{v...h. B0: 28 5D 7A C8 68 0A 01 ED F0 5C 85 9A 00 96 00 00 (]z.h....\...... C0: 01 00 00 FE FF 00 00 9F 2D 03 01 C4 18 95 00 A3 ........-....... D0: FF FF 80 FF FF FF 00 80 90 20 FF FF 11 04 FF 05 ......... ...... E0: 60 C4 D4 BD FF 3B A1 22 DA 7B 76 F0 00 0B 68 BE `....;.".{v...h. F0: 28 5D 7A C8 68 0A 01 ED F0 5C 85 9A 00 96 00 00 (]z.h....\...... ************************* SMB Dump from address $2F --> <Winbond W83791D> (SMBus at $0400) (No error) 00: 00 00 00 00 00 00 00 00 00 8A 00 00 01 00 00 FF ................ 10: 00 00 7F 00 00 10 00 00 00 00 00 00 00 00 00 80 ................ 20: 10 05 4D BD 05 05 05 7D FF FF FF 7E 68 00 00 ED ..M....}...~h... 30: B0 31 62 B3 B9 C4 6F AC A2 32 24 23 50 8C FF FF .1b...o..2$#P... 40: 01 30 20 00 00 00 00 50 2F 10 01 44 01 95 00 A3 .0 ....P/..D.... 50: FF FF FF FF FF FF 00 80 72 70 FF 00 00 00 05 FF ........rp...... 60: FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF ................ 70: FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF ................ 80: 01 FF 01 FF 00 00 00 00 01 01 01 01 3C 3C 0A 0A ............<<.. 90: 00 00 00 01 FF 00 00 00 01 01 3C 00 00 00 01 01 ..........<..... A0: FF FF FF 00 00 00 00 00 1A FF 6F 18 00 FF FF FF ..........o..... B0: BC 9A 05 FF 00 38 76 B2 95 38 FF FF 00 91 FF FF .....8v..8...... C0: 7D 80 00 4B 00 50 00 FF 7D 80 00 4B 00 50 00 FF }..K.P..}..K.P.. D0: FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF ................ E0: FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF ................ F0: FF FF 00 FF 00 01 00 FF FF 02 FF 00 00 11 FF 1D ................ SMB Dump from address $44 --> <Unknown> (SMBus at $0400) (No error) 00: 00 00 0F 04 00 00 00 00 00 00 00 00 00 00 00 00 ................ 10: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 20: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 30: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 40: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 50: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 60: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 70: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 80: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 90: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ A0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ C0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ F0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ SMB Dump from address $48 --> <LM75> (SMBus at $0400) (No error) 00: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 10: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 20: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 30: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 40: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 50: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 60: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 70: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 80: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 90: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP A0: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP B0: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP C0: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP D0: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP E0: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP F0: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP SMB Dump from address $49 --> <LM75> (SMBus at $0400) (No error) 00: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 10: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 20: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 30: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 40: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 50: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 60: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 70: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 80: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 90: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP A0: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP B0: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP C0: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP D0: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP E0: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP F0: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP SMB Dump from address $50 --> <RAM> (SMBus at $0400) (No error) 00: 80 08 07 0D 0A 01 40 00 04 50 65 00 82 08 00 01 ......@..Pe..... 10: 0E 04 18 01 02 20 C0 60 70 00 00 3C 28 3C 28 40 ..... .`p..<(<(@ 20: 60 60 40 40 00 00 00 00 00 37 46 28 28 32 00 00 ``@@.....7F((2.. 30: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 10 5F ..............._ 40: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 50: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 60: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 70: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 80: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 90: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ A0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ C0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ F0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ SMB Dump from address $52 --> <RAM> (SMBus at $0400) (No error) 00: 80 08 07 0D 0A 01 40 00 04 50 65 00 82 08 00 01 ......@..Pe..... 10: 0E 04 18 01 02 20 C0 60 70 00 00 3C 28 3C 28 40 ..... .`p..<(<(@ 20: 60 60 40 40 00 00 00 00 00 37 46 28 28 32 00 00 ``@@.....7F((2.. 30: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 10 5F ..............._ 40: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 50: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 60: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 70: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 80: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 90: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ A0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ C0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ F0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ SMB Device at address $61 --> (SMBus at $0400) (No error) SMB Device at address $69 --> (SMBus at $0400) (No error) ************************* Retry attempts info for SMBus at $0400 [ -1]=158 [ 1]=158 ************************* ************************* ************************* Can change fan speeds : DON'T KNOW Can smoothly change fan speeds : DON'T KNOW Can stop fans : DON'T KNOW ************************* Tray icon size : 16x16 UPTIME : 0 days 02:59:41 ************************* I/O properly initialized !!!Exception in reading CPU INFO at startup (2)!!! Linked ISA BUS at $0290 Linked Intel 82801EB ICH5 SMBUS at $0400 Scanning ISA BUS at $0290... Winbond W83627THF (ID=$90) found on ISA at $290 Scanning Intel SMBus at $0400... Winbond W83791D (PLEASE REPORT) (ID=$72) found on SMBus at $2F LM75 found on SMBus at $48 LM75 found on SMBus at $49 SMART Enabled for drive 0 Found ST3120026A (120,0GB) SMART Enabled for drive 1 Found ST3120022A (120,0GB) SMART Enabled for drive 2 Bad Thresholds Checksum Found ST360015A (8,9GB) Bad Thresholds Checksum SMART Enabled for drive 3 Bad Thresholds Checksum Found ST360015A (8,9GB) Bad Thresholds Checksum End of detection *************************** I/O properly initialized !!!Exception in reading CPU INFO at startup (2)!!! Linked ISA BUS at $0290 Linked PCI Starting PCI scan... FUNC_DIS=$0044 Command Register : $0001 I/O Space Enabled Host Configuration Register : $01 SMBus Host Enabled Linked Intel 82801EB ICH5 SMBUS at $0400 HST_CNT=$0C PCI scan done! Scanning ISA BUS at $0290... About to check DELL support PCI scanning is enabled End of DELL support check Winbond W83627THF (ID=$90) found on ISA at $290 [$54]=$FE [$55]=$11 [$56]=$00 -> Temperature sensor diode 1 : Thermistor 2N3904 -> Temperature sensor diode 2 : PII diode -> Temperature sensor diode 3 : Thermistor 2N3904 -> FAN1 divisor : 2 -> FAN2 divisor : 4 -> FAN3 divisor : 8 -> PWM 1 mode : Manual PWM Control -> PWM 2 mode : Manual PWM Control Second pass... Winbond r[$20]=$82 r[$21]=$84 r[$07]=$02 Checking $0370 for SMSC (2)... Checking $0370 for SMSC (1)... Checking $03F0 for SMSC (2)... Checking $03F0 for SMSC (1)... Checking $002E for SMSC (1)... Checking $004E for SMSC (1)... Checking $002E for WINBOND... $002E --> Device ID=$82 Revision=$84 Checking $004E for WINBOND... Checking $0250 for WINBOND... Checking $0370 for WINBOND... Checking $03F0 for WINBOND... Checking $002E for NS... Checking $004E for NS... Checking $002E for ITE (1)... Registers [$002E] : $FF $FF $FF Scanning Intel SMBus at $0400... INTEL ICHx Slave Address found at $44 Winbond W83791D (PLEASE REPORT) (ID=$72) found on SMBus at $2F [$54]=$FF [$55]=$FF [$56]=$FF -> FAN1 divisor : 2 -> FAN2 divisor : 2 -> FAN3 divisor : 2 LM75 found on SMBus at $48 LM75 found on SMBus at $49 About to probe TOSHIBA SUPPORT... End of TOSHIBA SUPPORT probing Version 1.1 03 00000007 SMART Enabled for drive 0 --> S.M.A.R.T. attributes properly read --> S.M.A.R.T. thresholds properly read Start of DEBUG DATA for drive 0 000 : $5A0C $FF3F $37C8 $1000 $0000 $0000 $3F00 $0000 008 : $0000 $0000 $4A33 $3154 $3853 $5451 $2020 $2020 016 : $2020 $2020 $2020 $2020 $0000 $0040 $0400 $2E33 024 : $3630 $2020 $2020 $5453 $3133 $3032 $3230 $4136 032 : $2020 $2020 $2020 $2020 $2020 $2020 $2020 $2020 040 : $2020 $2020 $2020 $2020 $2020 $2020 $2020 $1080 048 : $0000 $002F $0000 $0002 $0002 $0700 $FF3F $1000 056 : $3F00 $10FC $FB00 $1001 $B04B $F90D $0000 $0700 064 : $0300 $7800 $7800 $F000 $7800 $0000 $0000 $0000 072 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 080 : $7E00 $1B00 $6B34 $017D $0340 $6934 $013C $0340 088 : $3F20 $0000 $0000 $FEFE $0000 $7D60 $0080 $0000 096 : $0000 $0000 $0000 $0000 $B04B $F90D $0000 $0000 104 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 112 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 120 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 128 : $0900 $B04B $F90D $B04B $F90D $2020 $0200 $B642 136 : $0000 $008A $063C $0A3C $FFFF $C607 $0001 $0008 144 : $F010 $0010 $0200 $3000 $0000 $0000 $0000 $06FE 152 : $0000 $0200 $0000 $0000 $0000 $0000 $2200 $0B00 160 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 168 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 176 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 184 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 192 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 200 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 208 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 216 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 224 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 232 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 240 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 248 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $A5E5 SMART Structure Revision : $000A ID=$01 NAME=Raw Read Error Rate VALUE=$40 WORST=$3B RAW=$00000A09012C THRSHLD=$06 FLAGS=$000F ID=$03 NAME=Spin Up Time VALUE=$60 WORST=$60 RAW=$000000000000 THRSHLD=$00 FLAGS=$0003 ID=$04 NAME=Start/Stop Count VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$14 FLAGS=$0032 ID=$05 NAME=Reallocated Sector Count VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$24 FLAGS=$0033 ID=$07 NAME=Seek Error Rate VALUE=$3F WORST=$3C RAW=$00000025E3B3 THRSHLD=$1E FLAGS=$000F ID=$09 NAME=Power On Hours Count VALUE=$64 WORST=$64 RAW=$00000000001A THRSHLD=$00 FLAGS=$0032 ID=$0A NAME=Spin Retry Count VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$61 FLAGS=$0013 ID=$0C NAME=Power Cycle Count VALUE=$64 WORST=$64 RAW=$000000000022 THRSHLD=$14 FLAGS=$0032 ID=$C2 NAME=Temperature VALUE=$23 WORST=$2C RAW=$000000000023 THRSHLD=$00 FLAGS=$0022 Current HD temperature is 35C ID=$C3 NAME=Hardware ECC Recovered VALUE=$40 WORST=$3B RAW=$00000A09012C THRSHLD=$00 FLAGS=$001A ID=$C5 NAME=Current Pending Sector VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0012 ID=$C6 NAME=Offline Correctable VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0010 ID=$C7 NAME=UltraATA CRC Error Rate VALUE=$C8 WORST=$C3 RAW=$000000000009 THRSHLD=$00 FLAGS=$003E ID=$C8 NAME=Write Error Rate VALUE=$64 WORST=$FD RAW=$000000000000 THRSHLD=$00 FLAGS=$0000 ID=$CA NAME=TA Increase Count VALUE=$64 WORST=$FD RAW=$000000000000 THRSHLD=$00 FLAGS=$0032 End of DEBUG DATA for drive 0 Found ST3120026A (120,0GB) Found ST3120026A Firmware revision <3.06> (120,0GB) Serial <3JT1S8QT> --> ATA device --> Fixed Drive --> S.M.A.R.T. Supported (enabled) --> Power Management Supported (enabled) --> 48-bit Addressing ($4BB0 $0DF9 $0000 $0000) --> UDMA Mode 0 Supported --> UDMA Mode 1 Supported --> UDMA Mode 2 Supported --> UDMA Mode 3 Supported --> UDMA Mode 4 Supported --> UDMA Mode 5 Supported --> UDMA Mode 5 Active SMART Structure Revision : $000A ID=$01 NAME=Raw Read Error Rate VALUE=$40 WORST=$3B RAW=$00000A09012C THRSHLD=$06 FLAGS=$000F ID=$03 NAME=Spin Up Time VALUE=$60 WORST=$60 RAW=$000000000000 THRSHLD=$00 FLAGS=$0003 ID=$04 NAME=Start/Stop Count VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$14 FLAGS=$0032 ID=$05 NAME=Reallocated Sector Count VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$24 FLAGS=$0033 ID=$07 NAME=Seek Error Rate VALUE=$3F WORST=$3C RAW=$00000025E3B3 THRSHLD=$1E FLAGS=$000F ID=$09 NAME=Power On Hours Count VALUE=$64 WORST=$64 RAW=$00000000001A THRSHLD=$00 FLAGS=$0032 ID=$0A NAME=Spin Retry Count VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$61 FLAGS=$0013 ID=$0C NAME=Power Cycle Count VALUE=$64 WORST=$64 RAW=$000000000022 THRSHLD=$14 FLAGS=$0032 ID=$C2 NAME=Temperature VALUE=$23 WORST=$2C RAW=$000000000023 THRSHLD=$00 FLAGS=$0022 Current HD temperature is 35C ID=$C3 NAME=Hardware ECC Recovered VALUE=$40 WORST=$3B RAW=$00000A09012C THRSHLD=$00 FLAGS=$001A ID=$C5 NAME=Current Pending Sector VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0012 ID=$C6 NAME=Offline Correctable VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0010 ID=$C7 NAME=UltraATA CRC Error Rate VALUE=$C8 WORST=$C3 RAW=$000000000009 THRSHLD=$00 FLAGS=$003E ID=$C8 NAME=Write Error Rate VALUE=$64 WORST=$FD RAW=$000000000000 THRSHLD=$00 FLAGS=$0000 ID=$CA NAME=TA Increase Count VALUE=$64 WORST=$FD RAW=$000000000000 THRSHLD=$00 FLAGS=$0032 Linked S.M.A.R.T. Version 1.1 03 00000007 SMART Enabled for drive 1 --> S.M.A.R.T. attributes properly read --> S.M.A.R.T. thresholds properly read Start of DEBUG DATA for drive 1 000 : $5A0C $FF3F $37C8 $1000 $0000 $0000 $3F00 $0000 008 : $0000 $0000 $4A33 $3054 $5634 $4442 $2020 $2020 016 : $2020 $2020 $2020 $2020 $0000 $0010 $0400 $2E33 024 : $3630 $2020 $2020 $5453 $3133 $3032 $3230 $4132 032 : $2020 $2020 $2020 $2020 $2020 $2020 $2020 $2020 040 : $2020 $2020 $2020 $2020 $2020 $2020 $2020 $1080 048 : $0000 $002F $0000 $0002 $0002 $0700 $FF3F $1000 056 : $3F00 $10FC $FB00 $1001 $B04B $F90D $0000 $0700 064 : $0300 $7800 $7800 $F000 $7800 $0000 $0000 $0000 072 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 080 : $7E00 $1B00 $6B34 $017D $0340 $6934 $013C $0340 088 : $3F20 $0000 $0000 $FEFE $0000 $006D $0080 $0000 096 : $0000 $0000 $0000 $0000 $B04B $F90D $0000 $0000 104 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 112 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 120 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 128 : $0100 $B04B $F90D $B04B $F90D $2020 $0200 $B642 136 : $0000 $008A $063C $0A3C $FFFF $C607 $0001 $0008 144 : $D009 $0004 $0200 $3000 $0000 $0000 $0000 $06FE 152 : $0000 $0200 $0000 $0000 $0000 $0000 $2200 $0B00 160 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 168 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 176 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 184 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 192 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 200 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 208 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 216 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 224 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 232 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 240 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 248 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $A5E5 SMART Structure Revision : $000A ID=$01 NAME=Raw Read Error Rate VALUE=$41 WORST=$40 RAW=$00000C46879B THRSHLD=$06 FLAGS=$000F ID=$03 NAME=Spin Up Time VALUE=$62 WORST=$61 RAW=$000000000000 THRSHLD=$00 FLAGS=$0003 ID=$04 NAME=Start/Stop Count VALUE=$64 WORST=$64 RAW=$000000000001 THRSHLD=$14 FLAGS=$0032 ID=$05 NAME=Reallocated Sector Count VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$24 FLAGS=$0033 ID=$07 NAME=Seek Error Rate VALUE=$40 WORST=$3C RAW=$00000029BE85 THRSHLD=$1E FLAGS=$000F ID=$09 NAME=Power On Hours Count VALUE=$64 WORST=$64 RAW=$000000000021 THRSHLD=$00 FLAGS=$0032 ID=$0A NAME=Spin Retry Count VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$61 FLAGS=$0013 ID=$0C NAME=Power Cycle Count VALUE=$64 WORST=$64 RAW=$000000000028 THRSHLD=$14 FLAGS=$0032 ID=$C2 NAME=Temperature VALUE=$27 WORST=$34 RAW=$000000000027 THRSHLD=$00 FLAGS=$0022 Current HD temperature is 39C ID=$C3 NAME=Hardware ECC Recovered VALUE=$41 WORST=$40 RAW=$00000C46879B THRSHLD=$00 FLAGS=$001A ID=$C5 NAME=Current Pending Sector VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0012 ID=$C6 NAME=Offline Correctable VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0010 ID=$C7 NAME=UltraATA CRC Error Rate VALUE=$C8 WORST=$BD RAW=$00000000000B THRSHLD=$00 FLAGS=$003E ID=$C8 NAME=Write Error Rate VALUE=$64 WORST=$FD RAW=$000000000000 THRSHLD=$00 FLAGS=$0000 ID=$CA NAME=TA Increase Count VALUE=$64 WORST=$FD RAW=$000000000000 THRSHLD=$00 FLAGS=$0032 End of DEBUG DATA for drive 1 Found ST3120022A (120,0GB) Found ST3120022A Firmware revision <3.06> (120,0GB) Serial <3JT04VBD> --> ATA device --> Fixed Drive --> S.M.A.R.T. Supported (enabled) --> Power Management Supported (enabled) --> 48-bit Addressing ($4BB0 $0DF9 $0000 $0000) --> UDMA Mode 0 Supported --> UDMA Mode 1 Supported --> UDMA Mode 2 Supported --> UDMA Mode 3 Supported --> UDMA Mode 4 Supported --> UDMA Mode 5 Supported --> UDMA Mode 5 Active SMART Structure Revision : $000A ID=$01 NAME=Raw Read Error Rate VALUE=$41 WORST=$40 RAW=$00000C46879B THRSHLD=$06 FLAGS=$000F ID=$03 NAME=Spin Up Time VALUE=$62 WORST=$61 RAW=$000000000000 THRSHLD=$00 FLAGS=$0003 ID=$04 NAME=Start/Stop Count VALUE=$64 WORST=$64 RAW=$000000000001 THRSHLD=$14 FLAGS=$0032 ID=$05 NAME=Reallocated Sector Count VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$24 FLAGS=$0033 ID=$07 NAME=Seek Error Rate VALUE=$40 WORST=$3C RAW=$00000029BE85 THRSHLD=$1E FLAGS=$000F ID=$09 NAME=Power On Hours Count VALUE=$64 WORST=$64 RAW=$000000000021 THRSHLD=$00 FLAGS=$0032 ID=$0A NAME=Spin Retry Count VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$61 FLAGS=$0013 ID=$0C NAME=Power Cycle Count VALUE=$64 WORST=$64 RAW=$000000000028 THRSHLD=$14 FLAGS=$0032 ID=$C2 NAME=Temperature VALUE=$27 WORST=$34 RAW=$000000000027 THRSHLD=$00 FLAGS=$0022 Current HD temperature is 39C ID=$C3 NAME=Hardware ECC Recovered VALUE=$41 WORST=$40 RAW=$00000C46879B THRSHLD=$00 FLAGS=$001A ID=$C5 NAME=Current Pending Sector VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0012 ID=$C6 NAME=Offline Correctable VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0010 ID=$C7 NAME=UltraATA CRC Error Rate VALUE=$C8 WORST=$BD RAW=$00000000000B THRSHLD=$00 FLAGS=$003E ID=$C8 NAME=Write Error Rate VALUE=$64 WORST=$FD RAW=$000000000000 THRSHLD=$00 FLAGS=$0000 ID=$CA NAME=TA Increase Count VALUE=$64 WORST=$FD RAW=$000000000000 THRSHLD=$00 FLAGS=$0032 SMART Enabled for drive 2 --> S.M.A.R.T. attributes properly read --> S.M.A.R.T. thresholds properly read Start of DEBUG DATA for drive 2 000 : $0000 $A5C5 $37C8 $1000 $0000 $0000 $3F00 $0000 008 : $0000 $0000 $4B33 $3043 $3346 $524D $2020 $2020 016 : $2020 $2020 $2020 $2020 $0000 $0010 $0400 $2E33 024 : $3333 $2020 $2020 $5453 $3633 $3030 $3531 $2041 032 : $2020 $2020 $2020 $2020 $2020 $2020 $2020 $2020 040 : $2020 $2020 $2020 $2020 $2020 $2020 $2020 $1080 048 : $0000 $002F $0000 $0002 $0002 $0700 $FF3F $1000 056 : $3F00 $10FC $FB00 $0700 $0300 $1001 $0700 $3F20 064 : $015B $0340 $30CF $FC06 $0000 $0000 $7E00 $1B00 072 : $0000 $0000 $D8D9 $1002 $0000 $0000 $0000 $0000 080 : $0400 $0000 $0000 $0000 $0000 $0000 $0000 $0000 088 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 096 : $0000 $0000 $3130 $7472 $0000 $0000 $3C04 $C081 104 : $0000 $0000 $0400 $0000 $BC61 $2382 $0000 $0000 112 : $1600 $0100 $4600 $2402 $4E74 $6669 $08F4 $C281 120 : $0000 $0000 $4100 $0800 $0000 $0000 $0000 $0000 128 : $0200 $0000 $0000 $0000 $0000 $0000 $00F1 $3C82 136 : $0000 $0000 $1805 $C081 $0000 $0000 $4805 $C081 144 : $4805 $C081 $5005 $C081 $5005 $C081 $0000 $0000 152 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 160 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 168 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 176 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 184 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 192 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 200 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 208 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 216 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 224 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 232 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 240 : $0000 $0000 $0000 $0000 $0000 $0000 $083B $C781 248 : $E06B $3DF8 $0000 $0000 $0000 $0000 $2300 $0100 SMART Structure Revision : $000A Bad Thresholds Checksum ID=$01 NAME=Raw Read Error Rate VALUE=$46 WORST=$43 RAW=$0000024D5291 THRSHLD=$00 FLAGS=$000F ID=$03 NAME=Spin Up Time VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0003 ID=$04 NAME=Start/Stop Count VALUE=$64 WORST=$64 RAW=$00000000005F THRSHLD=$00 FLAGS=$0032 ID=$05 NAME=Reallocated Sector Count VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0033 ID=$07 NAME=Seek Error Rate VALUE=$4B WORST=$3C RAW=$00000207724C THRSHLD=$00 FLAGS=$000F ID=$09 NAME=Power On Hours Count VALUE=$63 WORST=$63 RAW=$00000000038C THRSHLD=$00 FLAGS=$0032 ID=$0A NAME=Spin Retry Count VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0013 ID=$0C NAME=Power Cycle Count VALUE=$64 WORST=$64 RAW=$000000000100 THRSHLD=$00 FLAGS=$0032 ID=$C2 NAME=Temperature VALUE=$26 WORST=$37 RAW=$000000000026 THRSHLD=$00 FLAGS=$0022 Current HD temperature is 38C ID=$C3 NAME=Hardware ECC Recovered VALUE=$46 WORST=$43 RAW=$0000024D5291 THRSHLD=$00 FLAGS=$001A ID=$C5 NAME=Current Pending Sector VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0012 ID=$C6 NAME=Offline Correctable VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0010 ID=$C7 NAME=UltraATA CRC Error Rate VALUE=$C8 WORST=$C4 RAW=$000000000008 THRSHLD=$00 FLAGS=$003E ID=$C8 NAME=Write Error Rate VALUE=$64 WORST=$FD RAW=$000000000000 THRSHLD=$00 FLAGS=$0000 ID=$CA NAME=TA Increase Count VALUE=$64 WORST=$FD RAW=$000000000000 THRSHLD=$00 FLAGS=$0032 End of DEBUG DATA for drive 2 Found ST360015A (8,9GB) Found ST360015A Firmware revision <3.33> (8,9GB) Serial <3KC0F3MR> --> ATA device SMART Structure Revision : $000A Bad Thresholds Checksum ID=$01 NAME=Raw Read Error Rate VALUE=$46 WORST=$43 RAW=$0000024D5291 THRSHLD=$00 FLAGS=$000F ID=$03 NAME=Spin Up Time VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0003 ID=$04 NAME=Start/Stop Count VALUE=$64 WORST=$64 RAW=$00000000005F THRSHLD=$00 FLAGS=$0032 ID=$05 NAME=Reallocated Sector Count VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0033 ID=$07 NAME=Seek Error Rate VALUE=$4B WORST=$3C RAW=$00000207724C THRSHLD=$00 FLAGS=$000F ID=$09 NAME=Power On Hours Count VALUE=$63 WORST=$63 RAW=$00000000038C THRSHLD=$00 FLAGS=$0032 ID=$0A NAME=Spin Retry Count VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0013 ID=$0C NAME=Power Cycle Count VALUE=$64 WORST=$64 RAW=$000000000100 THRSHLD=$00 FLAGS=$0032 ID=$C2 NAME=Temperature VALUE=$26 WORST=$37 RAW=$000000000026 THRSHLD=$00 FLAGS=$0022 Current HD temperature is 38C ID=$C3 NAME=Hardware ECC Recovered VALUE=$46 WORST=$43 RAW=$0000024D5291 THRSHLD=$00 FLAGS=$001A ID=$C5 NAME=Current Pending Sector VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0012 ID=$C6 NAME=Offline Correctable VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0010 ID=$C7 NAME=UltraATA CRC Error Rate VALUE=$C8 WORST=$C4 RAW=$000000000008 THRSHLD=$00 FLAGS=$003E ID=$C8 NAME=Write Error Rate VALUE=$64 WORST=$FD RAW=$000000000000 THRSHLD=$00 FLAGS=$0000 ID=$CA NAME=TA Increase Count VALUE=$64 WORST=$FD RAW=$000000000000 THRSHLD=$00 FLAGS=$0032 SMART Enabled for drive 3 --> S.M.A.R.T. attributes properly read --> S.M.A.R.T. thresholds properly read Start of DEBUG DATA for drive 3 000 : $5A0C $FF3F $37C8 $1000 $0000 $0000 $3F00 $0000 008 : $0000 $0000 $4B33 $3042 $5948 $3748 $2020 $2020 016 : $2020 $2020 $2020 $2020 $0000 $0010 $0400 $2E33 024 : $3335 $2020 $2020 $5453 $3633 $3030 $3531 $2041 032 : $2020 $2020 $2020 $2020 $2020 $2020 $2020 $2020 040 : $2020 $2020 $2020 $2020 $2020 $2020 $2020 $1080 048 : $0000 $002F $0000 $0002 $0002 $0700 $FF3F $1000 056 : $3F00 $10FC $FB00 $0700 $0300 $1001 $0700 $3F20 064 : $015B $0340 $30CF $FC06 $0000 $0000 $7E00 $1B00 072 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $C800 080 : $0000 $0000 $0000 $0000 $0000 $CA00 $0000 $0000 088 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 096 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 104 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 112 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 120 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 128 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 136 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 144 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 152 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 160 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 168 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 176 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 184 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 192 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 200 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 208 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 216 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 224 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 232 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 240 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 248 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0089 SMART Structure Revision : $000A Bad Thresholds Checksum ID=$01 NAME=Raw Read Error Rate VALUE=$46 WORST=$43 RAW=$0000024D5297 THRSHLD=$00 FLAGS=$000F ID=$03 NAME=Spin Up Time VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0003 ID=$04 NAME=Start/Stop Count VALUE=$64 WORST=$64 RAW=$00000000005F THRSHLD=$00 FLAGS=$0032 ID=$05 NAME=Reallocated Sector Count VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0033 ID=$07 NAME=Seek Error Rate VALUE=$4B WORST=$3C RAW=$00000207726A THRSHLD=$00 FLAGS=$000F ID=$09 NAME=Power On Hours Count VALUE=$63 WORST=$63 RAW=$00000000038C THRSHLD=$00 FLAGS=$0032 ID=$0A NAME=Spin Retry Count VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0013 ID=$0C NAME=Power Cycle Count VALUE=$64 WORST=$64 RAW=$000000000100 THRSHLD=$00 FLAGS=$0032 ID=$C2 NAME=Temperature VALUE=$26 WORST=$37 RAW=$000000000026 THRSHLD=$00 FLAGS=$0022 Current HD temperature is 38C ID=$C3 NAME=Hardware ECC Recovered VALUE=$46 WORST=$43 RAW=$0000024D5297 THRSHLD=$00 FLAGS=$001A ID=$C5 NAME=Current Pending Sector VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0012 ID=$C6 NAME=Offline Correctable VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0010 ID=$C7 NAME=UltraATA CRC Error Rate VALUE=$C8 WORST=$C4 RAW=$000000000008 THRSHLD=$00 FLAGS=$003E ID=$C8 NAME=Write Error Rate VALUE=$64 WORST=$FD RAW=$000000000000 THRSHLD=$00 FLAGS=$0000 ID=$CA NAME=TA Increase Count VALUE=$64 WORST=$FD RAW=$000000000000 THRSHLD=$00 FLAGS=$0032 End of DEBUG DATA for drive 3 Found ST360015A (8,9GB) Found ST360015A Firmware revision <3.53> (8,9GB) Serial <3KB0HYH7> --> ATA device --> Fixed Drive SMART Structure Revision : $000A Bad Thresholds Checksum ID=$01 NAME=Raw Read Error Rate VALUE=$46 WORST=$43 RAW=$0000024D5297 THRSHLD=$00 FLAGS=$000F ID=$03 NAME=Spin Up Time VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0003 ID=$04 NAME=Start/Stop Count VALUE=$64 WORST=$64 RAW=$00000000005F THRSHLD=$00 FLAGS=$0032 ID=$05 NAME=Reallocated Sector Count VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0033 ID=$07 NAME=Seek Error Rate VALUE=$4B WORST=$3C RAW=$00000207726A THRSHLD=$00 FLAGS=$000F ID=$09 NAME=Power On Hours Count VALUE=$63 WORST=$63 RAW=$00000000038C THRSHLD=$00 FLAGS=$0032 ID=$0A NAME=Spin Retry Count VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0013 ID=$0C NAME=Power Cycle Count VALUE=$64 WORST=$64 RAW=$000000000100 THRSHLD=$00 FLAGS=$0032 ID=$C2 NAME=Temperature VALUE=$26 WORST=$37 RAW=$000000000026 THRSHLD=$00 FLAGS=$0022 Current HD temperature is 38C ID=$C3 NAME=Hardware ECC Recovered VALUE=$46 WORST=$43 RAW=$0000024D5297 THRSHLD=$00 FLAGS=$001A ID=$C5 NAME=Current Pending Sector VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0012 ID=$C6 NAME=Offline Correctable VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0010 ID=$C7 NAME=UltraATA CRC Error Rate VALUE=$C8 WORST=$C4 RAW=$000000000008 THRSHLD=$00 FLAGS=$003E ID=$C8 NAME=Write Error Rate VALUE=$64 WORST=$FD RAW=$000000000000 THRSHLD=$00 FLAGS=$0000 ID=$CA NAME=TA Increase Count VALUE=$64 WORST=$FD RAW=$000000000000 THRSHLD=$00 FLAGS=$0032 End of detection Reading Cfg Version 2.01 Old sensor properly detected --> Winbond W83627THF on ISA @ $290 Old sensor properly detected --> Winbond W83791D on Intel SMBus @ $2F Old sensor properly detected --> LM75 on Intel SMBus @ $48 Old sensor properly detected --> LM75 on Intel SMBus @ $49 Old sensor properly detected --> HD0 (120,0GB) on SMART @ $0 Old sensor properly detected --> HD1 (120,0GB) on SMART @ $1 PWM from Winbond W83627THF@$290(onISA@$290) --> Speed01 0 100 properly added PWM from Winbond W83627THF@$290(onISA@$290) --> Speed02 0 100 properly added PWM from Winbond W83791D@$2F(onSMBusIntel@$400) --> Speed03 0 100 properly added PWM from Winbond W83791D@$2F(onSMBusIntel@$400) --> Speed04 0 100 properly added PWM from Winbond W83791D@$2F(onSMBusIntel@$400) --> Speed05 0 100 properly added PWM from Winbond W83791D@$2F(onSMBusIntel@$400) --> Speed06 0 100 properly added PWM from Winbond W83791D@$2F(onSMBusIntel@$400) --> Speed07 0 100 properly added Temperature from Winbond W83627THF@$290(onISA@$290) --> Temp3 40 50 0 PWM 1 from 0 PWM 2 from 0 PWM 1 from 1 PWM 2 from 1 PWM 3 from 1 PWM 4 from 1 PWM 5 from 1 properly added Temperature from ST3120022A3JT04VBD --> HD1 40 50 0 PWM 1 from 0 PWM 2 from 0 PWM 1 from 1 PWM 2 from 1 PWM 3 from 1 PWM 4 from 1 PWM 5 from 1 properly added Temperature from Winbond W83627THF@$290(onISA@$290) --> Temp1 40 50 0 PWM 1 from 0 PWM 2 from 0 PWM 1 from 1 PWM 2 from 1 PWM 3 from 1 PWM 4 from 1 PWM 5 from 1 properly added Temperature from ST3120026A3JT1S8QT --> HD0 40 50 0 PWM 1 from 0 PWM 2 from 0 PWM 1 from 1 PWM 2 from 1 PWM 3 from 1 PWM 4 from 1 PWM 5 from 1 properly added Temperature from Winbond W83627THF@$290(onISA@$290) --> Temp2 40 50 0 PWM 1 from 0 PWM 2 from 0 PWM 1 from 1 PWM 2 from 1 PWM 3 from 1 PWM 4 from 1 PWM 5 from 1 properly added Temperature from Winbond W83791D@$2F(onSMBusIntel@$400) --> Temp1 40 50 0 PWM 1 from 0 PWM 2 from 0 PWM 1 from 1 PWM 2 from 1 PWM 3 from 1 PWM 4 from 1 PWM 5 from 1 properly added Temperature from Winbond W83791D@$2F(onSMBusIntel@$400) --> Temp2 40 50 0 PWM 1 from 0 PWM 2 from 0 PWM 1 from 1 PWM 2 from 1 PWM 3 from 1 PWM 4 from 1 PWM 5 from 1 properly added Temperature from Winbond W83791D@$2F(onSMBusIntel@$400) --> Temp3 40 50 0 PWM 1 from 0 PWM 2 from 0 PWM 1 from 1 PWM 2 from 1 PWM 3 from 1 PWM 4 from 1 PWM 5 from 1 properly added Temperature from LM75@$48(onSMBusIntel@$400) --> Temp 40 50 0 PWM 1 from 0 PWM 2 from 0 PWM 1 from 1 PWM 2 from 1 PWM 3 from 1 PWM 4 from 1 PWM 5 from 1 properly added Temperature from LM75@$49(onSMBusIntel@$400) --> Temp 40 50 0 PWM 1 from 0 PWM 2 from 0 PWM 1 from 1 PWM 2 from 1 PWM 3 from 1 PWM 4 from 1 PWM 5 from 1 properly added Fan from Winbond W83627THF@$290(onISA@$290) --> Fan01 properly added Fan from Winbond W83627THF@$290(onISA@$290) --> Fan02 properly added Fan from Winbond W83627THF@$290(onISA@$290) --> Fan03 properly added Fan from Winbond W83791D@$2F(onSMBusIntel@$400) --> Fan04 properly added Fan from Winbond W83791D@$2F(onSMBusIntel@$400) --> Fan05 properly added Fan from Winbond W83791D@$2F(onSMBusIntel@$400) --> Fan06 properly added Volt from Winbond W83627THF@$290(onISA@$290) --> Vcore properly added Volt from Winbond W83627THF@$290(onISA@$290) --> +12V properly added Volt from Winbond W83627THF@$290(onISA@$290) --> 3.3V properly added Volt from Winbond W83627THF@$290(onISA@$290) --> Vcc properly added Volt from Winbond W83627THF@$290(onISA@$290) --> Vin2 properly added Volt from Winbond W83627THF@$290(onISA@$290) --> 5Vsb properly added Volt from Winbond W83627THF@$290(onISA@$290) --> Vbat properly added report2.txt (65,375 bytes)

abzac 2004-07-13 13:37 reporter ~0000136	new beta is better, but it detect wrong disk size beta13.gif report2.txt

alfredo 2004-07-13 13:44 manager ~0000137	WOW! We are getting nice results here! Now you can properly read SMART attributes and HDD temps. There are a couple of things that need to be fixed. I'm going to work on them right now :-)

alfredo 2004-07-13 15:10 manager ~0000138	Ok: later this evening I'll get back to you with the ultimate beta that will fix reported HD size too :-)

alfredo 2004-07-13 20:43 manager ~0000139	New beta. Same URL as before :-)

2004-07-14 10:50	Report3.txt (59,518 bytes) SpeedFan version : SpeedFan 4.14 beta 16 Motherboard model : ASUS P4P800 Deluxe *************************** BIOS CopyRight : A M I - 2000423BIOS Date: 02/23/04 12:18:46 Ver: 08.00.09BIOS Date: 02/23/04 12:18:46 Ver: 08.00.09 BIOS Date : 02/23/04 BIOS Extended Info : BIOS Name : AT/AT COMPATIBLE Windows NT Multiprocessor Free version 5.1.2600 2 processor(s) Intel Celeron Northwood-128 (nD1) (0.13 �m) family 15 model 2 stepping 9 brand 9 1 MHz (0KB level 1 - 0KB level 2) Running at 1 MHz (1000) I Agree to receive beta versions : ON ************************* Winbond W83627THF on ISA at $290 Temp1 : 34,0 min=33,0 max=34,0 mean=34,0 Winbond W83627THF on ISA at $290 Temp2 : 31,5 min=30,0 max=33,5 mean=32,1 Winbond W83627THF on ISA at $290 Temp3 : -48,0 min=-48,0 max=-48,0 mean=-48,0 Winbond W83627THF on ISA at $290 Fan1 : 3140 min=3082 max=3140 mean=3121 Winbond W83627THF on ISA at $290 Fan2 : 2766 min=2722 max=2766 mean=2744 Winbond W83627THF on ISA at $290 Fan3 : 1406 min=1395 max=1418 mean=1406 Winbond W83627THF on ISA at $290 Pwm1 : 100% min=100% max=100% mean=100% Winbond W83627THF on ISA at $290 Pwm2 : 100% min=100% max=100% mean=100% Winbond W83627THF on ISA at $290 Vcore : 1,54 min=1,54 max=1,60 mean=1,59 Winbond W83627THF on ISA at $290 +12V : 11,80 min=11,80 max=12,04 mean=11,96 Winbond W83627THF on ISA at $290 3.3V : 3,38 min=3,34 max=3,39 mean=3,37 Winbond W83627THF on ISA at $290 Vcc : 5,07 min=4,99 max=5,07 mean=5,03 Winbond W83627THF on ISA at $290 Vin2 : 0,00 min=0,00 max=0,00 mean=0,00 Winbond W83627THF on ISA at $290 5Vsb : 5,01 min=5,01 max=5,07 mean=5,04 Winbond W83627THF on ISA at $290 Vbat : 0,00 min=0,00 max=0,00 mean=0,00 [$00]=$01 [$01]=$FF [$02]=$01 [$03]=$FF [$04]=$00 [$05]=$00 [$06]=$00 [$07]=$00 [$08]=$01 [$09]=$01 [$0A]=$01 [$0B]=$01 [$0C]=$3C [$0D]=$3C [$0E]=$0A [$0F]=$0A [$10]=$01 [$11]=$FF [$12]=$00 [$13]=$00 [$14]=$00 [$15]=$01 [$16]=$01 [$17]=$3C [$18]=$42 [$19]=$00 [$1A]=$FF [$1B]=$FF [$1C]=$24 [$1D]=$32 [$1E]=$00 [$1F]=$E2 [$20]=$60 [$21]=$C2 [$22]=$D3 [$23]=$BE [$24]=$FF [$25]=$3B [$26]=$A1 [$27]=$22 [$28]=$D7 [$29]=$7B [$2A]=$78 [$2B]=$F0 [$2C]=$00 [$2D]=$9B [$2E]=$68 [$2F]=$BE [$30]=$28 [$31]=$5D [$32]=$7A [$33]=$C8 [$34]=$68 [$35]=$4A [$36]=$01 [$37]=$F5 [$38]=$F8 [$39]=$5C [$3A]=$85 [$3B]=$9A [$3C]=$00 [$3D]=$9E [$3E]=$00 [$3F]=$00 [$40]=$03 [$41]=$00 [$42]=$00 [$43]=$FE [$44]=$FF [$45]=$00 [$46]=$00 [$47]=$9F [$48]=$2D [$49]=$03 [$4A]=$01 [$4B]=$C4 [$4C]=$18 [$4D]=$95 [$4E]=$00 [$4F]=$A3 [$50]=$FF [$51]=$FF [$52]=$80 [$53]=$FF [$54]=$FF [$55]=$FF [$56]=$00 [$57]=$80 [$58]=$90 [$59]=$20 [$5A]=$FF [$5B]=$FF [$5C]=$11 [$5D]=$04 [$5E]=$FF [$5F]=$05 [$60]=$60 [$61]=$C2 [$62]=$D3 [$63]=$BE [$64]=$FF [$65]=$3B [$66]=$A1 [$67]=$22 [$68]=$D7 [$69]=$7B [$6A]=$78 [$6B]=$F0 [$6C]=$00 [$6D]=$9B [$6E]=$68 [$6F]=$BE [$70]=$28 [$71]=$5D [$72]=$7A [$73]=$C8 [$74]=$68 [$75]=$4A [$76]=$01 [$77]=$F5 [$78]=$F8 [$79]=$5C [$7A]=$85 [$7B]=$9A [$7C]=$00 [$7D]=$9E [$7E]=$00 [$7F]=$00 [$80]=$01 [$81]=$FF [$82]=$01 [$83]=$FF [$84]=$00 [$85]=$00 [$86]=$00 [$87]=$00 [$88]=$01 [$89]=$01 [$8A]=$01 [$8B]=$01 [$8C]=$3C [$8D]=$3C [$8E]=$0A [$8F]=$0A [$90]=$01 [$91]=$FF [$92]=$00 [$93]=$00 [$94]=$00 [$95]=$01 [$96]=$01 [$97]=$3C [$98]=$42 [$99]=$00 [$9A]=$FF [$9B]=$FF [$9C]=$24 [$9D]=$32 [$9E]=$00 [$9F]=$E2 [$A0]=$60 [$A1]=$C2 [$A2]=$D3 [$A3]=$BE [$A4]=$FF [$A5]=$3B [$A6]=$A1 [$A7]=$22 [$A8]=$D7 [$A9]=$7B [$AA]=$78 [$AB]=$F0 [$AC]=$00 [$AD]=$9B [$AE]=$68 [$AF]=$BE [$B0]=$28 [$B1]=$5D [$B2]=$7A [$B3]=$C8 [$B4]=$68 [$B5]=$4A [$B6]=$01 [$B7]=$F5 [$B8]=$F8 [$B9]=$5C [$BA]=$85 [$BB]=$9A [$BC]=$00 [$BD]=$9E [$BE]=$00 [$BF]=$00 [$C0]=$03 [$C1]=$00 [$C2]=$00 [$C3]=$FE [$C4]=$FF [$C5]=$00 [$C6]=$00 [$C7]=$9F [$C8]=$2D [$C9]=$03 [$CA]=$01 [$CB]=$C4 [$CC]=$18 [$CD]=$95 [$CE]=$00 [$CF]=$A3 [$D0]=$FF [$D1]=$FF [$D2]=$80 [$D3]=$FF [$D4]=$FF [$D5]=$FF [$D6]=$00 [$D7]=$80 [$D8]=$90 [$D9]=$20 [$DA]=$FF [$DB]=$FF [$DC]=$11 [$DD]=$04 [$DE]=$FF [$DF]=$05 [$E0]=$60 [$E1]=$C2 [$E2]=$D3 [$E3]=$BE [$E4]=$FF [$E5]=$3B [$E6]=$A1 [$E7]=$22 [$E8]=$D7 [$E9]=$7B [$EA]=$78 [$EB]=$F0 [$EC]=$00 [$ED]=$9B [$EE]=$68 [$EF]=$BE [$F0]=$28 [$F1]=$5D [$F2]=$7A [$F3]=$C8 [$F4]=$68 [$F5]=$4A [$F6]=$01 [$F7]=$F5 [$F8]=$F8 [$F9]=$5C [$FA]=$85 [$FB]=$9A [$FC]=$00 [$FD]=$9E [$FE]=$00 [$FF]=$00 Bank 0 --> [$50]=$FF [$51]=$FF [$52]=$80 [$53]=$FF [$54]=$FF [$55]=$FF [$56]=$00 [$57]=$80 [$58]=$90 [$59]=$20 [$5A]=$FF [$5B]=$FF [$5C]=$11 [$5D]=$04 [$5E]=$FF [$5F]=$05 Bank 1 --> [$50]=$1E [$51]=$80 [$52]=$00 [$53]=$4B [$54]=$00 [$55]=$50 [$56]=$00 [$57]=$FF [$58]=$FF [$59]=$FF [$5A]=$FF [$5B]=$FF [$5C]=$FF [$5D]=$FF [$5E]=$FF [$5F]=$FF Bank 2 --> [$50]=$D0 [$51]=$00 [$52]=$00 [$53]=$4B [$54]=$00 [$55]=$50 [$56]=$00 [$57]=$FF [$58]=$FF [$59]=$FF [$5A]=$FF [$5B]=$FF [$5C]=$FF [$5D]=$FF [$5E]=$FF [$5F]=$FF Bank 3 --> [$50]=$FF [$51]=$FF [$52]=$FF [$53]=$FF [$54]=$FF [$55]=$FF [$56]=$FF [$57]=$FF [$58]=$FF [$59]=$FF [$5A]=$FF [$5B]=$FF [$5C]=$FF [$5D]=$FF [$5E]=$FF [$5F]=$FF Bank 4 --> [$50]=$00 [$51]=$13 [$52]=$00 [$53]=$00 [$54]=$FE [$55]=$11 [$56]=$00 [$57]=$00 [$58]=$1B [$59]=$CE [$5A]=$01 [$5B]=$03 [$5C]=$11 [$5D]=$00 [$5E]=$FF [$5F]=$FF Bank 5 --> [$50]=$BC [$51]=$03 [$52]=$00 [$53]=$00 [$54]=$10 [$55]=$06 [$56]=$D8 [$57]=$8D [$58]=$00 [$59]=$00 [$5A]=$00 [$5B]=$00 [$5C]=$00 [$5D]=$00 [$5E]=$00 [$5F]=$00 Bank 6 --> [$50]=$C8 [$51]=$FD [$52]=$2C [$53]=$5A [$54]=$32 [$55]=$2F [$56]=$2E [$57]=$2D [$58]=$C8 [$59]=$FD [$5A]=$2C [$5B]=$5A [$5C]=$32 [$5D]=$2F [$5E]=$2E [$5F]=$2D Bank 7 --> [$50]=$FF [$51]=$FF [$52]=$FF [$53]=$FF [$54]=$FF [$55]=$FF [$56]=$FF [$57]=$FF [$58]=$FF [$59]=$FF [$5A]=$FF [$5B]=$FF [$5C]=$FF [$5D]=$FF [$5E]=$FF [$5F]=$FF Winbond W83791D on Intel SMBus at $2F Temp1 : 125,0 min=125,0 max=125,0 mean=125,0 Winbond W83791D on Intel SMBus at $2F Temp2 : 125,0 min=125,0 max=125,0 mean=125,0 Winbond W83791D on Intel SMBus at $2F Temp3 : -127,5 min=-127,5 max=-127,5 mean=-127,5 Winbond W83791D on Intel SMBus at $2F Fan1 : 0 min=0 max=0 mean=0 Winbond W83791D on Intel SMBus at $2F Fan2 : 0 min=0 max=0 mean=0 Winbond W83791D on Intel SMBus at $2F Fan3 : 0 min=0 max=0 mean=0 Winbond W83791D on Intel SMBus at $2F Pwm1 : 100% min=100% max=100% mean=100% Winbond W83791D on Intel SMBus at $2F Pwm2 : 100% min=100% max=100% mean=100% Winbond W83791D on Intel SMBus at $2F Pwm3 : 100% min=100% max=100% mean=100% Winbond W83791D on Intel SMBus at $2F Pwm4 : 100% min=100% max=100% mean=100% Winbond W83791D on Intel SMBus at $2F Pwm5 : 100% min=100% max=100% mean=100% [$00]=$00 [$01]=$00 [$02]=$00 [$03]=$00 [$04]=$00 [$05]=$00 [$06]=$00 [$07]=$00 [$08]=$00 [$09]=$8A [$0A]=$00 [$0B]=$00 [$0C]=$01 [$0D]=$00 [$0E]=$00 [$0F]=$FF [$10]=$00 [$11]=$00 [$12]=$7F [$13]=$00 [$14]=$00 [$15]=$10 [$16]=$00 [$17]=$00 [$18]=$00 [$19]=$00 [$1A]=$00 [$1B]=$00 [$1C]=$00 [$1D]=$00 [$1E]=$00 [$1F]=$80 [$20]=$11 [$21]=$05 [$22]=$4E [$23]=$BE [$24]=$05 [$25]=$05 [$26]=$05 [$27]=$7D [$28]=$FF [$29]=$FF [$2A]=$FF [$2B]=$7E [$2C]=$68 [$2D]=$00 [$2E]=$00 [$2F]=$ED [$30]=$B0 [$31]=$39 [$32]=$62 [$33]=$B3 [$34]=$B9 [$35]=$C4 [$36]=$6F [$37]=$AC [$38]=$A2 [$39]=$32 [$3A]=$24 [$3B]=$23 [$3C]=$54 [$3D]=$8C [$3E]=$FF [$3F]=$FF [$40]=$01 [$41]=$FF [$42]=$6F [$43]=$00 [$44]=$00 [$45]=$00 [$46]=$00 [$47]=$50 [$48]=$2F [$49]=$10 [$4A]=$01 [$4B]=$44 [$4C]=$01 [$4D]=$95 [$4E]=$00 [$4F]=$A3 [$50]=$FF [$51]=$FF [$52]=$FF [$53]=$FF [$54]=$FF [$55]=$FF [$56]=$00 [$57]=$80 [$58]=$72 [$59]=$70 [$5A]=$FF [$5B]=$00 [$5C]=$00 [$5D]=$00 [$5E]=$05 [$5F]=$FF [$60]=$FF [$61]=$FF [$62]=$FF [$63]=$FF [$64]=$FF [$65]=$FF [$66]=$FF [$67]=$FF [$68]=$FF [$69]=$FF [$6A]=$FF [$6B]=$FF [$6C]=$FF [$6D]=$FF [$6E]=$FF [$6F]=$FF [$70]=$FF [$71]=$FF [$72]=$FF [$73]=$FF [$74]=$FF [$75]=$FF [$76]=$FF [$77]=$FF [$78]=$FF [$79]=$FF [$7A]=$FF [$7B]=$FF [$7C]=$FF [$7D]=$FF [$7E]=$FF [$7F]=$FF [$80]=$01 [$81]=$FF [$82]=$01 [$83]=$FF [$84]=$00 [$85]=$00 [$86]=$00 [$87]=$00 [$88]=$01 [$89]=$01 [$8A]=$01 [$8B]=$01 [$8C]=$3C [$8D]=$3C [$8E]=$0A [$8F]=$0A [$90]=$00 [$91]=$00 [$92]=$00 [$93]=$01 [$94]=$FF [$95]=$00 [$96]=$00 [$97]=$00 [$98]=$01 [$99]=$01 [$9A]=$3C [$9B]=$08 [$9C]=$00 [$9D]=$00 [$9E]=$01 [$9F]=$01 [$A0]=$FF [$A1]=$FF [$A2]=$FF [$A3]=$00 [$A4]=$00 [$A5]=$00 [$A6]=$00 [$A7]=$00 [$A8]=$1A [$A9]=$FF [$AA]=$6F [$AB]=$08 [$AC]=$00 [$AD]=$FF [$AE]=$FF [$AF]=$FF [$B0]=$BD [$B1]=$DA [$B2]=$05 [$B3]=$FF [$B4]=$00 [$B5]=$38 [$B6]=$F6 [$B7]=$B6 [$B8]=$95 [$B9]=$38 [$BA]=$FF [$BB]=$FF [$BC]=$00 [$BD]=$91 [$BE]=$FF [$BF]=$FF [$C0]=$7D [$C1]=$80 [$C2]=$00 [$C3]=$4B [$C4]=$00 [$C5]=$50 [$C6]=$00 [$C7]=$FF [$C8]=$7D [$C9]=$80 [$CA]=$00 [$CB]=$4B [$CC]=$00 [$CD]=$50 [$CE]=$00 [$CF]=$FF [$D0]=$FF [$D1]=$FF [$D2]=$FF [$D3]=$FF [$D4]=$FF [$D5]=$FF [$D6]=$FF [$D7]=$FF [$D8]=$FF [$D9]=$FF [$DA]=$FF [$DB]=$FF [$DC]=$FF [$DD]=$FF [$DE]=$FF [$DF]=$FF [$E0]=$FF [$E1]=$FF [$E2]=$FF [$E3]=$FF [$E4]=$FF [$E5]=$FF [$E6]=$FF [$E7]=$FF [$E8]=$FF [$E9]=$FF [$EA]=$FF [$EB]=$FF [$EC]=$FF [$ED]=$FF [$EE]=$FF [$EF]=$FF [$F0]=$FF [$F1]=$FF [$F2]=$00 [$F3]=$FF [$F4]=$00 [$F5]=$01 [$F6]=$00 [$F7]=$FF [$F8]=$FF [$F9]=$02 [$FA]=$FF [$FB]=$00 [$FC]=$00 [$FD]=$10 [$FE]=$FF [$FF]=$1D Bank 0 --> [$50]=$FF [$51]=$FF [$52]=$FF [$53]=$FF [$54]=$FF [$55]=$FF [$56]=$00 [$57]=$80 [$58]=$72 [$59]=$70 [$5A]=$FF [$5B]=$00 [$5C]=$00 [$5D]=$00 [$5E]=$05 [$5F]=$FF Bank 1 --> [$50]=$03 [$51]=$07 [$52]=$07 [$53]=$07 [$54]=$07 [$55]=$07 [$56]=$07 [$57]=$07 [$58]=$07 [$59]=$03 [$5A]=$07 [$5B]=$03 [$5C]=$03 [$5D]=$07 [$5E]=$03 [$5F]=$03 Bank 2 --> [$50]=$FF [$51]=$FF [$52]=$FF [$53]=$FF [$54]=$FF [$55]=$FF [$56]=$FF [$57]=$FF [$58]=$FF [$59]=$FF [$5A]=$FF [$5B]=$FF [$5C]=$FF [$5D]=$FF [$5E]=$FF [$5F]=$FF Bank 3 --> [$50]=$FF [$51]=$FF [$52]=$FF [$53]=$FF [$54]=$FF [$55]=$FF [$56]=$FF [$57]=$FF [$58]=$FF [$59]=$FF [$5A]=$FF [$5B]=$FF [$5C]=$FF [$5D]=$FF [$5E]=$FF [$5F]=$FF Bank 4 --> [$50]=$FF [$51]=$FF [$52]=$FF [$53]=$FF [$54]=$FF [$55]=$FF [$56]=$FF [$57]=$FF [$58]=$FF [$59]=$FF [$5A]=$FF [$5B]=$FF [$5C]=$FF [$5D]=$FF [$5E]=$FF [$5F]=$FF Bank 5 --> [$50]=$FF [$51]=$FF [$52]=$FF [$53]=$FF [$54]=$FF [$55]=$FF [$56]=$FF [$57]=$FF [$58]=$FF [$59]=$FF [$5A]=$FF [$5B]=$FF [$5C]=$FF [$5D]=$FF [$5E]=$FF [$5F]=$FF Bank 6 --> [$50]=$FF [$51]=$FF [$52]=$FF [$53]=$FF [$54]=$FF [$55]=$FF [$56]=$FF [$57]=$FF [$58]=$FF [$59]=$FF [$5A]=$FF [$5B]=$FF [$5C]=$FF [$5D]=$FF [$5E]=$FF [$5F]=$FF Bank 7 --> [$50]=$FF [$51]=$FF [$52]=$FF [$53]=$FF [$54]=$FF [$55]=$FF [$56]=$FF [$57]=$FF [$58]=$FF [$59]=$FF [$5A]=$FF [$5B]=$FF [$5C]=$FF [$5D]=$FF [$5E]=$FF [$5F]=$FF LM75 on Intel SMBus at $48 Temp : 0,0 min=9,99999999999999966E89 max=-9,99999999999999966E89 mean=0,0 LM75 on Intel SMBus at $49 Temp : 0,0 min=9,99999999999999966E89 max=-9,99999999999999966E89 mean=0,0 HD0 (120,0GB) on SMART at $0 HD0 : 32,0 min=31,0 max=32,0 mean=31,2 ST3120026A (drive 0) : fitness=43% performance=100% HD1 (120,0GB) on SMART at $1 HD1 : 36,0 min=35,0 max=36,0 mean=35,6 ST3120022A (drive 1) : fitness=43% performance=100% HD2 (60,0GB) on SMART at $2 HD2 : 34,0 min=33,0 max=34,0 mean=33,2 ST360015A (drive 2) : fitness=60% performance=100% HD3 (8,9GB) on SMART at $3 HD3 : 34,0 min=33,0 max=34,0 mean=33,2 ST360015A (drive 3) : fitness=60% performance=100% ************************* Temp3 --> active=OFF chip=0 index=3 wanted=40 warning=50 offset=0 InTray=OFF Used pwms=1 2 3 4 5 6 7 HD1 --> active=ON chip=5 index=1 wanted=40 warning=50 offset=0 InTray=OFF Used pwms=1 2 3 4 5 6 7 CPU --> active=ON chip=0 index=1 wanted=40 warning=50 offset=0 InTray=OFF Used pwms=1 2 3 4 5 6 7 HD0 --> active=ON chip=4 index=1 wanted=40 warning=50 offset=0 InTray=ON Used pwms=1 2 3 4 5 6 7 Temp2 --> active=ON chip=0 index=2 wanted=40 warning=50 offset=0 InTray=OFF Used pwms=1 2 3 4 5 6 7 Temp1 --> active=OFF chip=1 index=1 wanted=40 warning=50 offset=0 InTray=OFF Used pwms=1 2 3 4 5 6 7 Temp2 --> active=OFF chip=1 index=2 wanted=40 warning=50 offset=0 InTray=OFF Used pwms=1 2 3 4 5 6 7 Temp3 --> active=OFF chip=1 index=3 wanted=40 warning=50 offset=0 InTray=OFF Used pwms=1 2 3 4 5 6 7 Temp --> active=OFF chip=2 index=1 wanted=40 warning=50 offset=0 InTray=OFF Used pwms=1 2 3 4 5 6 7 Temp --> active=OFF chip=3 index=1 wanted=40 warning=50 offset=0 InTray=OFF Used pwms=1 2 3 4 5 6 7 HD2 --> active=ON chip=6 index=1 wanted=40 warning=50 offset=0 InTray=OFF Used pwms=1 2 3 4 5 6 7 HD3 --> active=ON chip=7 index=1 wanted=40 warning=50 offset=0 InTray=OFF Used pwms=1 2 3 4 5 6 7 Fan01 --> active=ON chip=0 index=1 Fan02 --> active=ON chip=0 index=2 Fan03 --> active=ON chip=0 index=3 Fan04 --> active=ON chip=1 index=1 Fan05 --> active=ON chip=1 index=2 Fan06 --> active=ON chip=1 index=3 Speed01 --> active=ON chip=0 index=1 min=0 max=100 variate=OFF Speed02 --> active=ON chip=0 index=2 min=0 max=100 variate=OFF Speed03 --> active=ON chip=1 index=1 min=0 max=100 variate=OFF Speed04 --> active=ON chip=1 index=2 min=0 max=100 variate=OFF Speed05 --> active=ON chip=1 index=3 min=0 max=100 variate=OFF Speed06 --> active=ON chip=1 index=4 min=0 max=100 variate=OFF Speed07 --> active=ON chip=1 index=5 min=0 max=100 variate=OFF Vcore --> active=ON chip=0 index=1 +12V --> active=ON chip=0 index=2 3.3V --> active=ON chip=0 index=3 Vcc --> active=ON chip=0 index=4 Vin2 --> active=ON chip=0 index=5 5Vsb --> active=ON chip=0 index=6 Vbat --> active=ON chip=0 index=7 Set Fans to 100% on exit : ON Debug Mode : ON Use ISA : ON Use SMB : ON Scan PCI : ON Scan SMB : ON Slow SMB detection : OFF Detect SuperIO : ON ASUS Card Detect : ON DELL Support : OFF Command line : speedfan.exe Delta Fan Speed : 10 ************************* Chipset : Intel 82801EB ICH5 SMBus Base Address : $0400 SMBus Revision : 00000002 SMBus I/O Enabled : ON ************************* Bus : 00 Device: 00 Function : 00 --> 25708086 Vendor : 8086 Device : 2570 (rev 02) - Intel Corporation 82865G/PE/P, 82848P DRAM Controller / Host-Hub Interface 00: 8086 2570 0006 2090 0002 0600 0000 0000 0008 F800 0000 0000 0000 0000 0000 0000 20: 0000 0000 0000 0000 0000 0000 1043 80F2 0000 0000 00E4 0000 0000 0000 0000 0000 40: 0000 0000 0000 0000 0000 0000 0000 0000 0200 0008 8040 001C 0000 0000 0000 0000 60: 0500 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 80: 0000 0000 0000 0000 0000 0000 0000 0000 1110 1111 3301 0033 0000 0000 0A00 0038 A0: 0002 0030 4217 1F00 0304 0000 0000 0000 0080 0000 0030 0000 4000 0000 1020 0000 C0: 0000 0000 2000 200D 0000 0000 0000 0000 2802 0E04 0D0B 0000 0000 0000 0000 0130 E0: 0000 0000 A009 2106 0200 0000 0000 0000 0000 0000 0000 0000 0F68 0003 0000 0000 Bus : 00 Device: 01 Function : 00 --> 25718086 Vendor : 8086 Device : 2571 (rev 02) - Intel Corporation 82865G/PE/P, 82848P PCI-to-AGP Bridge 00: 8086 2571 0107 00A0 0002 0604 4000 0001 0000 0000 0000 0000 0100 4001 C0C0 22A0 20: FEA0 FEA0 E7F0 F7E0 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0008 40: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 60: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 80: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 A0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 C0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 E0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0F68 0003 0000 0000 Bus : 00 Device: 29 Function : 00 --> 24D28086 Vendor : 8086 Device : 24D2 (rev 02) - Intel Corporation 82801EB/ER USB UHCI Controller #1 00: 8086 24D2 0005 0280 0002 0C03 0000 0080 0000 0000 0000 0000 0000 0000 0000 0000 20: EF01 0000 0000 0000 0000 0000 1043 80A6 0000 0000 0000 0000 0000 0000 0110 0000 40: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 60: 0010 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 80: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 A0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 C0: 2F00 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 E0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0F66 0004 0000 0000 Bus : 00 Device: 29 Function : 01 --> 24D48086 Vendor : 8086 Device : 24D4 (rev 02) - Intel Corporation 82801EB/ER USB UHCI Controller #2 00: 8086 24D4 0005 0280 0002 0C03 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 20: EF21 0000 0000 0000 0000 0000 1043 80A6 0000 0000 0000 0000 0000 0000 0213 0000 40: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 60: 0010 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 80: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 A0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 C0: 2F00 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 E0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0F66 0004 0000 0000 Bus : 00 Device: 29 Function : 02 --> 24D78086 Vendor : 8086 Device : 24D7 (rev 02) - Intel Corporation 82801EB/ER USB UHCI Controller #3 00: 8086 24D7 0005 0280 0002 0C03 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 20: EF41 0000 0000 0000 0000 0000 1043 80A6 0000 0000 0000 0000 0000 0000 0312 0000 40: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 60: 0010 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 80: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 A0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 C0: 2F00 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 E0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0F66 0004 0000 0000 Bus : 00 Device: 29 Function : 03 --> 24DE8086 Vendor : 8086 Device : 24DE (rev 02) - Intel Corporation 82801EB/ER USB UHCI Controller #4 00: 8086 24DE 0005 0280 0002 0C03 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 20: EF81 0000 0000 0000 0000 0000 1043 80A6 0000 0000 0000 0000 0000 0000 0110 0000 40: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 60: 0010 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 80: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 A0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 C0: 2F00 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 E0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0F66 0004 0000 0000 Bus : 00 Device: 29 Function : 07 --> 24DD8086 Vendor : 8086 Device : 24DD (rev 02) - Intel Corporation 82801EB/ER USB EHCI Controller 00: 8086 24DD 0106 0290 2002 0C03 0000 0000 BC00 FEBF 0000 0000 0000 0000 0000 0000 20: 0000 0000 0000 0000 0000 0000 1043 80A6 0000 0000 0050 0000 0000 0000 0417 0000 40: 0000 0000 0000 0000 0000 0000 0000 0000 5801 C9C2 0000 0000 000A 20A0 0000 0000 60: 2020 01FF 0000 0000 0001 0000 0000 C000 0000 3FCF 0000 0000 0000 0000 0000 0000 80: 0000 0000 0001 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 A0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 C0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 5555 0000 0000 0000 E0: 0000 0000 0000 0000 0000 0000 0000 0000 8000 0000 8388 0040 0F66 0004 1406 0000 Bus : 00 Device: 30 Function : 00 --> 244E8086 Vendor : 8086 Device : 244E (rev C2) - Intel Corporation 82801BA/CA/DB, 6300ESB Hub Interface to PCI Bridge 00: 8086 244E 0107 0080 00C2 0604 0000 0001 0000 0000 0000 0000 0200 4002 D0D0 2280 20: FFF0 0000 FFF0 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0002 40: 2802 7630 0028 0000 0000 0000 0000 0000 6402 0073 0000 0000 0150 0034 0000 0000 60: 0000 0000 0000 0000 0000 0000 0000 0000 0010 0000 0000 0000 0000 0000 0000 0000 80: 0000 00A0 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 A0: 0000 0000 0000 0000 0000 0000 0000 0000 0001 0002 0000 00C0 0000 0000 0000 0000 C0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 E0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0F66 0004 0000 3153 Bus : 00 Device: 31 Function : 00 --> 24D08086 Vendor : 8086 Device : 24D0 (rev 02) - Intel Corporation 82801EB/ER LPC Interface Bridge 00: 8086 24D0 000F 0280 0002 0601 0000 0080 0000 0000 0000 0000 0000 0000 0000 0000 20: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 40: 0801 0000 0010 0000 0000 0000 0000 0000 0000 0000 0000 0000 0481 0000 0010 0000 60: 8B8A 8585 00D0 0000 8080 8B80 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 80: 0000 0000 0000 0000 0000 0000 0000 0000 FCFF 0000 0000 0000 0000 0000 0000 0000 A0: 0220 0000 0001 0000 000D 0000 0300 0000 0000 0000 0000 0000 0000 0000 0000 0000 C0: 0000 0000 0000 0000 0000 0000 0000 0000 2186 0000 0F02 0000 0004 0000 0000 0000 E0: 0000 8000 0000 1408 2233 0011 0000 4567 0000 0044 0004 0000 0F66 1E04 0000 0000 Bus : 00 Device: 31 Function : 01 --> 24DB8086 Vendor : 8086 Device : 24DB (rev 02) - Intel Corporation 82801EB/ER EIDE Controller 00: 8086 24DB 0007 0280 8A02 0101 0000 0000 0001 0000 0001 0000 0001 0000 0001 0000 20: FC01 0000 FC00 FFEF 0000 0000 1043 80A6 0000 0000 0000 0000 0000 0000 0100 0000 40: E377 A303 000B 0000 0007 0211 0000 0000 0000 0000 3030 0000 0000 0000 0000 0000 60: 0008 0000 0000 0000 0008 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 80: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 A0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 C0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 E0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0F66 0004 0000 0000 Bus : 00 Device: 31 Function : 03 --> 24D38086 Vendor : 8086 Device : 24D3 (rev 02) - Intel Corporation 82801EB/ER SMBus Controller 00: 8086 24D3 0001 0280 0002 0C05 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 20: 0401 0000 0000 0000 0000 0000 1043 80A6 0000 0000 0000 0000 0000 0000 020B 0000 40: 0001 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 60: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 80: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 A0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 C0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 E0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0F66 0004 0000 0000 Bus : 00 Device: 31 Function : 05 --> 24D58086 Vendor : 8086 Device : 24D5 (rev 02) - Intel Corporation 82801EB/ER AC'97 Audio Controller 00: 8086 24D5 0007 0290 0002 0401 0000 0000 E801 0000 EE81 0000 B800 FEBF B400 FEBF 20: 0000 0000 0000 0000 0000 0000 1043 80F3 0000 0000 0050 0000 0000 0000 0211 0000 40: 0109 0000 0000 0000 0000 0000 0000 0000 0001 C9C2 0000 0000 0000 0000 0000 0000 60: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 80: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 A0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 C0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 E0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0F66 0004 0000 0000 Bus : 01 Device: 00 Function : 00 --> 49661002 Vendor : 1002 Device : 4966 (rev 01) - ATI Technologies RV250 Radeon 9000/9000 Pro 00: 1002 4966 0187 02B0 0001 0300 FF04 0080 0008 F000 C001 0000 0000 FEAF 0000 0000 20: 0000 0000 0000 0000 0000 0000 1002 0002 0000 FEAC 0058 0000 0000 0000 0110 0008 40: 0000 0000 0000 0000 0000 0000 1002 0002 0001 0602 0000 0000 5002 0020 0217 2F00 60: 0304 1F00 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 80: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 A0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 C0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 E0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 Bus : 01 Device: 00 Function : 01 --> 496E1002 Vendor : 1002 Device : 496E (rev 01) - ATI Technologies RV250 Radeon 9000/9000 Pro - Secondary 00: 1002 496E 0087 02B0 0001 0380 4004 0000 0008 EC00 0000 FEAE 0000 0000 0000 0000 20: 0000 0000 0000 0000 0000 0000 1002 0003 0000 0000 0050 0000 0000 0000 00FF 0008 40: 0000 0000 0000 0000 0000 0000 0000 0000 0001 0602 0000 0000 5002 0020 0217 2F00 60: 0200 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 80: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 A0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 C0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 E0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 Bus : 02 Device: 04 Function : 00 --> 31641106 Vendor : 1106 Device : 3164 (rev 06) - VIA Technologies Inc VT6410 ATA133 RAID Controller 00: 1106 3164 0007 0290 0006 0104 4000 0000 DFE1 0000 DFAD 0000 DFA1 0000 DFA9 0000 20: DF91 0000 0000 0000 0000 0000 1043 80F4 0000 0000 00C0 0000 0000 0000 0117 0000 40: F21B 35C9 2D10 00C0 A8A8 2020 00FF B6B6 0F0F E1E1 0014 0000 A000 0020 0000 0000 60: 0200 0000 0000 0000 0200 0000 0000 0000 0102 0000 0000 0000 0102 0000 0000 0000 80: 7800 022B 0000 0000 7C00 022B 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 A0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 C0: 0001 0002 0000 0000 0000 0000 0000 0000 0006 3164 1043 80F4 0000 0000 0000 0000 E0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 ************************* ISA Dump from address $290 --> <Winbond W83627THF> (ISA at $0290) (No error) 00: 01 FF 01 FF 00 00 00 00 01 01 01 01 3C 3C 0A 0A ............<<.. 10: 01 FF 00 00 00 01 01 3C 42 00 FF FF 24 32 00 E2 .......<B...$2.. 20: 61 C3 D2 BE FF 3B A1 22 D9 7C 79 F0 00 9B 68 BE a....;.".\|y...h. 30: 28 5D 7A C8 68 4A 01 F5 F8 5C 85 9A 00 9E 00 00 (]z.hJ...\...... 40: 03 00 00 FE FF 00 00 9F 2D 03 01 C4 18 95 00 A3 ........-....... 50: FF FF 80 FF FF FF 00 80 90 20 FF FF 11 04 FF 05 ......... ...... 60: 61 C3 D2 BE FF 3B A1 22 D9 7C 79 F0 00 9B 68 BE a....;.".\|y...h. 70: 28 5D 7A C8 68 4A 01 F5 F8 5C 85 9A 00 9E 00 00 (]z.hJ...\...... 80: 01 FF 01 FF 00 00 00 00 01 01 01 01 3C 3C 0A 0A ............<<.. 90: 01 FF 00 00 00 01 01 3C 42 00 FF FF 24 32 00 E2 .......<B...$2.. A0: 61 C3 D2 BE FF 3B A1 22 D9 7C 79 F0 00 9B 68 BE a....;.".\|y...h. B0: 28 5D 7A C8 68 4A 01 F5 F8 5C 85 9A 00 9E 00 00 (]z.hJ...\...... C0: 03 00 00 FE FF 00 00 9F 2D 03 01 C4 18 95 00 A3 ........-....... D0: FF FF 80 FF FF FF 00 80 90 20 FF FF 11 04 FF 05 ......... ...... E0: 61 C3 D2 BE FF 3B A1 22 D9 7C 79 F0 00 9B 68 BE a....;.".\|y...h. F0: 28 5D 7A C8 68 4A 01 F5 F8 5C 85 9A 00 9E 00 00 (]z.hJ...\...... ************************* SMB Dump from address $2F --> <Winbond W83791D> (SMBus at $0400) (No error) 00: 00 00 00 00 00 00 00 00 00 8A 00 00 01 00 00 FF ................ 10: 00 00 7F 00 00 10 00 00 00 00 00 00 00 00 00 80 ................ 20: 12 05 4F BC 05 05 05 7D FF FF FF 7E 68 00 00 ED ..O....}...~h... 30: B0 39 62 B3 B9 C4 6F AC A2 32 24 23 54 8C FF FF .9b...o..2$#T... 40: 01 30 20 00 00 00 00 50 2F 10 01 44 01 95 00 A3 .0 ....P/..D.... 50: FF FF FF FF FF FF 00 80 72 70 FF 00 00 00 05 FF ........rp...... 60: FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF ................ 70: FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF ................ 80: 01 FF 01 FF 00 00 00 00 01 01 01 01 3C 3C 0A 0A ............<<.. 90: 00 00 00 01 FF 00 00 00 01 01 3C 00 00 00 01 01 ..........<..... A0: FF FF FF 00 00 00 00 00 1A FF 6F 08 00 FF FF FF ..........o..... B0: BD DA 05 FF 00 38 F6 B6 95 38 FF FF 00 91 FF FF .....8...8...... C0: 7D 80 00 4B 00 50 00 FF 7D 80 00 4B 00 50 00 FF }..K.P..}..K.P.. D0: FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF ................ E0: FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF ................ F0: FF FF 00 FF 00 01 00 FF FF 02 FF 00 00 15 FF 1D ................ SMB Dump from address $44 --> <Unknown> (SMBus at $0400) (No error) 00: 00 00 0F 04 00 00 00 00 00 00 00 00 00 00 00 00 ................ 10: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 20: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 30: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 40: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 50: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 60: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 70: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 80: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 90: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ A0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ C0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ F0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ SMB Dump from address $48 --> <LM75> (SMBus at $0400) (No error) 00: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 10: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 20: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 30: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 40: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 50: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 60: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 70: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 80: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 90: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP A0: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP B0: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP C0: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP D0: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP E0: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP F0: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP SMB Dump from address $49 --> <LM75> (SMBus at $0400) (No error) 00: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 10: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 20: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 30: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 40: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 50: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 60: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 70: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 80: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 90: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP A0: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP B0: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP C0: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP D0: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP E0: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP F0: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP SMB Dump from address $50 --> <RAM> (SMBus at $0400) (No error) 00: 80 08 07 0D 0A 01 40 00 04 50 65 00 82 08 00 01 ......@..Pe..... 10: 0E 04 18 01 02 20 C0 60 70 00 00 3C 28 3C 28 40 ..... .`p..<(<(@ 20: 60 60 40 40 00 00 00 00 00 37 46 28 28 32 00 00 ``@@.....7F((2.. 30: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 10 5F ..............._ 40: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 50: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 60: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 70: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 80: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 90: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ A0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ C0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ F0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ SMB Dump from address $52 --> <RAM> (SMBus at $0400) (No error) 00: 80 08 07 0D 0A 01 40 00 04 50 65 00 82 08 00 01 ......@..Pe..... 10: 0E 04 18 01 02 20 C0 60 70 00 00 3C 28 3C 28 40 ..... .`p..<(<(@ 20: 60 60 40 40 00 00 00 00 00 37 46 28 28 32 00 00 ``@@.....7F((2.. 30: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 10 5F ..............._ 40: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 50: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 60: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 70: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 80: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 90: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ A0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ C0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ F0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ SMB Device at address $61 --> (SMBus at $0400) (No error) SMB Device at address $69 --> (SMBus at $0400) (No error) ************************* Retry attempts info for SMBus at $0400 [ -1]=158 [ 1]=158 ************************* ************************* ************************* Can change fan speeds : DON'T KNOW Can smoothly change fan speeds : DON'T KNOW Can stop fans : DON'T KNOW ************************* Tray icon size : 16x16 UPTIME : 0 days 00:18:51 ************************* I/O properly initialized !!!Exception in reading CPU INFO at startup (2)!!! Linked ISA BUS at $0290 Linked Intel 82801EB ICH5 SMBUS at $0400 Scanning ISA BUS at $0290... Winbond W83627THF (ID=$90) found on ISA at $290 Scanning Intel SMBus at $0400... Winbond W83791D (PLEASE REPORT) (ID=$72) found on SMBus at $2F LM75 found on SMBus at $48 LM75 found on SMBus at $49 SMART Enabled for drive 0 Found ST3120026A (120,0GB) SMART Enabled for drive 1 Found ST3120022A (120,0GB) SMART Enabled for drive 2 Found ST360015A (60,0GB) SMART Enabled for drive 3 Found ST360015A (8,9GB) End of detection *************************** I/O properly initialized !!!Exception in reading CPU INFO at startup (2)!!! Linked ISA BUS at $0290 Linked PCI Starting PCI scan... FUNC_DIS=$0044 Command Register : $0001 I/O Space Enabled Host Configuration Register : $01 SMBus Host Enabled Linked Intel 82801EB ICH5 SMBUS at $0400 HST_CNT=$08 PCI scan done! Scanning ISA BUS at $0290... About to check DELL support PCI scanning is enabled End of DELL support check Winbond W83627THF (ID=$90) found on ISA at $290 [$54]=$FE [$55]=$11 [$56]=$00 -> Temperature sensor diode 1 : Thermistor 2N3904 -> Temperature sensor diode 2 : PII diode -> Temperature sensor diode 3 : Thermistor 2N3904 -> FAN1 divisor : 2 -> FAN2 divisor : 4 -> FAN3 divisor : 8 -> PWM 1 mode : Manual PWM Control -> PWM 2 mode : Manual PWM Control Second pass... Winbond r[$20]=$82 r[$21]=$84 r[$07]=$02 Checking $0370 for SMSC (2)... Checking $0370 for SMSC (1)... Checking $03F0 for SMSC (2)... Checking $03F0 for SMSC (1)... Checking $002E for SMSC (1)... Checking $004E for SMSC (1)... Checking $002E for WINBOND... $002E --> Device ID=$82 Revision=$84 Checking $004E for WINBOND... Checking $0250 for WINBOND... Checking $0370 for WINBOND... Checking $03F0 for WINBOND... Checking $002E for NS... Checking $004E for NS... Checking $002E for ITE (1)... Registers [$002E] : $FF $FF $FF Scanning Intel SMBus at $0400... INTEL ICHx Slave Address found at $44 Something is at address $2F Winbond W83791D (PLEASE REPORT) (ID=$72) found on SMBus at $2F [$54]=$FF [$55]=$FF [$56]=$FF -> FAN1 divisor : 2 -> FAN2 divisor : 2 -> FAN3 divisor : 2 Something is at address $44 Something is at address $48 LM75 found on SMBus at $48 Something is at address $49 LM75 found on SMBus at $49 Something is at address $50 About to probe TOSHIBA SUPPORT... End of TOSHIBA SUPPORT probing Version 1.1 03 00000007 SMART Enabled for drive 0 --> S.M.A.R.T. attributes properly read --> S.M.A.R.T. thresholds properly read Start of DEBUG DATA for drive 0 000 : $5A0C $FF3F $37C8 $1000 $0000 $0000 $3F00 $0000 008 : $0000 $0000 $4A33 $3154 $3853 $5451 $2020 $2020 016 : $2020 $2020 $2020 $2020 $0000 $0040 $0400 $2E33 024 : $3630 $2020 $2020 $5453 $3133 $3032 $3230 $4136 032 : $2020 $2020 $2020 $2020 $2020 $2020 $2020 $2020 040 : $2020 $2020 $2020 $2020 $2020 $2020 $2020 $1080 048 : $0000 $002F $0000 $0002 $0002 $0700 $FF3F $1000 056 : $3F00 $10FC $FB00 $1001 $B04B $F90D $0000 $0700 064 : $0300 $7800 $7800 $F000 $7800 $0000 $0000 $0000 072 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 080 : $7E00 $1B00 $6B34 $017D $0340 $6934 $013C $0340 088 : $3F20 $0000 $0000 $FEFE $0000 $7D60 $0080 $0000 096 : $0000 $0000 $0000 $0000 $B04B $F90D $0000 $0000 104 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 112 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 120 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 128 : $0900 $B04B $F90D $B04B $F90D $2020 $0200 $B642 136 : $0000 $008A $063C $0A3C $FFFF $C607 $0001 $0008 144 : $F010 $0010 $0200 $3000 $0000 $0000 $0000 $06FE 152 : $0000 $0200 $0000 $0000 $0000 $0000 $2200 $0B00 160 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 168 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 176 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 184 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 192 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 200 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 208 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 216 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 224 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 232 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 240 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 248 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $A5E5 --> cylinders : 14593 --> tracks per cilinder : 255 --> sectors per track : 63 --> bytes per sector : 512 --> disk size : 120,0 End of DEBUG DATA for drive 0 Found ST3120026A (120,0GB) Found ST3120026A Firmware revision <3.06> (120,0GB) Serial <3JT1S8QT> --> ATA device --> Fixed Drive --> S.M.A.R.T. Supported (enabled) --> Power Management Supported (enabled) --> 48-bit Addressing ($4BB0 $0DF9 $0000 $0000) --> UDMA Mode 0 Supported --> UDMA Mode 1 Supported --> UDMA Mode 2 Supported --> UDMA Mode 3 Supported --> UDMA Mode 4 Supported --> UDMA Mode 5 Supported --> UDMA Mode 5 Active SMART Structure Revision : $000A ID=$01 NAME=Raw Read Error Rate VALUE=$40 WORST=$3B RAW=$0000066EF845 THRSHLD=$06 FLAGS=$000F ID=$03 NAME=Spin Up Time VALUE=$60 WORST=$60 RAW=$000000000000 THRSHLD=$00 FLAGS=$0003 ID=$04 NAME=Start/Stop Count VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$14 FLAGS=$0032 ID=$05 NAME=Reallocated Sector Count VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$24 FLAGS=$0033 ID=$07 NAME=Seek Error Rate VALUE=$40 WORST=$3C RAW=$0000002932C8 THRSHLD=$1E FLAGS=$000F ID=$09 NAME=Power On Hours Count VALUE=$64 WORST=$64 RAW=$00000000001E THRSHLD=$00 FLAGS=$0032 ID=$0A NAME=Spin Retry Count VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$61 FLAGS=$0013 ID=$0C NAME=Power Cycle Count VALUE=$64 WORST=$64 RAW=$000000000024 THRSHLD=$14 FLAGS=$0032 ID=$C2 NAME=Temperature VALUE=$1F WORST=$2C RAW=$00000000001F THRSHLD=$00 FLAGS=$0022 Current HD temperature is 31C ID=$C3 NAME=Hardware ECC Recovered VALUE=$40 WORST=$3B RAW=$0000066EF845 THRSHLD=$00 FLAGS=$001A ID=$C5 NAME=Current Pending Sector VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0012 ID=$C6 NAME=Offline Correctable VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0010 ID=$C7 NAME=UltraATA CRC Error Rate VALUE=$C8 WORST=$C3 RAW=$000000000009 THRSHLD=$00 FLAGS=$003E ID=$C8 NAME=Write Error Rate VALUE=$64 WORST=$FD RAW=$000000000000 THRSHLD=$00 FLAGS=$0000 ID=$CA NAME=TA Increase Count VALUE=$64 WORST=$FD RAW=$000000000000 THRSHLD=$00 FLAGS=$0032 Linked S.M.A.R.T. Version 1.1 03 00000007 SMART Enabled for drive 1 --> S.M.A.R.T. attributes properly read --> S.M.A.R.T. thresholds properly read Start of DEBUG DATA for drive 1 000 : $5A0C $FF3F $37C8 $1000 $0000 $0000 $3F00 $0000 008 : $0000 $0000 $4A33 $3054 $5634 $4442 $2020 $2020 016 : $2020 $2020 $2020 $2020 $0000 $0010 $0400 $2E33 024 : $3630 $2020 $2020 $5453 $3133 $3032 $3230 $4132 032 : $2020 $2020 $2020 $2020 $2020 $2020 $2020 $2020 040 : $2020 $2020 $2020 $2020 $2020 $2020 $2020 $1080 048 : $0000 $002F $0000 $0002 $0002 $0700 $FF3F $1000 056 : $3F00 $10FC $FB00 $1001 $B04B $F90D $0000 $0700 064 : $0300 $7800 $7800 $F000 $7800 $0000 $0000 $0000 072 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 080 : $7E00 $1B00 $6B34 $017D $0340 $6934 $013C $0340 088 : $3F20 $0000 $0000 $FEFE $0000 $006D $0080 $0000 096 : $0000 $0000 $0000 $0000 $B04B $F90D $0000 $0000 104 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 112 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 120 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 128 : $0100 $B04B $F90D $B04B $F90D $2020 $0200 $B642 136 : $0000 $008A $063C $0A3C $FFFF $C607 $0001 $0008 144 : $D009 $0004 $0200 $3000 $0000 $0000 $0000 $06FE 152 : $0000 $0200 $0000 $0000 $0000 $0000 $2200 $0B00 160 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 168 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 176 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 184 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 192 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 200 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 208 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 216 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 224 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 232 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 240 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 248 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $A5E5 --> cylinders : 14593 --> tracks per cilinder : 255 --> sectors per track : 63 --> bytes per sector : 512 --> disk size : 120,0 End of DEBUG DATA for drive 1 Found ST3120022A (120,0GB) Found ST3120022A Firmware revision <3.06> (120,0GB) Serial <3JT04VBD> --> ATA device --> Fixed Drive --> S.M.A.R.T. Supported (enabled) --> Power Management Supported (enabled) --> 48-bit Addressing ($4BB0 $0DF9 $0000 $0000) --> UDMA Mode 0 Supported --> UDMA Mode 1 Supported --> UDMA Mode 2 Supported --> UDMA Mode 3 Supported --> UDMA Mode 4 Supported --> UDMA Mode 5 Supported --> UDMA Mode 5 Active SMART Structure Revision : $000A ID=$01 NAME=Raw Read Error Rate VALUE=$40 WORST=$40 RAW=$00000BB4AB4C THRSHLD=$06 FLAGS=$000F ID=$03 NAME=Spin Up Time VALUE=$61 WORST=$61 RAW=$000000000000 THRSHLD=$00 FLAGS=$0003 ID=$04 NAME=Start/Stop Count VALUE=$64 WORST=$64 RAW=$000000000001 THRSHLD=$14 FLAGS=$0032 ID=$05 NAME=Reallocated Sector Count VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$24 FLAGS=$0033 ID=$07 NAME=Seek Error Rate VALUE=$40 WORST=$3C RAW=$0000002DF472 THRSHLD=$1E FLAGS=$000F ID=$09 NAME=Power On Hours Count VALUE=$64 WORST=$64 RAW=$000000000024 THRSHLD=$00 FLAGS=$0032 ID=$0A NAME=Spin Retry Count VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$61 FLAGS=$0013 ID=$0C NAME=Power Cycle Count VALUE=$64 WORST=$64 RAW=$00000000002A THRSHLD=$14 FLAGS=$0032 ID=$C2 NAME=Temperature VALUE=$24 WORST=$34 RAW=$000000000024 THRSHLD=$00 FLAGS=$0022 Current HD temperature is 36C ID=$C3 NAME=Hardware ECC Recovered VALUE=$40 WORST=$40 RAW=$00000BB4AB4C THRSHLD=$00 FLAGS=$001A ID=$C5 NAME=Current Pending Sector VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0012 ID=$C6 NAME=Offline Correctable VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0010 ID=$C7 NAME=UltraATA CRC Error Rate VALUE=$C8 WORST=$BD RAW=$00000000000B THRSHLD=$00 FLAGS=$003E ID=$C8 NAME=Write Error Rate VALUE=$64 WORST=$FD RAW=$000000000000 THRSHLD=$00 FLAGS=$0000 ID=$CA NAME=TA Increase Count VALUE=$64 WORST=$FD RAW=$000000000000 THRSHLD=$00 FLAGS=$0032 SMART Enabled for drive 2 --> S.M.A.R.T. attributes properly read --> S.M.A.R.T. thresholds properly read Start of DEBUG DATA for drive 2 000 : $0000 $A5C5 $37C8 $1000 $0000 $0000 $3F00 $0000 008 : $0000 $0000 $4B33 $3043 $3346 $524D $2020 $2020 016 : $2020 $2020 $2020 $2020 $0000 $0010 $0400 $2E33 024 : $3333 $2020 $2020 $5453 $3633 $3030 $3531 $2041 032 : $2020 $2020 $2020 $2020 $2020 $2020 $2020 $2020 040 : $2020 $2020 $2020 $2020 $2020 $2020 $2020 $1080 048 : $0000 $002F $0000 $0002 $0002 $0700 $FF3F $1000 056 : $3F00 $10FC $FB00 $0700 $0300 $1001 $0700 $3F20 064 : $015B $0340 $30CF $FC06 $0000 $0000 $7E00 $1B00 072 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 080 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 088 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 096 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 104 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 112 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 120 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 128 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 136 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 144 : $0000 $0000 $0A00 $0000 $0000 $0000 $0000 $0000 152 : $0000 $0000 $0000 $0000 $2030 $3882 $0000 $0000 160 : $0000 $0000 $0000 $0000 $0000 $0000 $A800 $A102 168 : $536F $6252 $7859 $C781 $0000 $0000 $0000 $0000 176 : $F005 $0000 $4176 $704D $2E65 $7865 $0000 $0000 184 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 192 : $0000 $0081 $0000 $0000 $0000 $0000 $0000 $0000 200 : $0400 $0000 $4800 $0000 $0B00 $0000 $0000 $0000 208 : $4400 $3A00 $5C00 $5000 $7200 $6F00 $6700 $7200 216 : $6100 $6D00 $2000 $4600 $6900 $6C00 $6500 $7300 224 : $5C00 $5300 $7000 $6500 $6500 $6400 $4600 $6100 232 : $6E00 $5C00 $6400 $6500 $6200 $7500 $6700 $2E00 240 : $6E00 $6600 $6F00 $0000 $0400 $0000 $0300 $0000 248 : $0000 $0000 $8900 $1200 $0400 $0000 $0D00 $0000 --> cylinders : 7297 --> tracks per cilinder : 255 --> sectors per track : 63 --> bytes per sector : 512 --> disk size : 60,0 End of DEBUG DATA for drive 2 Found ST360015A (60,0GB) Found ST360015A Firmware revision <3.33> (60,0GB) Serial <3KC0F3MR> --> ATA device SMART Structure Revision : $000A ID=$01 NAME=Raw Read Error Rate VALUE=$46 WORST=$43 RAW=$0000025FF710 THRSHLD=$00 FLAGS=$000F ID=$03 NAME=Spin Up Time VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0003 ID=$04 NAME=Start/Stop Count VALUE=$64 WORST=$64 RAW=$00000000005F THRSHLD=$00 FLAGS=$0032 ID=$05 NAME=Reallocated Sector Count VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0033 ID=$07 NAME=Seek Error Rate VALUE=$4B WORST=$3C RAW=$00000207881E THRSHLD=$00 FLAGS=$000F ID=$09 NAME=Power On Hours Count VALUE=$63 WORST=$63 RAW=$000000000390 THRSHLD=$00 FLAGS=$0032 ID=$0A NAME=Spin Retry Count VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0013 ID=$0C NAME=Power Cycle Count VALUE=$64 WORST=$64 RAW=$000000000102 THRSHLD=$00 FLAGS=$0032 ID=$C2 NAME=Temperature VALUE=$21 WORST=$37 RAW=$000000000021 THRSHLD=$00 FLAGS=$0022 Current HD temperature is 33C ID=$C3 NAME=Hardware ECC Recovered VALUE=$46 WORST=$43 RAW=$0000025FF710 THRSHLD=$00 FLAGS=$001A ID=$C5 NAME=Current Pending Sector VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0012 ID=$C6 NAME=Offline Correctable VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0010 ID=$C7 NAME=UltraATA CRC Error Rate VALUE=$C8 WORST=$C4 RAW=$000000000008 THRSHLD=$00 FLAGS=$003E ID=$C8 NAME=Write Error Rate VALUE=$64 WORST=$FD RAW=$000000000000 THRSHLD=$00 FLAGS=$0000 ID=$CA NAME=TA Increase Count VALUE=$64 WORST=$FD RAW=$000000000000 THRSHLD=$00 FLAGS=$0032 SMART Enabled for drive 3 --> S.M.A.R.T. attributes properly read --> S.M.A.R.T. thresholds properly read Start of DEBUG DATA for drive 3 000 : $5A0C $FF3F $37C8 $1000 $0000 $0000 $3F00 $0000 008 : $0000 $0000 $4B33 $3042 $5948 $3748 $2020 $2020 016 : $2020 $2020 $2020 $2020 $0000 $0010 $0400 $2E33 024 : $3335 $2020 $2020 $5453 $3633 $3030 $3531 $2041 032 : $2020 $2020 $2020 $2020 $2020 $2020 $2020 $2020 040 : $2020 $2020 $2020 $2020 $2020 $2020 $2020 $1080 048 : $0000 $002F $0000 $0002 $0002 $0700 $FF3F $1000 056 : $3F00 $10FC $FB00 $0700 $0300 $1001 $0700 $3F20 064 : $015B $0340 $30CF $FC06 $0000 $0000 $7E00 $1B00 072 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 080 : $0000 $0000 $7E00 $1B00 $6B34 $017D $0340 $6934 088 : $013C $0340 $3F20 $0000 $0000 $FEFE $0000 $006D 096 : $0080 $0000 $0000 $0000 $0000 $0000 $B04B $F90D 104 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 112 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 120 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 128 : $0000 $0000 $0100 $B04B $F90D $B04B $F90D $2020 136 : $0200 $B642 $0000 $008A $063C $0A3C $FFFF $C607 144 : $0001 $0008 $D009 $0004 $0200 $3000 $0000 $0000 152 : $0000 $06FE $0000 $0200 $0000 $0000 $0000 $0000 160 : $2200 $0B00 $0000 $0000 $0000 $0000 $0000 $0000 168 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 176 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 184 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 192 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 200 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 208 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 216 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 224 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 232 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 240 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 248 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 --> cylinders : 7297 --> tracks per cilinder : 255 --> sectors per track : 63 --> bytes per sector : 512 --> disk size : 60,0 End of DEBUG DATA for drive 3 Found ST360015A (8,9GB) Found ST360015A Firmware revision <3.53> (8,9GB) Serial <3KB0HYH7> --> ATA device --> Fixed Drive --> S.M.A.R.T. Supported (enabled) --> Power Management Supported (disabled) --> Advanced Power Management Supported (disabled) --> UDMA Mode 0 Supported --> UDMA Mode 2 Active --> UDMA Mode 3 Active --> UDMA Mode 4 Active --> UDMA Mode 5 Active SMART Structure Revision : $000A ID=$01 NAME=Raw Read Error Rate VALUE=$46 WORST=$43 RAW=$0000025FF716 THRSHLD=$00 FLAGS=$000F ID=$03 NAME=Spin Up Time VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0003 ID=$04 NAME=Start/Stop Count VALUE=$64 WORST=$64 RAW=$00000000005F THRSHLD=$00 FLAGS=$0032 ID=$05 NAME=Reallocated Sector Count VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0033 ID=$07 NAME=Seek Error Rate VALUE=$4B WORST=$3C RAW=$00000207883C THRSHLD=$00 FLAGS=$000F ID=$09 NAME=Power On Hours Count VALUE=$63 WORST=$63 RAW=$000000000390 THRSHLD=$00 FLAGS=$0032 ID=$0A NAME=Spin Retry Count VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0013 ID=$0C NAME=Power Cycle Count VALUE=$64 WORST=$64 RAW=$000000000102 THRSHLD=$00 FLAGS=$0032 ID=$C2 NAME=Temperature VALUE=$21 WORST=$37 RAW=$000000000021 THRSHLD=$00 FLAGS=$0022 Current HD temperature is 33C ID=$C3 NAME=Hardware ECC Recovered VALUE=$46 WORST=$43 RAW=$0000025FF716 THRSHLD=$00 FLAGS=$001A ID=$C5 NAME=Current Pending Sector VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0012 ID=$C6 NAME=Offline Correctable VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0010 ID=$C7 NAME=UltraATA CRC Error Rate VALUE=$C8 WORST=$C4 RAW=$000000000008 THRSHLD=$00 FLAGS=$003E ID=$C8 NAME=Write Error Rate VALUE=$64 WORST=$FD RAW=$000000000000 THRSHLD=$00 FLAGS=$0000 ID=$CA NAME=TA Increase Count VALUE=$64 WORST=$FD RAW=$000000000000 THRSHLD=$00 FLAGS=$0032 End of detection Reading Cfg Version 2.01 Old sensor properly detected --> Winbond W83627THF on ISA @ $290 Old sensor properly detected --> Winbond W83791D on Intel SMBus @ $2F Old sensor properly detected --> LM75 on Intel SMBus @ $48 Old sensor properly detected --> LM75 on Intel SMBus @ $49 Old sensor properly detected --> HD0 (120,0GB) on SMART @ $0 Old sensor properly detected --> HD1 (120,0GB) on SMART @ $1 Old sensor properly detected --> HD2 (8,9GB) on SMART @ $2 Old sensor properly detected --> HD3 (8,9GB) on SMART @ $3 PWM from Winbond W83627THF@$290(onISA@$290) --> Speed01 0 100 properly added PWM from Winbond W83627THF@$290(onISA@$290) --> Speed02 0 100 properly added PWM from Winbond W83791D@$2F(onSMBusIntel@$400) --> Speed03 0 100 properly added PWM from Winbond W83791D@$2F(onSMBusIntel@$400) --> Speed04 0 100 properly added PWM from Winbond W83791D@$2F(onSMBusIntel@$400) --> Speed05 0 100 properly added PWM from Winbond W83791D@$2F(onSMBusIntel@$400) --> Speed06 0 100 properly added PWM from Winbond W83791D@$2F(onSMBusIntel@$400) --> Speed07 0 100 properly added Temperature from Winbond W83627THF@$290(onISA@$290) --> Temp3 40 50 0 PWM 1 from 0 PWM 2 from 0 PWM 1 from 1 PWM 2 from 1 PWM 3 from 1 PWM 4 from 1 PWM 5 from 1 properly added Temperature from ST3120022A3JT04VBD --> HD1 40 50 0 PWM 1 from 0 PWM 2 from 0 PWM 1 from 1 PWM 2 from 1 PWM 3 from 1 PWM 4 from 1 PWM 5 from 1 properly added Temperature from Winbond W83627THF@$290(onISA@$290) --> CPU 40 50 0 PWM 1 from 0 PWM 2 from 0 PWM 1 from 1 PWM 2 from 1 PWM 3 from 1 PWM 4 from 1 PWM 5 from 1 properly added Temperature from ST3120026A3JT1S8QT --> HD0 40 50 0 PWM 1 from 0 PWM 2 from 0 PWM 1 from 1 PWM 2 from 1 PWM 3 from 1 PWM 4 from 1 PWM 5 from 1 properly added Temperature from Winbond W83627THF@$290(onISA@$290) --> Temp2 40 50 0 PWM 1 from 0 PWM 2 from 0 PWM 1 from 1 PWM 2 from 1 PWM 3 from 1 PWM 4 from 1 PWM 5 from 1 properly added Temperature from Winbond W83791D@$2F(onSMBusIntel@$400) --> Temp1 40 50 0 PWM 1 from 0 PWM 2 from 0 PWM 1 from 1 PWM 2 from 1 PWM 3 from 1 PWM 4 from 1 PWM 5 from 1 properly added Temperature from Winbond W83791D@$2F(onSMBusIntel@$400) --> Temp2 40 50 0 PWM 1 from 0 PWM 2 from 0 PWM 1 from 1 PWM 2 from 1 PWM 3 from 1 PWM 4 from 1 PWM 5 from 1 properly added Temperature from Winbond W83791D@$2F(onSMBusIntel@$400) --> Temp3 40 50 0 PWM 1 from 0 PWM 2 from 0 PWM 1 from 1 PWM 2 from 1 PWM 3 from 1 PWM 4 from 1 PWM 5 from 1 properly added Temperature from LM75@$48(onSMBusIntel@$400) --> Temp 40 50 0 PWM 1 from 0 PWM 2 from 0 PWM 1 from 1 PWM 2 from 1 PWM 3 from 1 PWM 4 from 1 PWM 5 from 1 properly added Temperature from LM75@$49(onSMBusIntel@$400) --> Temp 40 50 0 PWM 1 from 0 PWM 2 from 0 PWM 1 from 1 PWM 2 from 1 PWM 3 from 1 PWM 4 from 1 PWM 5 from 1 properly added Temperature from ST360015A3KC0F3MR --> HD2 40 50 0 PWM 1 from 0 PWM 2 from 0 PWM 1 from 1 PWM 2 from 1 PWM 3 from 1 PWM 4 from 1 PWM 5 from 1 properly added Temperature from ST360015A3KB0HYH7 --> HD3 40 50 0 PWM 1 from 0 PWM 2 from 0 PWM 1 from 1 PWM 2 from 1 PWM 3 from 1 PWM 4 from 1 PWM 5 from 1 properly added Fan from Winbond W83627THF@$290(onISA@$290) --> Fan01 properly added Fan from Winbond W83627THF@$290(onISA@$290) --> Fan02 properly added Fan from Winbond W83627THF@$290(onISA@$290) --> Fan03 properly added Fan from Winbond W83791D@$2F(onSMBusIntel@$400) --> Fan04 properly added Fan from Winbond W83791D@$2F(onSMBusIntel@$400) --> Fan05 properly added Fan from Winbond W83791D@$2F(onSMBusIntel@$400) --> Fan06 properly added Volt from Winbond W83627THF@$290(onISA@$290) --> Vcore properly added Volt from Winbond W83627THF@$290(onISA@$290) --> +12V properly added Volt from Winbond W83627THF@$290(onISA@$290) --> 3.3V properly added Volt from Winbond W83627THF@$290(onISA@$290) --> Vcc properly added Volt from Winbond W83627THF@$290(onISA@$290) --> Vin2 properly added Volt from Winbond W83627THF@$290(onISA@$290) --> 5Vsb properly added Volt from Winbond W83627THF@$290(onISA@$290) --> Vbat properly added Report3.txt (59,518 bytes)

abzac 2004-07-14 10:51 reporter ~0000148	Beta 16 better but drives the same: HD2 (60,0GB) on SMART at $2 HD2 : 34,0 min=33,0 max=34,0 mean=33,2 ST360015A (drive 2) : fitness=60% performance=100% HD3 (8,9GB) on SMART at $3 HD3 : 34,0 min=33,0 max=34,0 mean=33,2 ST360015A (drive 3) : fitness=60% performance=100%

alfredo 2004-07-14 11:15 manager ~0000149	Ok. I tried my best to report the same HD sizes as previous versions, but I guess I will have to report slightly different ones by using a new routine under Windows NT on. A new beta is available for you at the usual URL :-)

2004-07-14 11:47	Report4.txt (59,663 bytes) SpeedFan version : SpeedFan 4.14 beta 17 Motherboard model : ASUS P4P800 Deluxe *************************** BIOS CopyRight : A M I - 2000423BIOS Date: 02/23/04 12:18:46 Ver: 08.00.09BIOS Date: 02/23/04 12:18:46 Ver: 08.00.09 BIOS Date : 02/23/04 BIOS Extended Info : BIOS Name : AT/AT COMPATIBLE Windows NT Multiprocessor Free version 5.1.2600 2 processor(s) Intel Celeron Northwood-128 (nD1) (0.13 �m) family 15 model 2 stepping 9 brand 9 1 MHz (0KB level 1 - 0KB level 2) Running at 1 MHz (1000) I Agree to receive beta versions : ON ************************* Winbond W83627THF on ISA at $290 Temp1 : 35,0 min=35,0 max=35,0 mean=35,0 Winbond W83627THF on ISA at $290 Temp2 : 31,5 min=31,5 max=35,0 mean=32,3 Winbond W83627THF on ISA at $290 Temp3 : -48,0 min=-48,0 max=-47,0 mean=-48,0 Winbond W83627THF on ISA at $290 Fan1 : 3096 min=3096 max=3140 mean=3116 Winbond W83627THF on ISA at $290 Fan2 : 2744 min=2744 max=2766 mean=2760 Winbond W83627THF on ISA at $290 Fan3 : 1442 min=1430 max=1455 mean=1442 Winbond W83627THF on ISA at $290 Pwm1 : 100% min=100% max=100% mean=100% Winbond W83627THF on ISA at $290 Pwm2 : 100% min=100% max=100% mean=100% Winbond W83627THF on ISA at $290 Vcore : 1,55 min=1,55 max=1,60 mean=1,59 Winbond W83627THF on ISA at $290 +12V : 11,86 min=11,86 max=12,04 mean=11,95 Winbond W83627THF on ISA at $290 3.3V : 3,38 min=3,34 max=3,39 mean=3,38 Winbond W83627THF on ISA at $290 Vcc : 5,04 min=5,01 max=5,07 mean=5,04 Winbond W83627THF on ISA at $290 Vin2 : 0,00 min=0,00 max=0,00 mean=0,00 Winbond W83627THF on ISA at $290 5Vsb : 5,01 min=5,01 max=5,07 mean=5,03 Winbond W83627THF on ISA at $290 Vbat : 0,00 min=0,00 max=0,00 mean=0,00 [$00]=$01 [$01]=$FF [$02]=$01 [$03]=$FF [$04]=$00 [$05]=$00 [$06]=$00 [$07]=$00 [$08]=$01 [$09]=$01 [$0A]=$01 [$0B]=$01 [$0C]=$3C [$0D]=$3C [$0E]=$0A [$0F]=$0A [$10]=$01 [$11]=$FF [$12]=$00 [$13]=$00 [$14]=$00 [$15]=$01 [$16]=$01 [$17]=$3C [$18]=$42 [$19]=$00 [$1A]=$FF [$1B]=$FF [$1C]=$24 [$1D]=$32 [$1E]=$00 [$1F]=$DE [$20]=$61 [$21]=$C3 [$22]=$D3 [$23]=$BD [$24]=$FF [$25]=$3B [$26]=$A1 [$27]=$23 [$28]=$D7 [$29]=$79 [$2A]=$76 [$2B]=$F0 [$2C]=$00 [$2D]=$9B [$2E]=$68 [$2F]=$BE [$30]=$28 [$31]=$5D [$32]=$7A [$33]=$C8 [$34]=$68 [$35]=$4A [$36]=$01 [$37]=$F5 [$38]=$F8 [$39]=$5C [$3A]=$85 [$3B]=$9A [$3C]=$00 [$3D]=$9E [$3E]=$00 [$3F]=$00 [$40]=$03 [$41]=$00 [$42]=$00 [$43]=$FE [$44]=$FF [$45]=$00 [$46]=$00 [$47]=$9F [$48]=$2D [$49]=$03 [$4A]=$01 [$4B]=$C4 [$4C]=$18 [$4D]=$95 [$4E]=$00 [$4F]=$A3 [$50]=$FF [$51]=$FF [$52]=$80 [$53]=$FF [$54]=$FF [$55]=$FF [$56]=$00 [$57]=$80 [$58]=$90 [$59]=$20 [$5A]=$FF [$5B]=$FF [$5C]=$11 [$5D]=$04 [$5E]=$FF [$5F]=$05 [$60]=$61 [$61]=$C3 [$62]=$D3 [$63]=$BD [$64]=$FF [$65]=$3B [$66]=$A1 [$67]=$23 [$68]=$D7 [$69]=$79 [$6A]=$76 [$6B]=$F0 [$6C]=$00 [$6D]=$9B [$6E]=$68 [$6F]=$BE [$70]=$28 [$71]=$5D [$72]=$7A [$73]=$C8 [$74]=$68 [$75]=$4A [$76]=$01 [$77]=$F5 [$78]=$F8 [$79]=$5C [$7A]=$85 [$7B]=$9A [$7C]=$00 [$7D]=$9E [$7E]=$00 [$7F]=$00 [$80]=$01 [$81]=$FF [$82]=$01 [$83]=$FF [$84]=$00 [$85]=$00 [$86]=$00 [$87]=$00 [$88]=$01 [$89]=$01 [$8A]=$01 [$8B]=$01 [$8C]=$3C [$8D]=$3C [$8E]=$0A [$8F]=$0A [$90]=$01 [$91]=$FF [$92]=$00 [$93]=$00 [$94]=$00 [$95]=$01 [$96]=$01 [$97]=$3C [$98]=$42 [$99]=$00 [$9A]=$FF [$9B]=$FF [$9C]=$24 [$9D]=$32 [$9E]=$00 [$9F]=$DE [$A0]=$61 [$A1]=$C3 [$A2]=$D3 [$A3]=$BD [$A4]=$FF [$A5]=$3B [$A6]=$A1 [$A7]=$23 [$A8]=$D7 [$A9]=$79 [$AA]=$76 [$AB]=$F0 [$AC]=$00 [$AD]=$9B [$AE]=$68 [$AF]=$BE [$B0]=$28 [$B1]=$5D [$B2]=$7A [$B3]=$C8 [$B4]=$68 [$B5]=$4A [$B6]=$01 [$B7]=$F5 [$B8]=$F8 [$B9]=$5C [$BA]=$85 [$BB]=$9A [$BC]=$00 [$BD]=$9E [$BE]=$00 [$BF]=$00 [$C0]=$03 [$C1]=$00 [$C2]=$00 [$C3]=$FE [$C4]=$FF [$C5]=$00 [$C6]=$00 [$C7]=$9F [$C8]=$2D [$C9]=$03 [$CA]=$01 [$CB]=$C4 [$CC]=$18 [$CD]=$95 [$CE]=$00 [$CF]=$A3 [$D0]=$FF [$D1]=$FF [$D2]=$80 [$D3]=$FF [$D4]=$FF [$D5]=$FF [$D6]=$00 [$D7]=$80 [$D8]=$90 [$D9]=$20 [$DA]=$FF [$DB]=$FF [$DC]=$11 [$DD]=$04 [$DE]=$FF [$DF]=$05 [$E0]=$61 [$E1]=$C3 [$E2]=$D3 [$E3]=$BD [$E4]=$FF [$E5]=$3B [$E6]=$A1 [$E7]=$23 [$E8]=$D7 [$E9]=$79 [$EA]=$76 [$EB]=$F0 [$EC]=$00 [$ED]=$9B [$EE]=$68 [$EF]=$BE [$F0]=$28 [$F1]=$5D [$F2]=$7A [$F3]=$C8 [$F4]=$68 [$F5]=$4A [$F6]=$01 [$F7]=$F5 [$F8]=$F8 [$F9]=$5C [$FA]=$85 [$FB]=$9A [$FC]=$00 [$FD]=$9E [$FE]=$00 [$FF]=$00 Bank 0 --> [$50]=$FF [$51]=$FF [$52]=$80 [$53]=$FF [$54]=$FF [$55]=$FF [$56]=$00 [$57]=$80 [$58]=$90 [$59]=$20 [$5A]=$FF [$5B]=$FF [$5C]=$11 [$5D]=$04 [$5E]=$FF [$5F]=$05 Bank 1 --> [$50]=$1F [$51]=$80 [$52]=$00 [$53]=$4B [$54]=$00 [$55]=$50 [$56]=$00 [$57]=$FF [$58]=$FF [$59]=$FF [$5A]=$FF [$5B]=$FF [$5C]=$FF [$5D]=$FF [$5E]=$FF [$5F]=$FF Bank 2 --> [$50]=$D0 [$51]=$00 [$52]=$00 [$53]=$4B [$54]=$00 [$55]=$50 [$56]=$00 [$57]=$FF [$58]=$FF [$59]=$FF [$5A]=$FF [$5B]=$FF [$5C]=$FF [$5D]=$FF [$5E]=$FF [$5F]=$FF Bank 3 --> [$50]=$FF [$51]=$FF [$52]=$FF [$53]=$FF [$54]=$FF [$55]=$FF [$56]=$FF [$57]=$FF [$58]=$FF [$59]=$FF [$5A]=$FF [$5B]=$FF [$5C]=$FF [$5D]=$FF [$5E]=$FF [$5F]=$FF Bank 4 --> [$50]=$00 [$51]=$13 [$52]=$00 [$53]=$00 [$54]=$FE [$55]=$11 [$56]=$00 [$57]=$00 [$58]=$1B [$59]=$CE [$5A]=$01 [$5B]=$03 [$5C]=$11 [$5D]=$00 [$5E]=$FF [$5F]=$FF Bank 5 --> [$50]=$BC [$51]=$03 [$52]=$00 [$53]=$00 [$54]=$10 [$55]=$06 [$56]=$D8 [$57]=$8D [$58]=$00 [$59]=$00 [$5A]=$00 [$5B]=$00 [$5C]=$00 [$5D]=$00 [$5E]=$00 [$5F]=$00 Bank 6 --> [$50]=$C8 [$51]=$FD [$52]=$2C [$53]=$5A [$54]=$32 [$55]=$2F [$56]=$2E [$57]=$2D [$58]=$C8 [$59]=$FD [$5A]=$2C [$5B]=$5A [$5C]=$32 [$5D]=$2F [$5E]=$2E [$5F]=$2D Bank 7 --> [$50]=$FF [$51]=$FF [$52]=$FF [$53]=$FF [$54]=$FF [$55]=$FF [$56]=$FF [$57]=$FF [$58]=$FF [$59]=$FF [$5A]=$FF [$5B]=$FF [$5C]=$FF [$5D]=$FF [$5E]=$FF [$5F]=$FF Winbond W83791D on Intel SMBus at $2F Temp1 : 125,0 min=125,0 max=125,0 mean=125,0 Winbond W83791D on Intel SMBus at $2F Temp2 : 125,0 min=125,0 max=125,0 mean=125,0 Winbond W83791D on Intel SMBus at $2F Temp3 : -127,5 min=-127,5 max=-127,5 mean=-127,5 Winbond W83791D on Intel SMBus at $2F Fan1 : 0 min=0 max=0 mean=0 Winbond W83791D on Intel SMBus at $2F Fan2 : 0 min=0 max=0 mean=0 Winbond W83791D on Intel SMBus at $2F Fan3 : 0 min=0 max=0 mean=0 Winbond W83791D on Intel SMBus at $2F Pwm1 : 100% min=100% max=100% mean=100% Winbond W83791D on Intel SMBus at $2F Pwm2 : 100% min=100% max=100% mean=100% Winbond W83791D on Intel SMBus at $2F Pwm3 : 100% min=100% max=100% mean=100% Winbond W83791D on Intel SMBus at $2F Pwm4 : 100% min=100% max=100% mean=100% Winbond W83791D on Intel SMBus at $2F Pwm5 : 100% min=100% max=100% mean=100% [$00]=$00 [$01]=$00 [$02]=$00 [$03]=$00 [$04]=$00 [$05]=$00 [$06]=$00 [$07]=$00 [$08]=$00 [$09]=$8A [$0A]=$00 [$0B]=$00 [$0C]=$01 [$0D]=$00 [$0E]=$00 [$0F]=$FF [$10]=$00 [$11]=$00 [$12]=$7F [$13]=$00 [$14]=$00 [$15]=$10 [$16]=$00 [$17]=$00 [$18]=$00 [$19]=$00 [$1A]=$00 [$1B]=$00 [$1C]=$00 [$1D]=$00 [$1E]=$00 [$1F]=$80 [$20]=$11 [$21]=$05 [$22]=$4C [$23]=$BE [$24]=$05 [$25]=$05 [$26]=$05 [$27]=$7D [$28]=$FF [$29]=$FF [$2A]=$FF [$2B]=$7E [$2C]=$68 [$2D]=$00 [$2E]=$00 [$2F]=$ED [$30]=$B0 [$31]=$39 [$32]=$62 [$33]=$B3 [$34]=$B9 [$35]=$C4 [$36]=$6F [$37]=$AC [$38]=$A2 [$39]=$32 [$3A]=$24 [$3B]=$23 [$3C]=$54 [$3D]=$8C [$3E]=$FF [$3F]=$FF [$40]=$01 [$41]=$30 [$42]=$20 [$43]=$00 [$44]=$00 [$45]=$00 [$46]=$00 [$47]=$50 [$48]=$2F [$49]=$10 [$4A]=$01 [$4B]=$44 [$4C]=$01 [$4D]=$95 [$4E]=$00 [$4F]=$A3 [$50]=$FF [$51]=$FF [$52]=$FF [$53]=$FF [$54]=$FF [$55]=$FF [$56]=$00 [$57]=$80 [$58]=$72 [$59]=$70 [$5A]=$FF [$5B]=$00 [$5C]=$00 [$5D]=$00 [$5E]=$05 [$5F]=$FF [$60]=$FF [$61]=$FF [$62]=$FF [$63]=$FF [$64]=$FF [$65]=$FF [$66]=$FF [$67]=$FF [$68]=$FF [$69]=$FF [$6A]=$FF [$6B]=$FF [$6C]=$FF [$6D]=$FF [$6E]=$FF [$6F]=$FF [$70]=$FF [$71]=$FF [$72]=$FF [$73]=$FF [$74]=$FF [$75]=$FF [$76]=$FF [$77]=$FF [$78]=$FF [$79]=$FF [$7A]=$FF [$7B]=$FF [$7C]=$FF [$7D]=$FF [$7E]=$FF [$7F]=$FF [$80]=$01 [$81]=$FF [$82]=$01 [$83]=$FF [$84]=$00 [$85]=$00 [$86]=$00 [$87]=$00 [$88]=$01 [$89]=$01 [$8A]=$01 [$8B]=$01 [$8C]=$3C [$8D]=$3C [$8E]=$0A [$8F]=$0A [$90]=$00 [$91]=$00 [$92]=$00 [$93]=$01 [$94]=$FF [$95]=$00 [$96]=$00 [$97]=$00 [$98]=$01 [$99]=$01 [$9A]=$3C [$9B]=$00 [$9C]=$00 [$9D]=$00 [$9E]=$01 [$9F]=$01 [$A0]=$FF [$A1]=$FF [$A2]=$FF [$A3]=$00 [$A4]=$00 [$A5]=$00 [$A6]=$00 [$A7]=$00 [$A8]=$1A [$A9]=$FF [$AA]=$6F [$AB]=$08 [$AC]=$00 [$AD]=$FF [$AE]=$FF [$AF]=$FF [$B0]=$BC [$B1]=$DA [$B2]=$05 [$B3]=$FF [$B4]=$00 [$B5]=$38 [$B6]=$F6 [$B7]=$B6 [$B8]=$95 [$B9]=$38 [$BA]=$FF [$BB]=$FF [$BC]=$00 [$BD]=$91 [$BE]=$FF [$BF]=$FF [$C0]=$7D [$C1]=$80 [$C2]=$00 [$C3]=$4B [$C4]=$00 [$C5]=$50 [$C6]=$00 [$C7]=$FF [$C8]=$7D [$C9]=$80 [$CA]=$00 [$CB]=$4B [$CC]=$00 [$CD]=$50 [$CE]=$00 [$CF]=$FF [$D0]=$FF [$D1]=$FF [$D2]=$FF [$D3]=$FF [$D4]=$FF [$D5]=$FF [$D6]=$FF [$D7]=$FF [$D8]=$FF [$D9]=$FF [$DA]=$FF [$DB]=$FF [$DC]=$FF [$DD]=$FF [$DE]=$FF [$DF]=$FF [$E0]=$FF [$E1]=$FF [$E2]=$FF [$E3]=$FF [$E4]=$FF [$E5]=$FF [$E6]=$FF [$E7]=$FF [$E8]=$FF [$E9]=$FF [$EA]=$FF [$EB]=$FF [$EC]=$FF [$ED]=$FF [$EE]=$FF [$EF]=$FF [$F0]=$FF [$F1]=$FF [$F2]=$00 [$F3]=$FF [$F4]=$00 [$F5]=$01 [$F6]=$00 [$F7]=$FF [$F8]=$FF [$F9]=$02 [$FA]=$FF [$FB]=$00 [$FC]=$00 [$FD]=$10 [$FE]=$FF [$FF]=$1D Bank 0 --> [$50]=$FF [$51]=$FF [$52]=$FF [$53]=$FF [$54]=$FF [$55]=$FF [$56]=$00 [$57]=$80 [$58]=$72 [$59]=$70 [$5A]=$FF [$5B]=$00 [$5C]=$00 [$5D]=$00 [$5E]=$05 [$5F]=$FF Bank 1 --> [$50]=$03 [$51]=$07 [$52]=$07 [$53]=$07 [$54]=$07 [$55]=$07 [$56]=$07 [$57]=$07 [$58]=$07 [$59]=$03 [$5A]=$07 [$5B]=$03 [$5C]=$03 [$5D]=$07 [$5E]=$03 [$5F]=$03 Bank 2 --> [$50]=$FF [$51]=$FF [$52]=$FF [$53]=$FF [$54]=$FF [$55]=$FF [$56]=$FF [$57]=$FF [$58]=$FF [$59]=$FF [$5A]=$FF [$5B]=$FF [$5C]=$FF [$5D]=$FF [$5E]=$FF [$5F]=$FF Bank 3 --> [$50]=$FF [$51]=$FF [$52]=$FF [$53]=$FF [$54]=$FF [$55]=$FF [$56]=$FF [$57]=$FF [$58]=$FF [$59]=$FF [$5A]=$FF [$5B]=$FF [$5C]=$FF [$5D]=$FF [$5E]=$FF [$5F]=$FF Bank 4 --> [$50]=$FF [$51]=$FF [$52]=$FF [$53]=$FF [$54]=$FF [$55]=$FF [$56]=$FF [$57]=$FF [$58]=$FF [$59]=$FF [$5A]=$FF [$5B]=$FF [$5C]=$FF [$5D]=$FF [$5E]=$FF [$5F]=$FF Bank 5 --> [$50]=$FF [$51]=$FF [$52]=$FF [$53]=$FF [$54]=$FF [$55]=$FF [$56]=$FF [$57]=$FF [$58]=$FF [$59]=$FF [$5A]=$FF [$5B]=$FF [$5C]=$FF [$5D]=$FF [$5E]=$FF [$5F]=$FF Bank 6 --> [$50]=$FF [$51]=$FF [$52]=$FF [$53]=$FF [$54]=$FF [$55]=$FF [$56]=$FF [$57]=$FF [$58]=$FF [$59]=$FF [$5A]=$FF [$5B]=$FF [$5C]=$FF [$5D]=$FF [$5E]=$FF [$5F]=$FF Bank 7 --> [$50]=$FF [$51]=$FF [$52]=$FF [$53]=$FF [$54]=$FF [$55]=$FF [$56]=$FF [$57]=$FF [$58]=$FF [$59]=$FF [$5A]=$FF [$5B]=$FF [$5C]=$FF [$5D]=$FF [$5E]=$FF [$5F]=$FF LM75 on Intel SMBus at $48 Temp : 0,0 min=9,99999999999999966E89 max=-9,99999999999999966E89 mean=0,0 LM75 on Intel SMBus at $49 Temp : 0,0 min=9,99999999999999966E89 max=-9,99999999999999966E89 mean=0,0 HD0 (120,0GB) on SMART at $0 HD0 : 35,0 min=35,0 max=35,0 mean=35,0 ST3120026A (drive 0) : fitness=43% performance=100% HD1 (120,0GB) on SMART at $1 HD1 : 39,0 min=39,0 max=39,0 mean=39,0 ST3120022A (drive 1) : fitness=43% performance=100% HD2 (60,0GB) on SMART at $2 HD2 : 39,0 min=39,0 max=39,0 mean=39,0 ST360015A (drive 2) : fitness=60% performance=100% HD3 (60,0GB) on SMART at $3 HD3 : 39,0 min=39,0 max=39,0 mean=39,0 ST360015A (drive 3) : fitness=60% performance=100% ************************* Temp3 --> active=OFF chip=0 index=3 wanted=40 warning=50 offset=0 InTray=OFF Used pwms=1 2 3 4 5 6 7 HD1 --> active=ON chip=5 index=1 wanted=40 warning=50 offset=0 InTray=OFF Used pwms=1 2 3 4 5 6 7 CPU --> active=ON chip=0 index=1 wanted=40 warning=50 offset=0 InTray=OFF Used pwms=1 2 3 4 5 6 7 HD0 --> active=ON chip=4 index=1 wanted=40 warning=50 offset=0 InTray=ON Used pwms=1 2 3 4 5 6 7 Temp2 --> active=ON chip=0 index=2 wanted=40 warning=50 offset=0 InTray=OFF Used pwms=1 2 3 4 5 6 7 Temp1 --> active=OFF chip=1 index=1 wanted=40 warning=50 offset=0 InTray=OFF Used pwms=1 2 3 4 5 6 7 Temp2 --> active=OFF chip=1 index=2 wanted=40 warning=50 offset=0 InTray=OFF Used pwms=1 2 3 4 5 6 7 Temp3 --> active=OFF chip=1 index=3 wanted=40 warning=50 offset=0 InTray=OFF Used pwms=1 2 3 4 5 6 7 Temp --> active=OFF chip=2 index=1 wanted=40 warning=50 offset=0 InTray=OFF Used pwms=1 2 3 4 5 6 7 Temp --> active=OFF chip=3 index=1 wanted=40 warning=50 offset=0 InTray=OFF Used pwms=1 2 3 4 5 6 7 HD2 --> active=ON chip=6 index=1 wanted=40 warning=50 offset=0 InTray=OFF Used pwms=1 2 3 4 5 6 7 HD3 --> active=ON chip=7 index=1 wanted=40 warning=50 offset=0 InTray=OFF Used pwms=1 2 3 4 5 6 7 Fan01 --> active=ON chip=0 index=1 Fan02 --> active=ON chip=0 index=2 Fan03 --> active=ON chip=0 index=3 Fan04 --> active=ON chip=1 index=1 Fan05 --> active=ON chip=1 index=2 Fan06 --> active=ON chip=1 index=3 Speed01 --> active=ON chip=0 index=1 min=0 max=100 variate=OFF Speed02 --> active=ON chip=0 index=2 min=0 max=100 variate=OFF Speed03 --> active=ON chip=1 index=1 min=0 max=100 variate=OFF Speed04 --> active=ON chip=1 index=2 min=0 max=100 variate=OFF Speed05 --> active=ON chip=1 index=3 min=0 max=100 variate=OFF Speed06 --> active=ON chip=1 index=4 min=0 max=100 variate=OFF Speed07 --> active=ON chip=1 index=5 min=0 max=100 variate=OFF Vcore --> active=ON chip=0 index=1 +12V --> active=ON chip=0 index=2 3.3V --> active=ON chip=0 index=3 Vcc --> active=ON chip=0 index=4 Vin2 --> active=ON chip=0 index=5 5Vsb --> active=ON chip=0 index=6 Vbat --> active=ON chip=0 index=7 Set Fans to 100% on exit : ON Debug Mode : ON Use ISA : ON Use SMB : ON Scan PCI : ON Scan SMB : ON Slow SMB detection : OFF Detect SuperIO : ON ASUS Card Detect : ON DELL Support : OFF Command line : speedfan.exe Delta Fan Speed : 10 ************************* Chipset : Intel 82801EB ICH5 SMBus Base Address : $0400 SMBus Revision : 00000002 SMBus I/O Enabled : ON ************************* Bus : 00 Device: 00 Function : 00 --> 25708086 Vendor : 8086 Device : 2570 (rev 02) - Intel Corporation 82865G/PE/P, 82848P DRAM Controller / Host-Hub Interface 00: 8086 2570 0006 2090 0002 0600 0000 0000 0008 F800 0000 0000 0000 0000 0000 0000 20: 0000 0000 0000 0000 0000 0000 1043 80F2 0000 0000 00E4 0000 0000 0000 0000 0000 40: 0000 0000 0000 0000 0000 0000 0000 0000 0200 0008 8040 001C 0000 0000 0000 0000 60: 0500 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 80: 0000 0000 0000 0000 0000 0000 0000 0000 1110 1111 3301 0033 0000 0000 0A00 0038 A0: 0002 0030 4217 1F00 0304 0000 0000 0000 0080 0000 0030 0000 4000 0000 1020 0000 C0: 0000 0000 2000 200D 0000 0000 0000 0000 2802 0E04 0D0B 0000 0000 0000 0000 0130 E0: 0000 0000 A009 2106 0200 0000 0000 0000 0000 0000 0000 0000 0F68 0003 0000 0000 Bus : 00 Device: 01 Function : 00 --> 25718086 Vendor : 8086 Device : 2571 (rev 02) - Intel Corporation 82865G/PE/P, 82848P PCI-to-AGP Bridge 00: 8086 2571 0107 00A0 0002 0604 4000 0001 0000 0000 0000 0000 0100 4001 C0C0 22A0 20: FEA0 FEA0 E7F0 F7E0 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0008 40: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 60: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 80: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 A0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 C0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 E0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0F68 0003 0000 0000 Bus : 00 Device: 29 Function : 00 --> 24D28086 Vendor : 8086 Device : 24D2 (rev 02) - Intel Corporation 82801EB/ER USB UHCI Controller #1 00: 8086 24D2 0005 0280 0002 0C03 0000 0080 0000 0000 0000 0000 0000 0000 0000 0000 20: EF01 0000 0000 0000 0000 0000 1043 80A6 0000 0000 0000 0000 0000 0000 0110 0000 40: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 60: 0010 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 80: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 A0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 C0: 2F00 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 E0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0F66 0004 0000 0000 Bus : 00 Device: 29 Function : 01 --> 24D48086 Vendor : 8086 Device : 24D4 (rev 02) - Intel Corporation 82801EB/ER USB UHCI Controller #2 00: 8086 24D4 0005 0280 0002 0C03 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 20: EF21 0000 0000 0000 0000 0000 1043 80A6 0000 0000 0000 0000 0000 0000 0213 0000 40: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 60: 0010 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 80: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 A0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 C0: 2F00 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 E0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0F66 0004 0000 0000 Bus : 00 Device: 29 Function : 02 --> 24D78086 Vendor : 8086 Device : 24D7 (rev 02) - Intel Corporation 82801EB/ER USB UHCI Controller #3 00: 8086 24D7 0005 0280 0002 0C03 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 20: EF41 0000 0000 0000 0000 0000 1043 80A6 0000 0000 0000 0000 0000 0000 0312 0000 40: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 60: 0010 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 80: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 A0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 C0: 2F00 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 E0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0F66 0004 0000 0000 Bus : 00 Device: 29 Function : 03 --> 24DE8086 Vendor : 8086 Device : 24DE (rev 02) - Intel Corporation 82801EB/ER USB UHCI Controller #4 00: 8086 24DE 0005 0280 0002 0C03 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 20: EF81 0000 0000 0000 0000 0000 1043 80A6 0000 0000 0000 0000 0000 0000 0110 0000 40: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 60: 0010 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 80: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 A0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 C0: 2F00 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 E0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0F66 0004 0000 0000 Bus : 00 Device: 29 Function : 07 --> 24DD8086 Vendor : 8086 Device : 24DD (rev 02) - Intel Corporation 82801EB/ER USB EHCI Controller 00: 8086 24DD 0106 0290 2002 0C03 0000 0000 BC00 FEBF 0000 0000 0000 0000 0000 0000 20: 0000 0000 0000 0000 0000 0000 1043 80A6 0000 0000 0050 0000 0000 0000 0417 0000 40: 0000 0000 0000 0000 0000 0000 0000 0000 5801 C9C2 0000 0000 000A 20A0 0000 0000 60: 2020 01FF 0000 0000 0001 0000 0000 C000 0000 3FCF 0000 0000 0000 0000 0000 0000 80: 0000 0000 0001 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 A0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 C0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 5555 0000 0000 0000 E0: 0000 0000 0000 0000 0000 0000 0000 0000 8000 0000 8388 0040 0F66 0004 1406 0000 Bus : 00 Device: 30 Function : 00 --> 244E8086 Vendor : 8086 Device : 244E (rev C2) - Intel Corporation 82801BA/CA/DB, 6300ESB Hub Interface to PCI Bridge 00: 8086 244E 0107 0080 00C2 0604 0000 0001 0000 0000 0000 0000 0200 4002 D0D0 2280 20: FFF0 0000 FFF0 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0002 40: 2802 7630 0028 0000 0000 0000 0000 0000 6402 0073 0000 0000 0150 0034 0000 0000 60: 0000 0000 0000 0000 0000 0000 0000 0000 0010 0000 0000 0000 0000 0000 0000 0000 80: 0000 00A0 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 A0: 0000 0000 0000 0000 0000 0000 0000 0000 0001 0002 0000 00C0 0000 0000 0000 0000 C0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 E0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0F66 0004 0000 3153 Bus : 00 Device: 31 Function : 00 --> 24D08086 Vendor : 8086 Device : 24D0 (rev 02) - Intel Corporation 82801EB/ER LPC Interface Bridge 00: 8086 24D0 000F 0280 0002 0601 0000 0080 0000 0000 0000 0000 0000 0000 0000 0000 20: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 40: 0801 0000 0010 0000 0000 0000 0000 0000 0000 0000 0000 0000 0481 0000 0010 0000 60: 8B8A 8585 00D0 0000 8080 8B80 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 80: 0000 0000 0000 0000 0000 0000 0000 0000 FCFF 0000 0000 0000 0000 0000 0000 0000 A0: 0220 0000 0001 0000 000D 0000 0300 0000 0000 0000 0000 0000 0000 0000 0000 0000 C0: 0000 0000 0000 0000 0000 0000 0000 0000 2186 0000 0F02 0000 0004 0000 0000 0000 E0: 0000 8000 0000 1408 2233 0011 0000 4567 0000 0044 0004 0000 0F66 1E04 0000 0000 Bus : 00 Device: 31 Function : 01 --> 24DB8086 Vendor : 8086 Device : 24DB (rev 02) - Intel Corporation 82801EB/ER EIDE Controller 00: 8086 24DB 0007 0280 8A02 0101 0000 0000 0001 0000 0001 0000 0001 0000 0001 0000 20: FC01 0000 FC00 FFEF 0000 0000 1043 80A6 0000 0000 0000 0000 0000 0000 0100 0000 40: E377 A303 000B 0000 0007 0211 0000 0000 0000 0000 3030 0000 0000 0000 0000 0000 60: 0008 0000 0000 0000 0008 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 80: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 A0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 C0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 E0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0F66 0004 0000 0000 Bus : 00 Device: 31 Function : 03 --> 24D38086 Vendor : 8086 Device : 24D3 (rev 02) - Intel Corporation 82801EB/ER SMBus Controller 00: 8086 24D3 0001 0280 0002 0C05 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 20: 0401 0000 0000 0000 0000 0000 1043 80A6 0000 0000 0000 0000 0000 0000 020B 0000 40: 0001 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 60: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 80: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 A0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 C0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 E0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0F66 0004 0000 0000 Bus : 00 Device: 31 Function : 05 --> 24D58086 Vendor : 8086 Device : 24D5 (rev 02) - Intel Corporation 82801EB/ER AC'97 Audio Controller 00: 8086 24D5 0007 0290 0002 0401 0000 0000 E801 0000 EE81 0000 B800 FEBF B400 FEBF 20: 0000 0000 0000 0000 0000 0000 1043 80F3 0000 0000 0050 0000 0000 0000 0211 0000 40: 0109 0000 0000 0000 0000 0000 0000 0000 0001 C9C2 0000 0000 0000 0000 0000 0000 60: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 80: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 A0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 C0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 E0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0F66 0004 0000 0000 Bus : 01 Device: 00 Function : 00 --> 49661002 Vendor : 1002 Device : 4966 (rev 01) - ATI Technologies RV250 Radeon 9000/9000 Pro 00: 1002 4966 0187 02B0 0001 0300 FF04 0080 0008 F000 C001 0000 0000 FEAF 0000 0000 20: 0000 0000 0000 0000 0000 0000 1002 0002 0000 FEAC 0058 0000 0000 0000 0110 0008 40: 0000 0000 0000 0000 0000 0000 1002 0002 0001 0602 0000 0000 5002 0020 0217 2F00 60: 0304 1F00 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 80: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 A0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 C0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 E0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 Bus : 01 Device: 00 Function : 01 --> 496E1002 Vendor : 1002 Device : 496E (rev 01) - ATI Technologies RV250 Radeon 9000/9000 Pro - Secondary 00: 1002 496E 0087 02B0 0001 0380 4004 0000 0008 EC00 0000 FEAE 0000 0000 0000 0000 20: 0000 0000 0000 0000 0000 0000 1002 0003 0000 0000 0050 0000 0000 0000 00FF 0008 40: 0000 0000 0000 0000 0000 0000 0000 0000 0001 0602 0000 0000 5002 0020 0217 2F00 60: 0200 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 80: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 A0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 C0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 E0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 Bus : 02 Device: 04 Function : 00 --> 31641106 Vendor : 1106 Device : 3164 (rev 06) - VIA Technologies Inc VT6410 ATA133 RAID Controller 00: 1106 3164 0007 0290 0006 0104 4000 0000 DFE1 0000 DFAD 0000 DFA1 0000 DFA9 0000 20: DF91 0000 0000 0000 0000 0000 1043 80F4 0000 0000 00C0 0000 0000 0000 0117 0000 40: F21B 35C9 2D10 00C0 A8A8 2020 00FF B6B6 0F0F E1E1 0014 0000 A000 0020 0000 0000 60: 0200 0000 0000 0000 0200 0000 0000 0000 0102 0000 0000 0000 0102 0000 0000 0000 80: 7800 022B 0000 0000 7C00 022B 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 A0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 C0: 0001 0002 0000 0000 0000 0000 0000 0000 0006 3164 1043 80F4 0000 0000 0000 0000 E0: 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 0000 ************************* ISA Dump from address $290 --> <Winbond W83627THF> (ISA at $0290) (No error) 00: 01 FF 01 FF 00 00 00 00 01 01 01 01 3C 3C 0A 0A ............<<.. 10: 01 FF 00 00 00 01 01 3C 42 00 FF FF 24 32 00 D6 .......<B...$2.. 20: 61 C4 D3 BE FF 3B A1 23 DA 7A 75 F0 00 9B 68 BE a....;.#.zu...h. 30: 28 5D 7A C8 68 4A 01 F5 F8 5C 85 9A 00 9E 00 00 (]z.hJ...\...... 40: 03 00 00 FE FF 00 00 9F 2D 03 01 C4 18 95 00 A3 ........-....... 50: FF FF 00 FF FF FF 00 80 90 20 FF FF 11 04 FF 05 ......... ...... 60: 61 C4 D3 BE FF 3B A1 23 DA 7A 75 F0 00 9B 68 BE a....;.#.zu...h. 70: 28 5D 7A C8 68 4A 01 F5 F8 5C 85 9A 00 9E 00 00 (]z.hJ...\...... 80: 01 FF 01 FF 00 00 00 00 01 01 01 01 3C 3C 0A 0A ............<<.. 90: 01 FF 00 00 00 01 01 3C 42 00 FF FF 24 32 00 D8 .......<B...$2.. A0: 61 C4 D3 BE FF 3B A1 23 DA 7A 75 F0 00 9B 68 BE a....;.#.zu...h. B0: 28 5D 7A C8 68 4A 01 F5 F8 5C 85 9A 00 9E 00 00 (]z.hJ...\...... C0: 03 00 00 FE FF 00 00 9F 2D 03 01 C4 18 95 00 A3 ........-....... D0: FF FF 00 FF FF FF 00 80 90 20 FF FF 11 04 FF 05 ......... ...... E0: 61 C4 D3 BE FF 3B A1 23 DA 7A 75 F0 00 9B 68 BE a....;.#.zu...h. F0: 28 5D 7A C8 68 4A 01 F5 F8 5C 85 9A 00 9E 00 00 (]z.hJ...\...... ************************* SMB Dump from address $2F --> <Winbond W83791D> (SMBus at $0400) (No error) 00: 00 00 00 00 00 00 00 00 00 8A 00 00 01 00 00 FF ................ 10: 00 00 7F 00 00 10 00 00 00 00 00 00 00 00 00 80 ................ 20: 10 05 4B BD 05 05 05 7D FF FF FF 7E 68 00 00 ED ..K....}...~h... 30: B0 39 62 B3 B9 C4 6F AC A2 32 24 23 54 8C FF FF .9b...o..2$#T... 40: 01 30 20 00 00 00 00 50 2F 10 01 44 01 95 00 A3 .0 ....P/..D.... 50: FF FF FF FF FF FF 00 80 72 70 FF 00 00 00 05 FF ........rp...... 60: FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF ................ 70: FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF ................ 80: 01 FF 01 FF 00 00 00 00 01 01 01 01 3C 3C 0A 0A ............<<.. 90: 00 00 00 01 FF 00 00 00 01 01 3C 00 00 00 01 01 ..........<..... A0: FF FF FF 00 00 00 00 00 1A FF 6F 08 00 FF FF FF ..........o..... B0: BB DA 05 FF 00 38 F6 B6 95 38 FF FF 00 91 FF FF .....8...8...... C0: 7D 80 00 4B 00 50 00 FF 7D 80 00 4B 00 50 00 FF }..K.P..}..K.P.. D0: FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF ................ E0: FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF ................ F0: FF FF 00 FF 00 01 00 FF FF 02 FF 00 00 0F FF 1D ................ SMB Dump from address $44 --> <Unknown> (SMBus at $0400) (No error) 00: 00 00 0F 04 00 00 00 00 00 00 00 00 00 00 00 00 ................ 10: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 20: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 30: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 40: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 50: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 60: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 70: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 80: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 90: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ A0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ C0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ F0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ SMB Dump from address $48 --> <LM75> (SMBus at $0400) (No error) 00: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 10: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 20: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 30: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 40: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 50: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 60: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 70: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 80: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 90: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP A0: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP B0: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP C0: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP D0: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP E0: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP F0: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP SMB Dump from address $49 --> <LM75> (SMBus at $0400) (No error) 00: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 10: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 20: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 30: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 40: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 50: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 60: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 70: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 80: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP 90: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP A0: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP B0: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP C0: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP D0: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP E0: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP F0: 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 7D 00 4B 50 }.KP}.KP}.KP}.KP SMB Dump from address $50 --> <RAM> (SMBus at $0400) (No error) 00: 80 08 07 0D 0A 01 40 00 04 50 65 00 82 08 00 01 ......@..Pe..... 10: 0E 04 18 01 02 20 C0 60 70 00 00 3C 28 3C 28 40 ..... .`p..<(<(@ 20: 60 60 40 40 00 00 00 00 00 37 46 28 28 32 00 00 ``@@.....7F((2.. 30: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 10 5F ..............._ 40: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 50: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 60: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 70: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 80: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 90: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ A0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ C0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ F0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ SMB Dump from address $52 --> <RAM> (SMBus at $0400) (No error) 00: 80 08 07 0D 0A 01 40 00 04 50 65 00 82 08 00 01 ......@..Pe..... 10: 0E 04 18 01 02 20 C0 60 70 00 00 3C 28 3C 28 40 ..... .`p..<(<(@ 20: 60 60 40 40 00 00 00 00 00 37 46 28 28 32 00 00 ``@@.....7F((2.. 30: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 10 5F ..............._ 40: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 50: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 60: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 70: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 80: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ 90: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ A0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ B0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ C0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ D0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ E0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ F0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 ................ SMB Device at address $61 --> (SMBus at $0400) (No error) SMB Device at address $69 --> (SMBus at $0400) (No error) ************************* Retry attempts info for SMBus at $0400 [ -1]=158 [ 1]=158 ************************* ************************* ************************* Can change fan speeds : DON'T KNOW Can smoothly change fan speeds : DON'T KNOW Can stop fans : DON'T KNOW ************************* Tray icon size : 16x16 UPTIME : 0 days 01:15:27 ************************* I/O properly initialized !!!Exception in reading CPU INFO at startup (2)!!! Linked ISA BUS at $0290 Linked Intel 82801EB ICH5 SMBUS at $0400 Scanning ISA BUS at $0290... Winbond W83627THF (ID=$90) found on ISA at $290 Scanning Intel SMBus at $0400... Winbond W83791D (PLEASE REPORT) (ID=$72) found on SMBus at $2F LM75 found on SMBus at $48 LM75 found on SMBus at $49 SMART Enabled for drive 0 Found ST3120026A (120,0GB) SMART Enabled for drive 1 Found ST3120022A (120,0GB) SMART Enabled for drive 2 Found ST360015A (60,0GB) SMART Enabled for drive 3 Found ST360015A (60,0GB) End of detection *************************** I/O properly initialized !!!Exception in reading CPU INFO at startup (2)!!! Linked ISA BUS at $0290 Linked PCI Starting PCI scan... FUNC_DIS=$0044 Command Register : $0001 I/O Space Enabled Host Configuration Register : $01 SMBus Host Enabled Linked Intel 82801EB ICH5 SMBUS at $0400 HST_CNT=$08 PCI scan done! Scanning ISA BUS at $0290... About to check DELL support PCI scanning is enabled End of DELL support check Winbond W83627THF (ID=$90) found on ISA at $290 [$54]=$FE [$55]=$11 [$56]=$00 -> Temperature sensor diode 1 : Thermistor 2N3904 -> Temperature sensor diode 2 : PII diode -> Temperature sensor diode 3 : Thermistor 2N3904 -> FAN1 divisor : 2 -> FAN2 divisor : 4 -> FAN3 divisor : 8 -> PWM 1 mode : Manual PWM Control -> PWM 2 mode : Manual PWM Control Second pass... Winbond r[$20]=$82 r[$21]=$84 r[$07]=$02 Checking $0370 for SMSC (2)... Checking $0370 for SMSC (1)... Checking $03F0 for SMSC (2)... Checking $03F0 for SMSC (1)... Checking $002E for SMSC (1)... Checking $004E for SMSC (1)... Checking $002E for WINBOND... $002E --> Device ID=$82 Revision=$84 Checking $004E for WINBOND... Checking $0250 for WINBOND... Checking $0370 for WINBOND... Checking $03F0 for WINBOND... Checking $002E for NS... Checking $004E for NS... Checking $002E for ITE (1)... Registers [$002E] : $FF $FF $FF Scanning Intel SMBus at $0400... INTEL ICHx Slave Address found at $44 Something is at address $2F Winbond W83791D (PLEASE REPORT) (ID=$72) found on SMBus at $2F [$54]=$FF [$55]=$FF [$56]=$FF -> FAN1 divisor : 2 -> FAN2 divisor : 2 -> FAN3 divisor : 2 Something is at address $44 Something is at address $48 LM75 found on SMBus at $48 Something is at address $49 LM75 found on SMBus at $49 Something is at address $50 About to probe TOSHIBA SUPPORT... End of TOSHIBA SUPPORT probing Version 1.1 03 00000007 SMART Enabled for drive 0 --> S.M.A.R.T. attributes properly read --> S.M.A.R.T. thresholds properly read Start of DEBUG DATA for drive 0 000 : $5A0C $FF3F $37C8 $1000 $0000 $0000 $3F00 $0000 008 : $0000 $0000 $4A33 $3154 $3853 $5451 $2020 $2020 016 : $2020 $2020 $2020 $2020 $0000 $0040 $0400 $2E33 024 : $3630 $2020 $2020 $5453 $3133 $3032 $3230 $4136 032 : $2020 $2020 $2020 $2020 $2020 $2020 $2020 $2020 040 : $2020 $2020 $2020 $2020 $2020 $2020 $2020 $1080 048 : $0000 $002F $0000 $0002 $0002 $0700 $FF3F $1000 056 : $3F00 $10FC $FB00 $1001 $B04B $F90D $0000 $0700 064 : $0300 $7800 $7800 $F000 $7800 $0000 $0000 $0000 072 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 080 : $7E00 $1B00 $6B34 $017D $0340 $6934 $013C $0340 088 : $3F20 $0000 $0000 $FEFE $0000 $7D60 $0080 $0000 096 : $0000 $0000 $0000 $0000 $B04B $F90D $0000 $0000 104 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 112 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 120 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 128 : $0900 $B04B $F90D $B04B $F90D $2020 $0200 $B642 136 : $0000 $008A $063C $0A3C $FFFF $C607 $0001 $0008 144 : $F010 $0010 $0200 $3000 $0000 $0000 $0000 $06FE 152 : $0000 $0200 $0000 $0000 $0000 $0000 $2200 $0B00 160 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 168 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 176 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 184 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 192 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 200 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 208 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 216 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 224 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 232 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 240 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 248 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $A5E5 --> cylinders : 14593 --> tracks per cilinder : 255 --> sectors per track : 63 --> bytes per sector : 512 --> disk size : 120,0 End of DEBUG DATA for drive 0 Found ST3120026A (120,0GB) Found ST3120026A Firmware revision <3.06> (120,0GB) Serial <3JT1S8QT> --> ATA device --> Fixed Drive --> S.M.A.R.T. Supported (enabled) --> Power Management Supported (enabled) --> 48-bit Addressing ($4BB0 $0DF9 $0000 $0000) --> UDMA Mode 0 Supported --> UDMA Mode 1 Supported --> UDMA Mode 2 Supported --> UDMA Mode 3 Supported --> UDMA Mode 4 Supported --> UDMA Mode 5 Supported --> UDMA Mode 5 Active SMART Structure Revision : $000A ID=$01 NAME=Raw Read Error Rate VALUE=$40 WORST=$3B RAW=$000007F939E7 THRSHLD=$06 FLAGS=$000F ID=$03 NAME=Spin Up Time VALUE=$60 WORST=$60 RAW=$000000000000 THRSHLD=$00 FLAGS=$0003 ID=$04 NAME=Start/Stop Count VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$14 FLAGS=$0032 ID=$05 NAME=Reallocated Sector Count VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$24 FLAGS=$0033 ID=$07 NAME=Seek Error Rate VALUE=$40 WORST=$3C RAW=$00000029ABDA THRSHLD=$1E FLAGS=$000F ID=$09 NAME=Power On Hours Count VALUE=$64 WORST=$64 RAW=$00000000001F THRSHLD=$00 FLAGS=$0032 ID=$0A NAME=Spin Retry Count VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$61 FLAGS=$0013 ID=$0C NAME=Power Cycle Count VALUE=$64 WORST=$64 RAW=$000000000024 THRSHLD=$14 FLAGS=$0032 ID=$C2 NAME=Temperature VALUE=$23 WORST=$2C RAW=$000000000023 THRSHLD=$00 FLAGS=$0022 Current HD temperature is 35C ID=$C3 NAME=Hardware ECC Recovered VALUE=$40 WORST=$3B RAW=$000007F939E7 THRSHLD=$00 FLAGS=$001A ID=$C5 NAME=Current Pending Sector VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0012 ID=$C6 NAME=Offline Correctable VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0010 ID=$C7 NAME=UltraATA CRC Error Rate VALUE=$C8 WORST=$C3 RAW=$000000000009 THRSHLD=$00 FLAGS=$003E ID=$C8 NAME=Write Error Rate VALUE=$64 WORST=$FD RAW=$000000000000 THRSHLD=$00 FLAGS=$0000 ID=$CA NAME=TA Increase Count VALUE=$64 WORST=$FD RAW=$000000000000 THRSHLD=$00 FLAGS=$0032 Linked S.M.A.R.T. Version 1.1 03 00000007 SMART Enabled for drive 1 --> S.M.A.R.T. attributes properly read --> S.M.A.R.T. thresholds properly read Start of DEBUG DATA for drive 1 000 : $5A0C $FF3F $37C8 $1000 $0000 $0000 $3F00 $0000 008 : $0000 $0000 $4A33 $3054 $5634 $4442 $2020 $2020 016 : $2020 $2020 $2020 $2020 $0000 $0010 $0400 $2E33 024 : $3630 $2020 $2020 $5453 $3133 $3032 $3230 $4132 032 : $2020 $2020 $2020 $2020 $2020 $2020 $2020 $2020 040 : $2020 $2020 $2020 $2020 $2020 $2020 $2020 $1080 048 : $0000 $002F $0000 $0002 $0002 $0700 $FF3F $1000 056 : $3F00 $10FC $FB00 $1001 $B04B $F90D $0000 $0700 064 : $0300 $7800 $7800 $F000 $7800 $0000 $0000 $0000 072 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 080 : $7E00 $1B00 $6B34 $017D $0340 $6934 $013C $0340 088 : $3F20 $0000 $0000 $FEFE $0000 $006D $0080 $0000 096 : $0000 $0000 $0000 $0000 $B04B $F90D $0000 $0000 104 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 112 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 120 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 128 : $0100 $B04B $F90D $B04B $F90D $2020 $0200 $B642 136 : $0000 $008A $063C $0A3C $FFFF $C607 $0001 $0008 144 : $D009 $0004 $0200 $3000 $0000 $0000 $0000 $06FE 152 : $0000 $0200 $0000 $0000 $0000 $0000 $2200 $0B00 160 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 168 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 176 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 184 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 192 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 200 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 208 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 216 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 224 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 232 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 240 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 248 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $A5E5 --> cylinders : 14593 --> tracks per cilinder : 255 --> sectors per track : 63 --> bytes per sector : 512 --> disk size : 120,0 End of DEBUG DATA for drive 1 Found ST3120022A (120,0GB) Found ST3120022A Firmware revision <3.06> (120,0GB) Serial <3JT04VBD> --> ATA device --> Fixed Drive --> S.M.A.R.T. Supported (enabled) --> Power Management Supported (enabled) --> 48-bit Addressing ($4BB0 $0DF9 $0000 $0000) --> UDMA Mode 0 Supported --> UDMA Mode 1 Supported --> UDMA Mode 2 Supported --> UDMA Mode 3 Supported --> UDMA Mode 4 Supported --> UDMA Mode 5 Supported --> UDMA Mode 5 Active SMART Structure Revision : $000A ID=$01 NAME=Raw Read Error Rate VALUE=$41 WORST=$40 RAW=$00000CF39694 THRSHLD=$06 FLAGS=$000F ID=$03 NAME=Spin Up Time VALUE=$61 WORST=$61 RAW=$000000000000 THRSHLD=$00 FLAGS=$0003 ID=$04 NAME=Start/Stop Count VALUE=$64 WORST=$64 RAW=$000000000001 THRSHLD=$14 FLAGS=$0032 ID=$05 NAME=Reallocated Sector Count VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$24 FLAGS=$0033 ID=$07 NAME=Seek Error Rate VALUE=$40 WORST=$3C RAW=$0000002E7A2D THRSHLD=$1E FLAGS=$000F ID=$09 NAME=Power On Hours Count VALUE=$64 WORST=$64 RAW=$000000000025 THRSHLD=$00 FLAGS=$0032 ID=$0A NAME=Spin Retry Count VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$61 FLAGS=$0013 ID=$0C NAME=Power Cycle Count VALUE=$64 WORST=$64 RAW=$00000000002A THRSHLD=$14 FLAGS=$0032 ID=$C2 NAME=Temperature VALUE=$27 WORST=$34 RAW=$000000000027 THRSHLD=$00 FLAGS=$0022 Current HD temperature is 39C ID=$C3 NAME=Hardware ECC Recovered VALUE=$41 WORST=$40 RAW=$00000CF39694 THRSHLD=$00 FLAGS=$001A ID=$C5 NAME=Current Pending Sector VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0012 ID=$C6 NAME=Offline Correctable VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0010 ID=$C7 NAME=UltraATA CRC Error Rate VALUE=$C8 WORST=$BD RAW=$00000000000B THRSHLD=$00 FLAGS=$003E ID=$C8 NAME=Write Error Rate VALUE=$64 WORST=$FD RAW=$000000000000 THRSHLD=$00 FLAGS=$0000 ID=$CA NAME=TA Increase Count VALUE=$64 WORST=$FD RAW=$000000000000 THRSHLD=$00 FLAGS=$0032 SMART Enabled for drive 2 --> S.M.A.R.T. attributes properly read --> S.M.A.R.T. thresholds properly read Start of DEBUG DATA for drive 2 000 : $0000 $A5C5 $37C8 $1000 $0000 $0000 $3F00 $0000 008 : $0000 $0000 $4B33 $3043 $3346 $524D $2020 $2020 016 : $2020 $2020 $2020 $2020 $0000 $0010 $0400 $2E33 024 : $3333 $2020 $2020 $5453 $3633 $3030 $3531 $2041 032 : $2020 $2020 $2020 $2020 $2020 $2020 $2020 $2020 040 : $2020 $2020 $2020 $2020 $2020 $2020 $2020 $1080 048 : $0000 $002F $0000 $0002 $0002 $0700 $FF3F $1000 056 : $3F00 $10FC $FB00 $0700 $0300 $1001 $0700 $3F20 064 : $015B $0340 $30CF $FC06 $0000 $0000 $7E00 $1B00 072 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $C800 080 : $0000 $0000 $0000 $0000 $0000 $CA00 $0000 $0000 088 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 096 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 104 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 112 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 120 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 128 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 136 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 144 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 152 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 160 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 168 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 176 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 184 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 192 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 200 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 208 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 216 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 224 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 232 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 240 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 248 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0089 --> cylinders : 7297 --> tracks per cilinder : 255 --> sectors per track : 63 --> bytes per sector : 512 --> disk size : 60,0 End of DEBUG DATA for drive 2 Found ST360015A (60,0GB) Found ST360015A Firmware revision <3.33> (60,0GB) Serial <3KC0F3MR> --> ATA device SMART Structure Revision : $000A ID=$01 NAME=Raw Read Error Rate VALUE=$46 WORST=$43 RAW=$000002628AD1 THRSHLD=$00 FLAGS=$000F ID=$03 NAME=Spin Up Time VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0003 ID=$04 NAME=Start/Stop Count VALUE=$64 WORST=$64 RAW=$00000000005F THRSHLD=$00 FLAGS=$0032 ID=$05 NAME=Reallocated Sector Count VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0033 ID=$07 NAME=Seek Error Rate VALUE=$4B WORST=$3C RAW=$00000207918A THRSHLD=$00 FLAGS=$000F ID=$09 NAME=Power On Hours Count VALUE=$63 WORST=$63 RAW=$000000000390 THRSHLD=$00 FLAGS=$0032 ID=$0A NAME=Spin Retry Count VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0013 ID=$0C NAME=Power Cycle Count VALUE=$64 WORST=$64 RAW=$000000000102 THRSHLD=$00 FLAGS=$0032 ID=$C2 NAME=Temperature VALUE=$27 WORST=$37 RAW=$000000000027 THRSHLD=$00 FLAGS=$0022 Current HD temperature is 39C ID=$C3 NAME=Hardware ECC Recovered VALUE=$46 WORST=$43 RAW=$000002628AD1 THRSHLD=$00 FLAGS=$001A ID=$C5 NAME=Current Pending Sector VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0012 ID=$C6 NAME=Offline Correctable VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0010 ID=$C7 NAME=UltraATA CRC Error Rate VALUE=$C8 WORST=$C4 RAW=$000000000008 THRSHLD=$00 FLAGS=$003E ID=$C8 NAME=Write Error Rate VALUE=$64 WORST=$FD RAW=$000000000000 THRSHLD=$00 FLAGS=$0000 ID=$CA NAME=TA Increase Count VALUE=$64 WORST=$FD RAW=$000000000000 THRSHLD=$00 FLAGS=$0032 SMART Enabled for drive 3 --> S.M.A.R.T. attributes properly read --> S.M.A.R.T. thresholds properly read Start of DEBUG DATA for drive 3 000 : $5A0C $FF3F $37C8 $1000 $0000 $0000 $3F00 $0000 008 : $0000 $0000 $4B33 $3042 $5948 $3748 $2020 $2020 016 : $2020 $2020 $2020 $2020 $0000 $0010 $0400 $2E33 024 : $3335 $2020 $2020 $5453 $3633 $3030 $3531 $2041 032 : $2020 $2020 $2020 $2020 $2020 $2020 $2020 $2020 040 : $2020 $2020 $2020 $2020 $2020 $2020 $2020 $1080 048 : $0000 $002F $0000 $0002 $0002 $0700 $FF3F $1000 056 : $3F00 $10FC $FB00 $0700 $0300 $1001 $0700 $3F20 064 : $015B $0340 $30CF $FC06 $0000 $0000 $7E00 $1B00 072 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 080 : $0000 $0000 $20FB $ACFE $8669 $C401 $20FB $ACFE 088 : $8669 $C401 $AC92 $D7F1 $8669 $C401 $2200 $0000 096 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 104 : $1B01 $0000 $0000 $0000 $0000 $0000 $0000 $0000 112 : $0000 $0000 $DC73 $1B09 $0000 $0000 $C173 $1B09 120 : $0000 $0000 $C173 $1B09 $0000 $0000 $9800 $0000 128 : $0000 $0000 $0100 $0000 $1800 $0000 $0000 $0000 136 : $0000 $0000 $1400 $1400 $2800 $3800 $6000 $3800 144 : $C405 $0100 $0000 $4804 $0000 $0000 $0000 $0000 152 : $0000 $0000 $ADE4 $6F00 $0000 $0000 $2EE3 $F9DB 160 : $D266 $C401 $A0EB $A701 $8769 $C401 $A0EB $A701 168 : $8769 $C401 $A0EB $A701 $8769 $C401 $0080 $0100 176 : $0000 $0000 $0040 $0000 $0000 $0000 $2200 $0000 184 : $0000 $0000 $2EE3 $F9DB $D266 $C401 $20FB $ACFE 192 : $8669 $C401 $20FB $ACFE $8669 $C401 $AC92 $D7F1 200 : $8669 $C401 $0080 $0100 $0000 $0000 $0040 $0000 208 : $0000 $0000 $2200 $0000 $0000 $0000 $0000 $0000 216 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 224 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 232 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 240 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 248 : $0000 $0000 $0000 $0000 $0000 $0000 $0000 $0000 --> cylinders : 7297 --> tracks per cilinder : 255 --> sectors per track : 63 --> bytes per sector : 512 --> disk size : 60,0 End of DEBUG DATA for drive 3 Found ST360015A (60,0GB) Found ST360015A Firmware revision <3.53> (60,0GB) Serial <3KB0HYH7> --> ATA device --> Fixed Drive --> S.M.A.R.T. Supported (disabled) --> Advanced Power Management Supported (disabled) --> Automatic Acoustic Management Supported (Current:$22 Reccomended:$00) --> 48-bit Addressing ($0000 $0000 $0000 $0000) --> UDMA Mode 1 Supported --> UDMA Mode 2 Supported --> UDMA Mode 7 Supported --> UDMA Mode 0 Active --> UDMA Mode 3 Active --> UDMA Mode 5 Active --> UDMA Mode 6 Active SMART Structure Revision : $000A ID=$01 NAME=Raw Read Error Rate VALUE=$46 WORST=$43 RAW=$000002628AD7 THRSHLD=$00 FLAGS=$000F ID=$03 NAME=Spin Up Time VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0003 ID=$04 NAME=Start/Stop Count VALUE=$64 WORST=$64 RAW=$00000000005F THRSHLD=$00 FLAGS=$0032 ID=$05 NAME=Reallocated Sector Count VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0033 ID=$07 NAME=Seek Error Rate VALUE=$4B WORST=$3C RAW=$0000020791A8 THRSHLD=$00 FLAGS=$000F ID=$09 NAME=Power On Hours Count VALUE=$63 WORST=$63 RAW=$000000000390 THRSHLD=$00 FLAGS=$0032 ID=$0A NAME=Spin Retry Count VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0013 ID=$0C NAME=Power Cycle Count VALUE=$64 WORST=$64 RAW=$000000000102 THRSHLD=$00 FLAGS=$0032 ID=$C2 NAME=Temperature VALUE=$27 WORST=$37 RAW=$000000000027 THRSHLD=$00 FLAGS=$0022 Current HD temperature is 39C ID=$C3 NAME=Hardware ECC Recovered VALUE=$46 WORST=$43 RAW=$000002628AD7 THRSHLD=$00 FLAGS=$001A ID=$C5 NAME=Current Pending Sector VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0012 ID=$C6 NAME=Offline Correctable VALUE=$64 WORST=$64 RAW=$000000000000 THRSHLD=$00 FLAGS=$0010 ID=$C7 NAME=UltraATA CRC Error Rate VALUE=$C8 WORST=$C4 RAW=$000000000008 THRSHLD=$00 FLAGS=$003E ID=$C8 NAME=Write Error Rate VALUE=$64 WORST=$FD RAW=$000000000000 THRSHLD=$00 FLAGS=$0000 ID=$CA NAME=TA Increase Count VALUE=$64 WORST=$FD RAW=$000000000000 THRSHLD=$00 FLAGS=$0032 End of detection Reading Cfg Version 2.01 Old sensor properly detected --> Winbond W83627THF on ISA @ $290 Old sensor properly detected --> Winbond W83791D on Intel SMBus @ $2F Old sensor properly detected --> LM75 on Intel SMBus @ $48 Old sensor properly detected --> LM75 on Intel SMBus @ $49 Old sensor properly detected --> HD0 (120,0GB) on SMART @ $0 Old sensor properly detected --> HD1 (120,0GB) on SMART @ $1 Old sensor properly detected --> HD2 (60,0GB) on SMART @ $2 Old sensor properly detected --> HD3 (8,9GB) on SMART @ $3 PWM from Winbond W83627THF@$290(onISA@$290) --> Speed01 0 100 properly added PWM from Winbond W83627THF@$290(onISA@$290) --> Speed02 0 100 properly added PWM from Winbond W83791D@$2F(onSMBusIntel@$400) --> Speed03 0 100 properly added PWM from Winbond W83791D@$2F(onSMBusIntel@$400) --> Speed04 0 100 properly added PWM from Winbond W83791D@$2F(onSMBusIntel@$400) --> Speed05 0 100 properly added PWM from Winbond W83791D@$2F(onSMBusIntel@$400) --> Speed06 0 100 properly added PWM from Winbond W83791D@$2F(onSMBusIntel@$400) --> Speed07 0 100 properly added Temperature from Winbond W83627THF@$290(onISA@$290) --> Temp3 40 50 0 PWM 1 from 0 PWM 2 from 0 PWM 1 from 1 PWM 2 from 1 PWM 3 from 1 PWM 4 from 1 PWM 5 from 1 properly added Temperature from ST3120022A3JT04VBD --> HD1 40 50 0 PWM 1 from 0 PWM 2 from 0 PWM 1 from 1 PWM 2 from 1 PWM 3 from 1 PWM 4 from 1 PWM 5 from 1 properly added Temperature from Winbond W83627THF@$290(onISA@$290) --> CPU 40 50 0 PWM 1 from 0 PWM 2 from 0 PWM 1 from 1 PWM 2 from 1 PWM 3 from 1 PWM 4 from 1 PWM 5 from 1 properly added Temperature from ST3120026A3JT1S8QT --> HD0 40 50 0 PWM 1 from 0 PWM 2 from 0 PWM 1 from 1 PWM 2 from 1 PWM 3 from 1 PWM 4 from 1 PWM 5 from 1 properly added Temperature from Winbond W83627THF@$290(onISA@$290) --> Temp2 40 50 0 PWM 1 from 0 PWM 2 from 0 PWM 1 from 1 PWM 2 from 1 PWM 3 from 1 PWM 4 from 1 PWM 5 from 1 properly added Temperature from Winbond W83791D@$2F(onSMBusIntel@$400) --> Temp1 40 50 0 PWM 1 from 0 PWM 2 from 0 PWM 1 from 1 PWM 2 from 1 PWM 3 from 1 PWM 4 from 1 PWM 5 from 1 properly added Temperature from Winbond W83791D@$2F(onSMBusIntel@$400) --> Temp2 40 50 0 PWM 1 from 0 PWM 2 from 0 PWM 1 from 1 PWM 2 from 1 PWM 3 from 1 PWM 4 from 1 PWM 5 from 1 properly added Temperature from Winbond W83791D@$2F(onSMBusIntel@$400) --> Temp3 40 50 0 PWM 1 from 0 PWM 2 from 0 PWM 1 from 1 PWM 2 from 1 PWM 3 from 1 PWM 4 from 1 PWM 5 from 1 properly added Temperature from LM75@$48(onSMBusIntel@$400) --> Temp 40 50 0 PWM 1 from 0 PWM 2 from 0 PWM 1 from 1 PWM 2 from 1 PWM 3 from 1 PWM 4 from 1 PWM 5 from 1 properly added Temperature from LM75@$49(onSMBusIntel@$400) --> Temp 40 50 0 PWM 1 from 0 PWM 2 from 0 PWM 1 from 1 PWM 2 from 1 PWM 3 from 1 PWM 4 from 1 PWM 5 from 1 properly added Temperature from ST360015A3KC0F3MR --> HD2 40 50 0 PWM 1 from 0 PWM 2 from 0 PWM 1 from 1 PWM 2 from 1 PWM 3 from 1 PWM 4 from 1 PWM 5 from 1 properly added Temperature from ST360015A3KB0HYH7 --> HD3 40 50 0 PWM 1 from 0 PWM 2 from 0 PWM 1 from 1 PWM 2 from 1 PWM 3 from 1 PWM 4 from 1 PWM 5 from 1 properly added Fan from Winbond W83627THF@$290(onISA@$290) --> Fan01 properly added Fan from Winbond W83627THF@$290(onISA@$290) --> Fan02 properly added Fan from Winbond W83627THF@$290(onISA@$290) --> Fan03 properly added Fan from Winbond W83791D@$2F(onSMBusIntel@$400) --> Fan04 properly added Fan from Winbond W83791D@$2F(onSMBusIntel@$400) --> Fan05 properly added Fan from Winbond W83791D@$2F(onSMBusIntel@$400) --> Fan06 properly added Volt from Winbond W83627THF@$290(onISA@$290) --> Vcore properly added Volt from Winbond W83627THF@$290(onISA@$290) --> +12V properly added Volt from Winbond W83627THF@$290(onISA@$290) --> 3.3V properly added Volt from Winbond W83627THF@$290(onISA@$290) --> Vcc properly added Volt from Winbond W83627THF@$290(onISA@$290) --> Vin2 properly added Volt from Winbond W83627THF@$290(onISA@$290) --> 5Vsb properly added Volt from Winbond W83627THF@$290(onISA@$290) --> Vbat properly added Report4.txt (59,663 bytes)

abzac 2004-07-14 11:50 reporter ~0000150	it's seems ok with drives size: HD0 (120,0GB) on SMART at $0 HD0 : 35,0 min=35,0 max=35,0 mean=35,0 ST3120026A (drive 0) : fitness=43% performance=100% HD1 (120,0GB) on SMART at $1 HD1 : 39,0 min=39,0 max=39,0 mean=39,0 ST3120022A (drive 1) : fitness=43% performance=100% HD2 (60,0GB) on SMART at $2 HD2 : 39,0 min=39,0 max=39,0 mean=39,0 ST360015A (drive 2) : fitness=60% performance=100% HD3 (60,0GB) on SMART at $3 HD3 : 39,0 min=39,0 max=39,0 mean=39,0 ST360015A (drive 3) : fitness=60% performance=100% When you planning to release this version?

alfredo 2004-07-14 12:07 manager ~0000151	You can safely use the beta you got. I should release version 4.14 next week. Thank you for your patience. I'll get back to you to try the translation :-)
