View Issue Details

IDProjectCategoryView StatusLast Update
0002598SpeedFanFan controlpublic2016-12-21 20:01
Reporter09876ggddzz Assigned Toalfredo
Status resolvedResolutionopen
OSWindowsOS VersionWindows 8.1
Product Version4.50 beta
Fixed in Version4.50
Summary0002598: No fan control on Asus Z97-A
DescriptionMotherboard fan speeds and fan control not showing in Speedfan 4.50 Beta 2. GPU, CPU, 2 other temperature sensors are recognized along with CPU thread and utilization information. All other functions other than fan control work.
Steps To ReproduceLaunch Speedfan

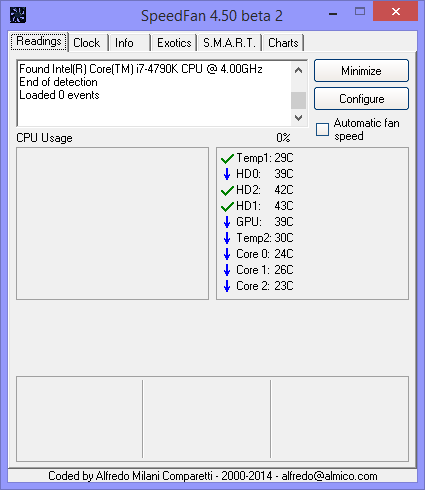

Left and Bottom controls for Fan speeds and setting are blank.
Additional InformationIntel i7-4790k CPU Temperature are not accurate. Speedfan monitors it at 23-26c while other 2 monitoring software saying that it is on 36-40c. GPU temp is accurate
TagsNo tags attached.
Motherboard ModelAsus Z97-a
Video Card ModelGTX 750ti


related to 0002270 resolvedalfredo Asus Z97 supported?
related to 0002596 resolvedalfredo Asus Z97 supported?


2014-08-15 08:15




2014-08-15 08:17

reporter   ~0008240

BTW I already send report of my motherboard Asus Z97-A on Speedfan.


2014-08-16 16:31

manager   ~0008241

Everything will work in 4.50 Final.


2014-08-17 11:08

reporter   ~0008242

Thank you so much on that status.. Asus Fan Expert is not good when monitoring other temps unlike speed fan. I came from z68 with working speedfan and I really love it. Will wait for that update. (y)


2014-08-17 11:41

manager   ~0008243

Sausuke, if you send me an email I will send you the very latest beta.


2014-08-17 14:40

reporter   ~0008244

Sent you an email.. Hope you'll received it I just googled your email (can't find it here :(


2014-08-17 17:22

reporter   ~0008245

Last edited: 2014-08-17 17:27

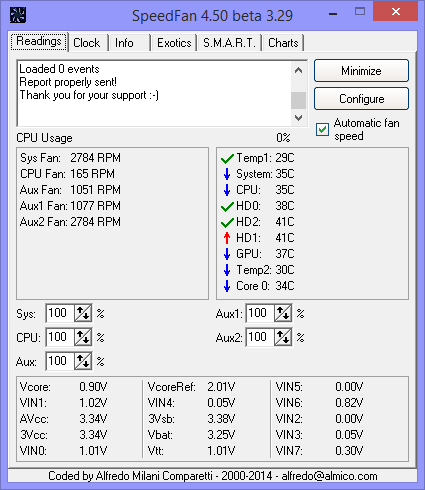

Hello already tested your latest beta and sent a report.. Can't stop the fans but have info on my current fans but it's inaccurate based on the pic

Here's my fan orientation (Picture attached above)
Sys Fan and Aux2 Fan= that's my CPU Fan Speed and CPU OPT Fan Speed (2.7k rpm)
Aux Fan and Aux1 Fan= My other fans
I have 3 fans.. 2 front and one on the back which runs @ 1k rpm.. It seems the other fan (which I don't know) is not detected.. Hope this helps

I've already tried enabled and disabled q-fan tuning but I can't really adjust the speed via speedfan XD

@Core Temps.. it is accurate now :)
There's other temps as well like AUXTIN0 to AUXTIN3 which have this temperature
AUXTIN0=71c/-127c which is random to those numbers AUXTIN1=-128c AUXTIN2=36c AUXTIN3=127c

2014-08-17 17:22


Latest Beta.png (13,054 bytes)
Latest Beta.png (13,054 bytes)


2014-08-19 09:27

manager   ~0008246

Thank you for the update. You can rename fans using the F2 key in CONFIGURE. SpeedFan labels them according to the H/M datasheet.
Some temperature sensors appear to be unused. Just uncheck them in CONFIGURE.
I am looking for the source of the readings of the other fans (with no success so far :-().


2014-08-19 12:22

reporter   ~0008247

will try to connect the other fan on chassis 2 (currently on chassis 4) and see if will can be detected by speedfan.. Feedback later :)
