View Issue Details

IDProjectCategoryView StatusLast Update
0002591SpeedFanFan controlpublic2016-12-21 20:01
Reporter09876ggddzz Assigned Toalfredo
PrioritynormalSeverityminorReproducibilityalways
Status resolvedResolutionfixed
OSWindowsOS Version8.1 Update 1
Product Version4.50 beta
Fixed in Version4.51 beta
Summary0002591: Can't detect back fan on Asus Z97-A
DescriptionI have 5 fans on my current rig and only 1 fan (back=chassis fan 1) can't be detected

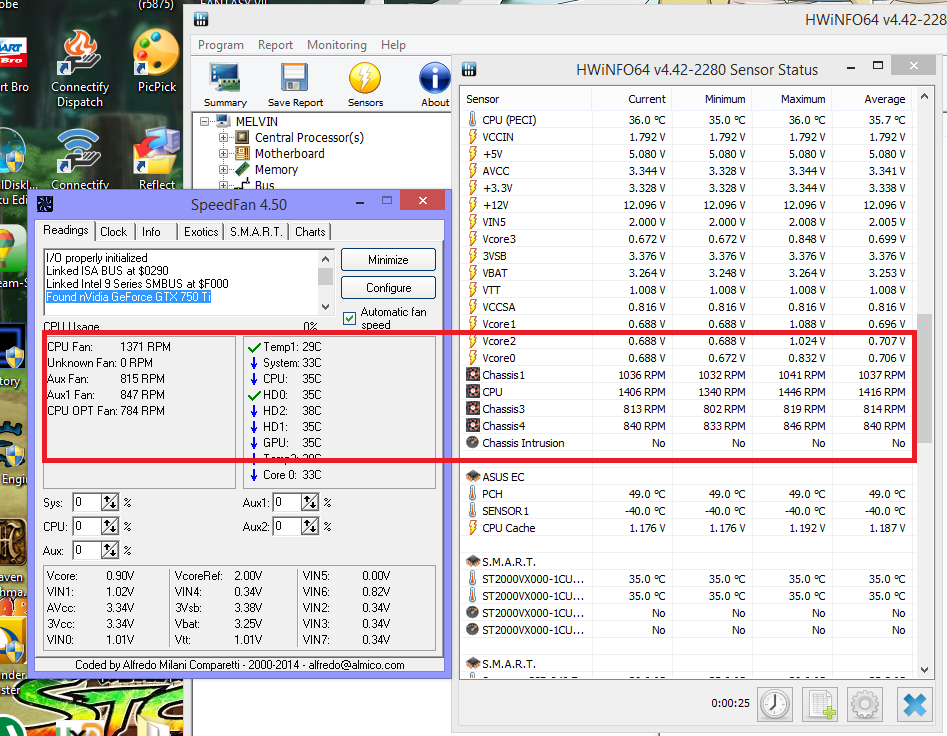

*Picture attached to see the undetected fan*
The undetected one is my back fan (Chassis 1)
Aux Fan and Aux1 Fan are my front fans (Chassis 3 and 4)

I don't know if this helps

ERROR collecting CPU Usage : 1 (Unable to locate the "Processor" performance object)
Win9x:NO 64Bit:YES GiveIO:NO SpeedFan:YES
I/O properly initialized
Linked ISA BUS at $0290
Linked Intel 9 Series SMBUS at $F000
Found nVidia GeForce GTX 750 Ti
Linked nVidiaI2C0 SMBUS at $3D403E3F
Linked nVidiaI2C1 SMBUS at $3D403637
Linked nVidiaI2C2 SMBUS at $3D405051
Scanning ISA BUS at $0290...
SuperIO Chip=Nuvoton NCT6791D
NCT6791D (ID=$C1) found (using SuperIO) on ISA at $290
Nuvoton NCT6791D at $290 msg : Nuvoton NCT6791D uses base address $0A00 too
Nuvoton NCT6791D at $290 msg : Nuvoton NCT6791D uses base address $0A00 too
DUPLICATE --> Nuvoton NCT6791D from ISA at $0290 WAS ALREADY ADDED AS Nuvoton NCT6791D from ISA at $0290
Scanning Intel SMBus at $F000...
Scanning I2CNVidia SMBus at $3D403E3F...
Scanning I2CNVidia SMBus at $3D403637...
Scanning I2CNVidia SMBus at $3D405051...
Found ST2000VX000-1CU164 on AdvSMART
Found ST2000DM001-9YN164 on AdvSMART
Found Samsung SSD 840 EVO 250GB on AdvSMART
Found SCSI drive 000-1CU164 (2000.4GB)
ProbeSCSI: WARNING: hard disk skipped because of invalid returned LogSense data
Found SCSI drive SSD 840 EVO 250G (250.1GB)
ProbeSCSI: WARNING: hard disk skipped because of invalid returned LogSense data
Found SCSI drive 001-9YN164 (2000.4GB)
ProbeSCSI: WARNING: hard disk skipped because of invalid returned LogSense data
Found ACPI temperature
Found Intel(R) Core(TM) i7-4790K CPU @ 4.00GHz
End of detection
Loaded 0 events
TagsNo tags attached.
Motherboard ModelAsus Z97-A
Video Card ModelGTX 750ti

Activities

2014-08-19 23:54



Undetected fan.png (225,660 bytes)
Undetected fan.png (225,660 bytes)

alfredo

2014-08-20 19:24

manager   ~0008202

Hello, can you send me a SEND REPORT from SpeedFan's INFO tab referencing to this issue in the notes, please?
By the way, am I wrong or both software in the picture are reporting only 4 fans?

sausuke

2014-08-21 03:25

reporter   ~0008203

Last edited: 2014-08-21 03:31

Hello.. The other software cannot detect the CPU_OPT Fan that's why it only detects 4.. Speed fan detects CPU_OPT fan and it's accurate based on RPM (same fans with 2.7k max rpms) but can't detect Chassis 1 fan which is the back fans of the motherboard. Will send a report now on speed fan with notes. Thanks :)

EDIT: Sent a report regarding the issue

alfredo

2014-08-22 11:32

manager   ~0008204

Sausuke, I have a new beta that should fix this issue.
Please, send me a SEND REPORT from SpeedFan's INFO tab.
Remeber to enter your correct email address when sending the report, otherwise I cannot get back to you. Add a reference to this issue in the report notes.

sausuke

2014-08-22 11:43

reporter   ~0008205

Sent a report.. sorry for the email though. Fixed that now on current report. Emailed also you on your email for the latest beta. Thanks

sausuke

2014-08-22 12:08

reporter   ~0008206

Thank you so much.. The undetected fan is now detected on your latest beta.. :D

alfredo

2014-08-22 12:10

manager   ~0008207

Waiting for the report ;-)

sausuke

2014-08-22 12:15

reporter   ~0008208

Done :D Changing fan speed (manual) is the only problem now.. Been using smartfan IV and thermal cruise as of moment XD

alfredo

2014-08-22 12:17

manager   ~0008209

Just enter CONFIGURE / ADVANCED and set PWM MODE to MANUAL. Easy :-)
