Summary0002321: Problems configuring ASRock Z77 Extreme 4: Missing Fan (RPM reporting), Missing Speed (RPM control), initialization error

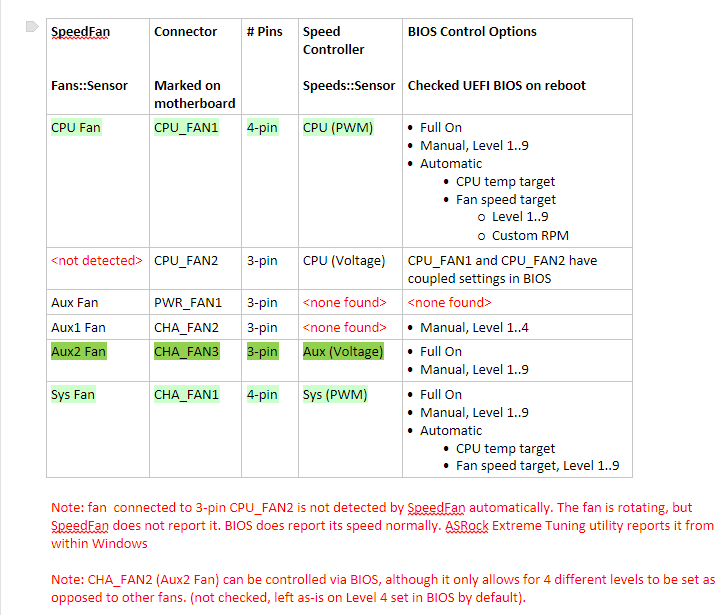

DescriptionPlease, see attached file for the table and notes I created configuring the motherboard to be controlled by SpeedFan. My intent is to use 3 x 3-pin 120 mm fans (Scythe SilentTyphoon) attached to the water cooling system to cool the motherboard. Since fans are 3-pins and do not support PWM control, I need 3-pin heads on the motherboards that report RPM and support speed control via voltage. To my surprise I have found only 1 from 6 available heads satisfying these conditions.

If you look at the attached table, you can see that CPU_FAN2 header almost satisfies the requirements, but unfortunately it is not detected in the "Fans" tab in SpeedFan thus does not have its speed reported by SpeedFan. It can be controlled via a "CPU" sensor in "Speeds" tab. "CPU" sensor seem to be controlling both CPU_FAN1 (via PWM) and CPU_FAN2 (via Voltage). Since the speed of the fan is reported by both UEFI BIOS and ASRock Extreme Tuning utility that came with the MB and runs in Windows, I assume this to be a bug in SpeedFan's sensor detection logic.

I have already sent a report via Info/Send Report but decided to also open an issue for better tracking. If more data is needed, I would be happy to provide it.

Initialization of the SpeedFan produces a warning. Not sure if it is expected, but it does not look like a good thing.

==================================================
Win9x:NO 64Bit:YES GiveIO:NO SpeedFan:YES
I/O properly initialized
Linked ISA BUS at $0290
Linked Intel 7 Series SMBUS at $F040
No active display found!
Scanning ISA BUS at $0290...
SuperIO Chip=Nuvoton NCT6776F
WARNING: bad Winbond($5CA3,$C1) identify (NCT6776F,W83677HG-I)
NCT6776F (ID=$C1) found (using SuperIO) on ISA at $290
Scanning Intel SMBus at $F040...
Found PLEXTOR PX-128M5S on AdvSMART
Found PLEXTOR PX-128M5S on AdvSMART
Found Samsung SSD 840 EVO 500GB on AdvSMART
Found ST2000DL003-9VT166 on AdvSMART
INFO : SCSI DISABLED by user or because iaStorA.sys is installed
Found Intel(R) Core(TM) i7-3770S CPU @ 3.10GHz
End of detection

Loaded 1 events
==================================================
Steps To Reproduce1. Connect fan to CPU_FAN2 header
1. Launch SpeedFan
2. Observe fan's speed not reported by any sensor in "Speeds" tab
TagsNo tags attached.
Motherboard ModelASRock Z77 Extreme4
Video Card Model

Activities

coolbaskin

2014-11-11 21:48

reporter


alfredo

2014-11-11 23:19

manager   ~0007625

Did you send me a SEND REPORT from SpeedFan's INFO tab?

coolbaskin

2014-11-12 16:49

reporter   ~0007636

Last edited: 2014-11-12 16:56

View 5 revisions

Yes. It does not have this ticket number mentioned, but you can correlate using the e-mail <username>@gmail.com (where <username> is to be replaced with my user name in this bug tracking system).

Once we resolve the problem, I would be more than happy to share the configuration file for this (very popular) motherboard.

For convenience I also uploaded the debug.nfo from the SpeedFan directory to this thread. And I also copied the report generated by SpeedFan in Info tab to a report.txt which I also uploaded.

Thanks for responsiveness!

coolbaskin

2014-11-12 16:52

reporter

debug.nfo (246,147 bytes)

coolbaskin

2014-11-12 16:55

reporter

report.txt (191,978 bytes)
Sender : coolbaskin@gmail.com
SpeedFan version : SpeedFan 4.51 beta 2
Motherboard model : ASRock Z77 Extreme4
