Summary0002093: MSI Z77A-G43 and speedfan 4.8 beta 6
DescriptionI installed several version of speedfan to make it work with my NMEDIA LCD PRO blue display, software that goes with it, is M. center version 3.0.3.8, They recommended speedfan for motherboard monitoring..

Speedfan not reporting the voltage, and Nvedia LCD Pro not displaying anything on the display.Screen is blank.

I see all temp,cpu sensor showing when speedfan is loading up, but no voltage and nothing on my NMEDIA LCD PRO blue display.

Is it conpatible with my motherboard MSI Z77A-G43 (MS-7758) ?

Any help would be appreciated Thanks

Here's what spedefan showing when loading:

Win9x:NO 64Bit:YES GiveIO:NO SpeedFan:YES
I/O properly initialized
Linked ISA BUS at $0290
Linked Intel 7 Series SMBUS at $F000
Found nVidia GeForce GTX 650
Linked nVidiaI2C0 SMBUS at $3D403E3F
Linked nVidiaI2C1 SMBUS at $3D403637
Linked nVidiaI2C2 SMBUS at $3D405051
Scanning ISA BUS at $0290...
SuperIO Chip=FINTEK F71869AD
F71869AD found on ISA at $290
Scanning Intel SMBus at $F000...
Scanning I2CNVidia SMBus at $3D403E3F...
Scanning I2CNVidia SMBus at $3D403637...
Scanning I2CNVidia SMBus at $3D405051...
Found INTEL SSDSC2CW240A3 on AdvSMART
Found ST2000DM001-1CH164 on AdvSMART
Found SCSI drive INTEL SSDSC2CW24 (240.1GB)
ProbeSCSI: WARNING: hard disk skipped because of invalid returned LogSense data
Found SCSI drive ST2000DM001-1CH1 (2000.4GB)
ProbeSCSI: WARNING: hard disk skipped because of invalid returned LogSense data
Found ACPI temperature
Found Intel(R) Core(TM) i7-3770K CPU @ 3.50GHz
End of detection
Loaded 0 event

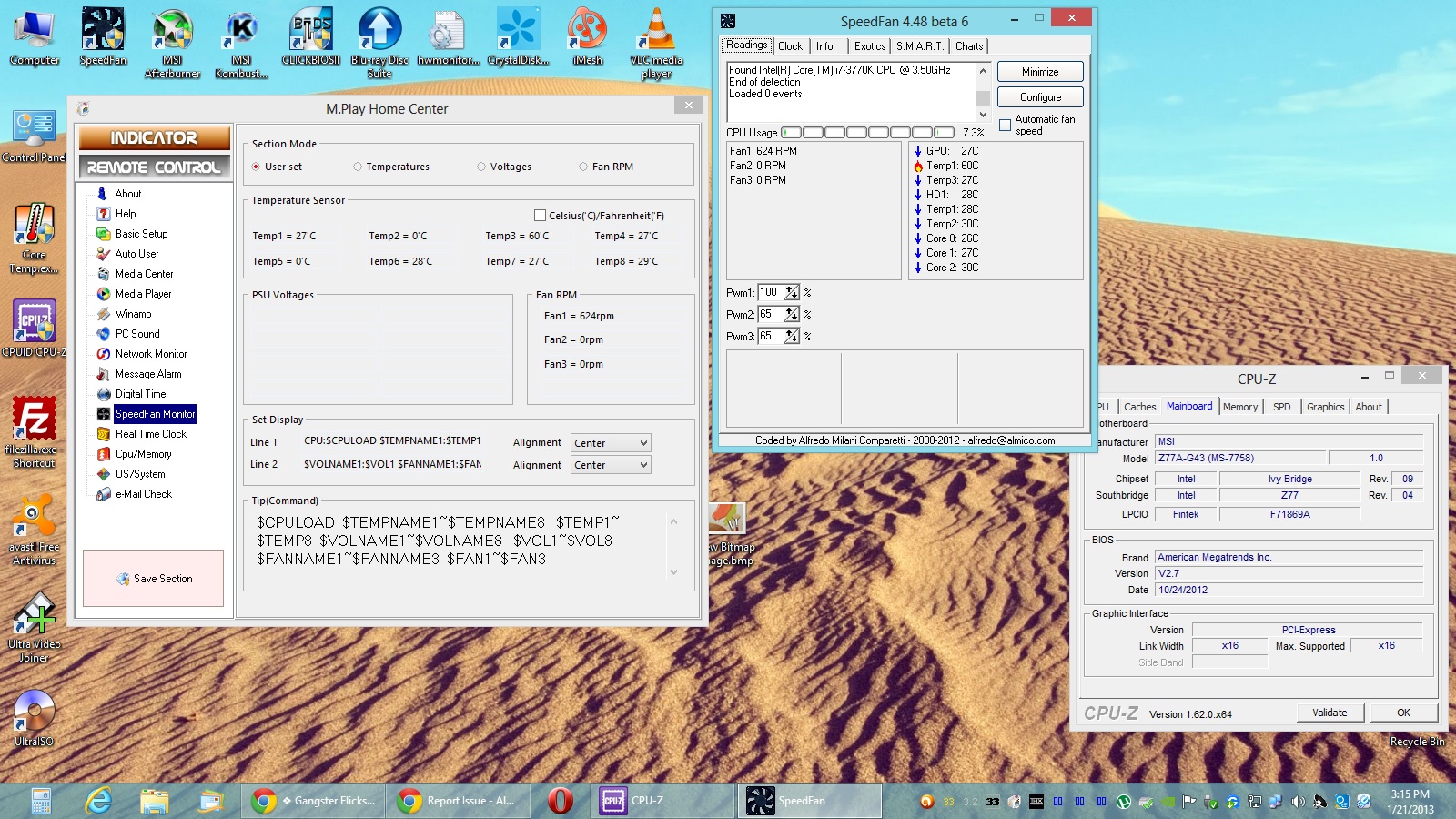

I included a pic
TagsNo tags attached.
Motherboard ModelMSI-Z77A-G43 (MS-7758)
Video Card ModelMSI GTX 650 OC

Activities

fonzy35

2013-01-21 20:19

reporter


fonzy35

2013-01-22 03:44

reporter   ~0007174

It's SpeedFan4.48 beta 6
