View Issue Details

Jump to NotesJump to History
IDProjectCategoryView StatusDate SubmittedLast Update
0002078SpeedFanHardware supportpublic2012-12-22 12:492015-05-04 01:31
Reporterhawky358 Assigned Toalfredo
PrioritylowSeverityfeatureReproducibilityN/A
Status assignedResolutionopen
Summary0002078: Support for AIO watercoolers
DescriptionI have previously emailed this, but I think this is a better place to put it since my request may be very niche and people can comment on it)

- Add support for Speedfan to read temperature data from all in one watercooling solutions which give water temp feedback. (Antec Kuhler 920 and Corsair H100i).

- Alternatively add an API to send 3rd party temp data or fan control.
(Control the fan speed or send temperature sensors to Speedfan using an API)


I have made a write-up as to the process of getting Kuhler 920 temp data (Attached).
Currently I have written a program which reads the temp and determines the appropriate fan speed then changes the value in Speedfan.

As I stated, this is probably a very niche feature request so I don't expect too much. (You will probably have to add a config tab or similar as well in order to activate this function and locate dll)

TagsCorsair H100i, Corsair Link, H80i
Motherboard ModelGigabyte Z68X-UD7-B3 (Not applicable)
Video Card Model

Activities

hawky358

2012-12-22 12:49

reporter

Kuhler 920.pdf (83,186 bytes)

MrPromaster

2015-01-30 23:20

reporter   ~0007759

I was just about to make a post about this, good thing I searched first.
I too emailed about this feature in August 2014 but at the time Corsair weren't providing information about how to communicate with their products. Fast forward to 2015 and two third party system monitoring programs have surprisingly advanced control over the H100i and H80i:

SIV: http://rh-software.com/
System Information Viewer can control fans, pump and LEDs using a launch command: -CRLCTL

HWiNFO: http://www.hwinfo.com/
Hardware Info can correctly display the rpms of the fans and pump.

This is all due to a community effort over on the Corsair link forums with the developers of both SIV and HWiNFO helping out.

http://forum.corsair.com/v3/showthread.php?t=120092

This forum post contains lots of information about how to communicate with the H100i firmware. I really hope this helps bring support for hardware monitor of the Corsair Link products to SpeedFan. SpeedFan is in another dimension compared to the Corsair Link software.

MrPromaster

2015-01-30 23:22

reporter

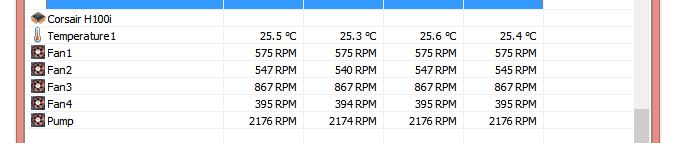

HWiNFO Corsair H100i.JPG (28,325 bytes)
HWiNFO Corsair H100i.JPG (28,325 bytes)

MrPromaster

2015-01-30 23:22

reporter

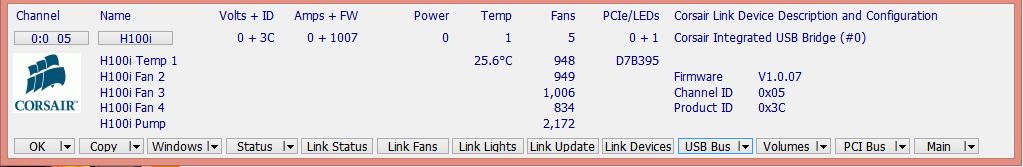

SIV Corsair H100i Status.JPG (45,268 bytes)
SIV Corsair H100i Status.JPG (45,268 bytes)

MrPromaster

2015-01-30 23:22

reporter

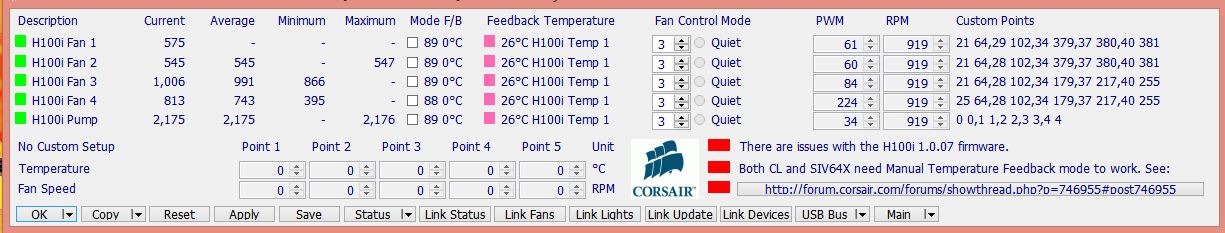

SIV Corsair H100i Fans.JPG (89,921 bytes)
SIV Corsair H100i Fans.JPG (89,921 bytes)

MrPromaster

2015-01-30 23:22

reporter

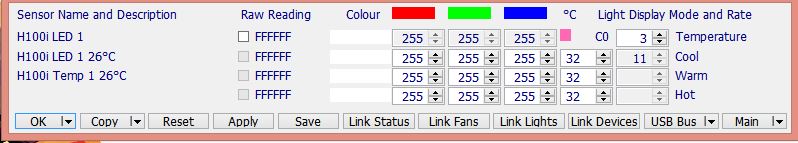

SIV Corsair H100i LEDs.JPG (41,239 bytes)
SIV Corsair H100i LEDs.JPG (41,239 bytes)

MrPromaster

2015-05-04 01:31

reporter   ~0007809

Is there any news on this? last time i heard anything, it was potentially queued up?
