Summary0002023: Zotac H77 not recognized
DescriptionThe Zotac H77-ITX-Wifi motherboard gives odd readings.
http://www.zotacusa.com/zotac-h77-itx-wifi-h77itx-a-e.html [^]
(link gives high resolution images when clicked on "1:1")

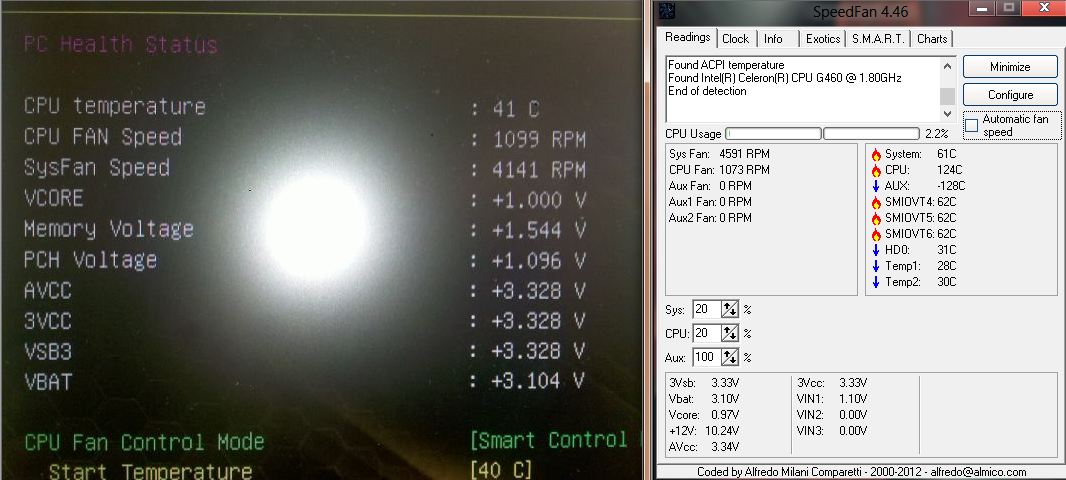

I have put a Celeron G460 in it, which at 35W runs very cool. The BIOS screen reads 41°C whereas Speedfan reports 124°C. Ambient room tempature is about 25°C

System Nuvoton NCT6776F 61C
CPU Nuvoton NCT6776F 124C
AUX Nuvoton NCT6776F -128C
SMIOVT4 Nuvoton NCT6776F 62C
SMIOVT5 Nuvoton NCT6776F 62C
SMIOVT6 Nuvoton NCT6776F 62C
HD0 HD0 (640.1GB) 31C
Temp1 ACPI 28C
Temp2 ACPI 30C
Core 0 INTEL CORE 38C

System- and CPU fan speed are read correct (touching them reduces the rpm), but setting a lower speed doesn't change rpms (checked visually).
CPU fan speed is 1060-1100 rpm, system fan speed is 4150-4200 rpm which is higher than rated: http://www.aimaxx.com/en/catalog/envicooler-5 [^]

The BIOS update program mentions a "Nuvoton NCT5532D Super IO", if that's any indication.
Additional InformationWin9x:NO 64Bit:YES GiveIO:NO SpeedFan:YES
I/O properly initialized
Linked ISA BUS at $0290
Scanning ISA BUS at $0290...
SuperIO Chip=Nuvoton NCT6776F
Linked ISA BUS at $0A30
Scanning ISA BUS at $0A30...
WARNING: bad Winbond($5CA3,$C1) identify (NCT6776F,W83677HG-I) NCT6776F (ID=$C1) found (using SuperIO) on ISA at $A30
Found SAMSUNG HM641JI on AdvSMART
Found ACPI temperature
Found Intel(R) Celeron(R) CPU G460 @ 1.80GHz
End of detection
Loaded 0 events
TagsNo tags attached.
Motherboard ModelZOTAC H77ITX-A-E
Video Card ModelIntel HD Graphics
Attached Filesjpg file icon speedfan.JPG [^] (94,776 bytes) 2012-07-26 10:46

- Relationships

-  Notes
(0007033)
alfredo (manager)
2012-07-26 19:16

Can you, please, upload (there is a button here for this) the output of a SEND REPORT (SpeedFan's INFO tab)?
(0007041)
Marc (reporter)
2012-07-31 09:57

Caro Alfredo,
I uploaded the output last week. I hope you received it.
