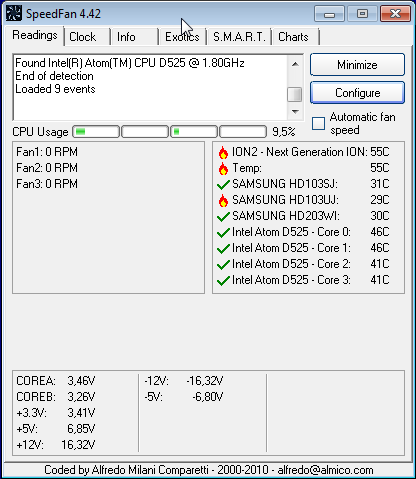

I'm using current stable version (4.42) SpeedFan. |
|
|
Did you send me a SEND REPORT? |
|
|
I already send you. Do you need new one? |
|
|
Hello Coool, I think I found your report and I am actively working on it. Right now I know that you have a Fintek SuperIO chip, but I still don't know its exact model number. Do you know it? |
|
|
Hi Alfredo! I cound not find anything useful on motherboard. Maybe chip is hidden under heatskins. :( I will try to find out. |
|
|
I looked at some pictures and I agree with you. Can you see the name of the chip using other tools similar to SpeedFan? |
|
|
I have send you report from SpeedFan 4.43 beta 6. |
|
|
|
|
|
Have a look at LM78 on ISA at $290 +5V : 6,85 min=6,85 max=6,85 mean=6,85 LM78 on ISA at $290 +12V : 16,32 min=16,32 max=16,32 mean=16,32 LM78 on ISA at $290 -12V : -16,32 min=-16,32 max=-16,32 mean=-16,32 LM78 on ISA at $290 -5V : -6,80 min=-6,80 max=-6,80 mean=-6,80 readings. Volts to high! |
|
|
SpeedFan 4.43 version reports fan speed. But still can't control fans. |
|
|
SpeedFan 4.44 beta 2 version reports fan speed. But still can't control fans. |
|
|
Did you enter CONFIGURE / ADVANCED and set PWM MODE to MANUAL SET PWM? |
|
|
I already send you report from 4.44 beta 2. As I mentioned when I set to Manual PWM mode fans stop. Not reporting Volts readings too. |
|
|
That's normal, because your SPEED % are set to 0%. Did you try to change them to 100%? |
|
|
I never meant that :-) Are you sure that fans can be controlled on your motherboard? |
|
|
I can't answer that question. I don't know the controllers circuit. All works fine (hardware controlled) when I set fans at Auto PWM Mode CONFIGURE / ADVANCED. I will try to set other mode in BIOS (AUTO now). |
|
|
Thank you. That's what I needed to know. I am going to check my source code now. |
|
|
I just sent you a beta that should fix the issue. |
|
|
Can you send me a SEND REPORT straight from SpeedFan and add a reference to this issue in the notes? It would help me. Thank you. |
|
|
Please use the latest 4.50 beta. |
|
|
|
|
The setting to use for PWM MODE is "Manual set PWM". Did you try it? |
|
|

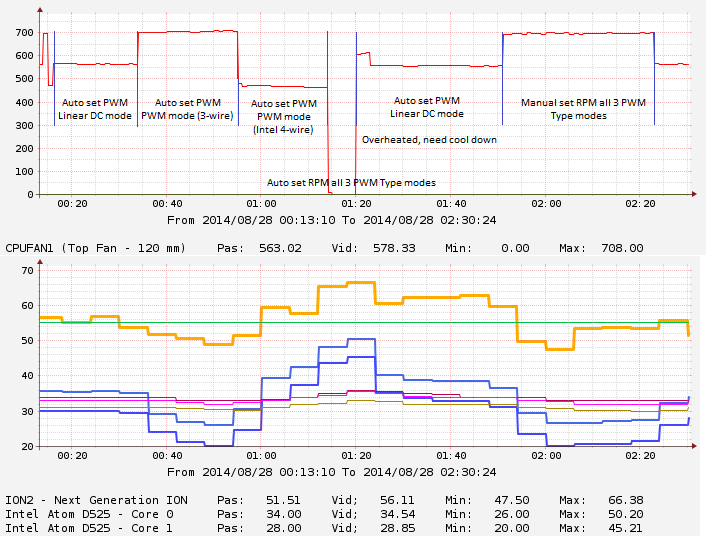

I'm blind :D. PWM Modes what I can choose on CPUFAN1 and SYSFAN1: * Auto set RPM * Auto set PWM * Manual set RPM * <reserved> - tried and fan stop spinning and on SYSFAN2: * Auto set RPM * Auto set PWM * Manual set RPM * Thermostat - can you comment something about this mode?! P.S Are you planning to add voltage reading support for Industrial type motherboards? P.S.S Manual link http://www.jetwaycomputer.com/download/Manual/NC98/NC98-V4.0.pdf |
