Summary0001648: EP45-UD3P not able to control fan in 3-pin PWR fan slot
DescriptionHi everyone
I am having a problem where i cannot control the fan in the PWR_FAN Slot. It should be controlled by Speed 03, but Speed 03 seems to be controling the CPU fan which at the same time is being controlled by Speed 01 so they both change CPU fan speed instead of one of my front fans. The fan that cannot be controlled is running at full speed which is not ideal and is shown by the RPM reading which is working fine.

Hopefully someone can help me
cheers
Alex
Additional InformationProcessor: Intel Core2 Duo CPU E8400 @ 3.60GHz (2 CPUs)
Memory: OCZ gold Series 4GB RAM 1066mhz
Hard Drive: 2x Samsung HD103SJ Spinpoint F3 1TB Hard Drive SATAII 7200rpm 32MB Cache (Raid 0)
Video Card: 2 x ATI Radeon HD 4870 1GB Crossfire
Monitor: Samsung T240
Sound Card: Auzentech Xfi Forte 7.1
Speakers/Headphones: KEF IQ5's Bi-Wired Cambrige Audio SR10 Topaz Amplifer / Sennheiser PC-350
Keyboard: Standard
Mouse: Razer Lachesis 4000DPI Precision Gaming Mouse
Mouse Surface: Razer Goliathus Standard Control Mouse Pad
Operating System: Windows 7 Professional 64Bit
Motherboard: Gigabyte EP45-UD3P
Computer Case: Antec Three Hundred
TagsNo tags attached.
Motherboard ModelEP45-UD3P Rev 1.0
Video Card Model2x HD4870 Crossfire

Activities

2010-08-12 02:09

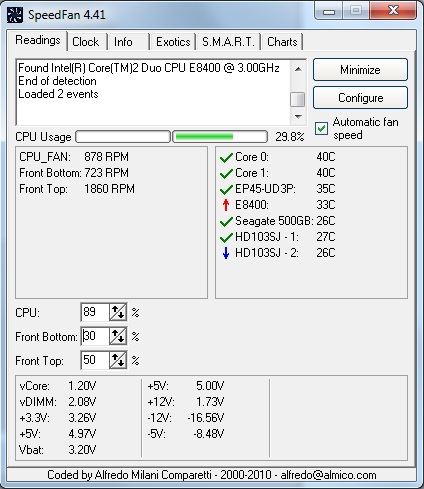

Speed Fan.jpg (72,432 bytes)
Speed Fan.jpg (72,432 bytes)

norman02us

2010-08-12 13:56

reporter   ~0005341

The PWR_FAN connector is never intended to allow fan control. It's purpose is to read the fan speed of the power supply fan (PWR_FAN = Power [Supply] Fan).
Use the CPU_FAN and SYS_FAN2 connectors to control your fans. If necessary, use one or two Y-cables to connect multiple fans to one connector.

Raider00657

2010-08-12 15:02

reporter   ~0005343

thx

Raider00657

2010-08-12 15:07

reporter   ~0005344

i don't know how to close this issue

norman02us

2010-08-12 17:58

reporter   ~0005345

Last edited: 2010-08-12 17:58

 You can't. This will be done by the developer/admin.
