View Issue Details
| ID | Project | Category | View Status | Date Submitted | Last Update |
|---|---|---|---|---|---|
| 0001593 | SpeedFan | Hardware support | public | 2010-04-25 01:51 | 2010-04-28 18:32 |
| Reporter | thor2002ro | Assigned To | alfredo | ||
| Priority | normal | Severity | major | Reproducibility | always |
| Status | acknowledged | Resolution | open | ||
| OS | Windows 7 x64 | ||||
| Product Version | 4.41 beta | ||||
| Summary | 0001593: Asus M4A89GTD PRO/USB3 AHCI causes speedfan freeze | ||||

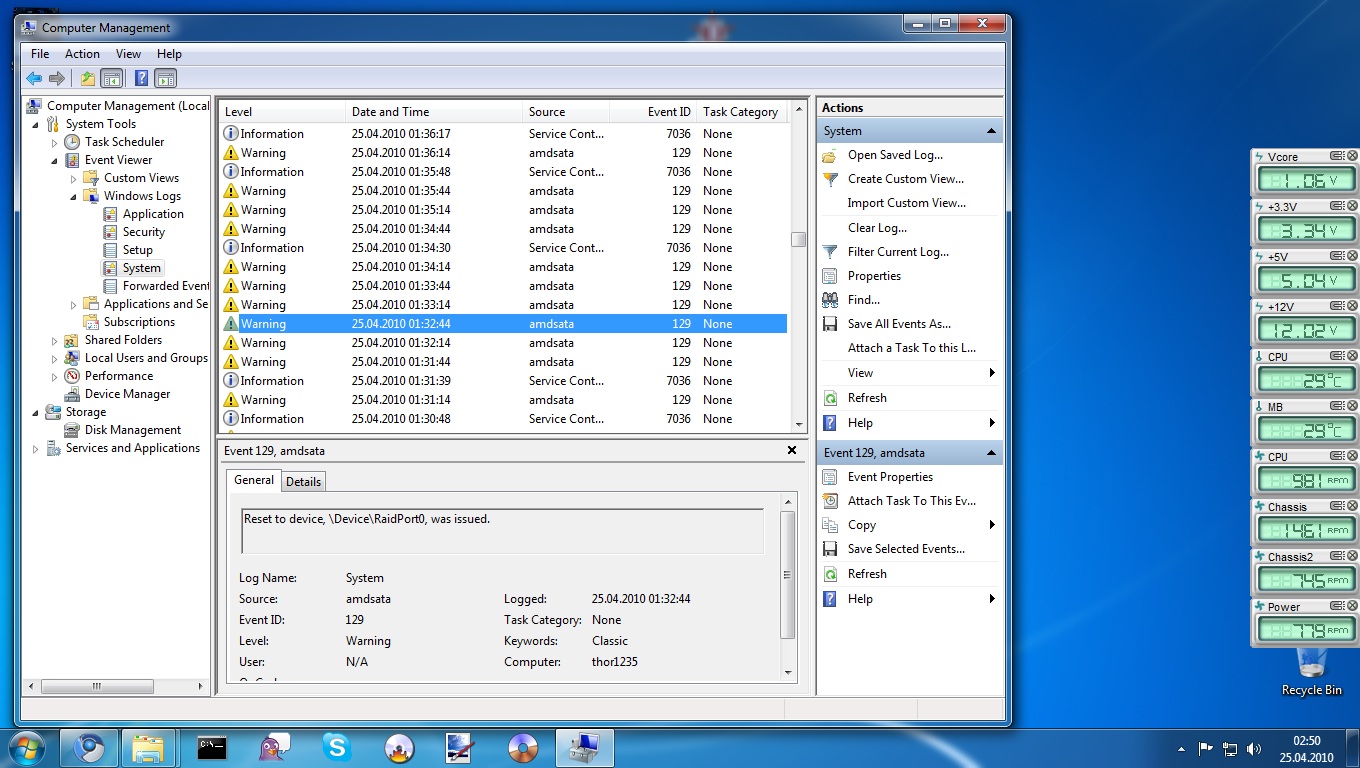

| Description | Setting SB850 in AHCI mode in bios and launching speedfan , Speedfan ui apears then freezes... and for about 1-2min hole windows is frozen after that windows unfreezes but speedfan remains unresponsive and checking event viewer reveales amdsata : Reset to device, \Device\RaidPort0, was issued. this happens avery time i try to run speedfan P.S. - In IDE mode it runs fine... | ||||
| Tags | No tags attached. | ||||
| Motherboard Model | Asus M4A89GTD PRO/USB3 | ||||
| Video Card Model | |||||
|
2010-04-25 01:51
|
|
|
|
sorry i meant Ahci.... dono how i writen "ACHI" ... |
|
2010-04-25 13:07
|
debug.nfo (5,128 bytes)
25.04.2010 01:55:39 - DEBUG FILE INITIALIZED
25.04.2010 01:55:39 - About to create SMBIOSExplorer object
25.04.2010 01:55:39 - SMBIOSExplorer object created
25.04.2010 01:55:39 - Not using GIVEIO on Windows 7
25.04.2010 01:55:39 - Initializing SFNVCPANEL
25.04.2010 01:55:39 - About to open NVCPL.DLL...
25.04.2010 01:55:39 - Error opening NVCPL.DLL!
25.04.2010 01:55:39 - Initializing SFSENSORS
25.04.2010 01:55:39 - Initializing ALMCPUUSAGE
25.04.2010 01:55:39 - CPU#0.MSR[$1B]=00000000FEE00900
25.04.2010 01:55:39 - CPU#1.MSR[$1B]=00000000FEE00800
25.04.2010 01:55:39 - CPU#2.MSR[$1B]=00000000FEE00800
25.04.2010 01:55:39 - CPU#3.MSR[$1B]=00000000FEE00800
25.04.2010 01:55:39 - ALMCPUUSAGE : OS is 6.1.7600
25.04.2010 01:55:39 - ALMCPUUSAGE.CHECK01
25.04.2010 01:55:39 - ALMCPUUSAGE.CHECK02
25.04.2010 01:55:39 - ALMCPUUSAGE.CHECK03
25.04.2010 01:55:39 - Using thread
25.04.2010 01:55:39 - ALMCPUUSAGE.CHECK04
25.04.2010 01:55:39 - CollectCPUDataInternal.01 size is $00002000
25.04.2010 01:55:39 - Initializing SFSCANEXCEPTIONS
25.04.2010 01:55:39 - Initializing SFSENDCONFIG
25.04.2010 01:55:39 - SpeedFan version : SpeedFan 4.41 beta 9
25.04.2010 01:55:39 - Command line : "C:\Program Files (x86)\SpeedFan\speedfan.exe"
25.04.2010 01:55:39 - FORMCREATE : before icon support
25.04.2010 01:55:39 - FORMCREATE : before LOADPARAMS
25.04.2010 01:55:39 - FORMCREATE : before sharedmem
25.04.2010 01:55:39 - FORMCREATE : about to link CHM help
25.04.2010 01:55:40 - FORMCREATE : maintaining logs
25.04.2010 01:55:40 - FORMCREATE : before PostMessage
25.04.2010 01:55:40 - About to Open I/O...
25.04.2010 01:55:40 - About to open I/O
25.04.2010 01:55:40 - Win9x:NO 64Bit:YES GiveIO:NO SpeedFan:YES
25.04.2010 01:55:40 - I/O properly opened...
25.04.2010 01:55:40 - About to check CPU features...
25.04.2010 01:55:40 - Detecting links...
25.04.2010 01:55:40 - Linking ISA at $0290
25.04.2010 01:55:40 - Linking PCI at $0000
25.04.2010 01:55:40 - CPU#0.MSR[$1B]=00000000FEE00900
25.04.2010 01:55:40 - Detecting sensors...
25.04.2010 01:55:40 - Probing DELL...
25.04.2010 01:55:40 - Probing SuperIO (new)...
25.04.2010 01:55:40 - Probing SuperIO (old)...
25.04.2010 01:55:40 - SuperIO probing ended...
25.04.2010 01:55:40 - Probing ISA at $290...
25.04.2010 01:55:40 - Probing LINK <ISA@$290> at address $0290...
25.04.2010 01:55:40 - F71882F or F71889F check found $3A $12 $E0 $00 $00
25.04.2010 01:55:40 - F71882F or F71889F check found $3A $12 $E0 $00 $00
25.04.2010 01:55:40 - Probe #13 done on LINK <ISA@$290> at address $0290...
25.04.2010 01:55:40 - FOUND IT8718F at $0290
25.04.2010 01:55:40 - Probe #14 done on LINK <ISA@$290> at address $0290...
25.04.2010 01:55:40 - Probing ended on LINK <ISA@$290> at address $0290...
25.04.2010 01:55:40 - Can't enable DELL SUPPORT on a 64 bit system. Sorry.
25.04.2010 01:55:40 - Probing SiS5595...
25.04.2010 01:55:40 - About to probe Intel QST
25.04.2010 01:55:40 - End of Intel QST detection
25.04.2010 01:55:40 - About to probe Intel FB-DIMM support
25.04.2010 01:55:40 - End of Intel FB-DIMM detection
25.04.2010 01:55:40 - About to probe TOSHIBA SENSORS
25.04.2010 01:55:40 - End of TOSHIBA SENSORS detection
25.04.2010 01:55:40 - About to probe Areca RAID
25.04.2010 01:55:40 - temporary path is C:\Users\THOR20~1\AppData\Local\Temp\
25.04.2010 01:55:40 - ProbeArecaRAID: interface properly linked
25.04.2010 01:55:40 - ProbeArecaRAID: 0 Areca RAID controller(s) found
25.04.2010 01:55:40 - End of Areca RAID detection
25.04.2010 01:55:40 - About to probe AMCC/3ware RAID
25.04.2010 01:55:40 - temporary path is C:\Users\THOR20~1\AppData\Local\Temp\
25.04.2010 01:55:40 - Error retrieving controllers count!!!
25.04.2010 01:55:40 - RET=0 Flags=1 API=106 OS=0 DRV=0 CTRL=0
25.04.2010 01:55:40 - -> DATA=
25.04.2010 01:55:40 - -> TEXT=(0x0B:0x006A): Invalid API binary arch, mismatch build and runtime arch.
25.04.2010 01:55:40 - End of AMCC/3ware RAID detection
25.04.2010 01:55:40 - About to probe S.M.A.R.T.
25.04.2010 01:55:40 - About to probe SMART (Advanced Methods)...
25.04.2010 01:55:40 - CPU#1.MSR[$1B]=00000000FEE00800
25.04.2010 01:55:40 - WBEM Locator creation took 93 ms to execute
25.04.2010 01:55:40 - CPU#2.MSR[$1B]=00000000FEE00800
25.04.2010 01:55:40 - Server Connect took 78 ms to execute
|
|
|
Does the problem occur, if you activate/deactivate USB3/SATAIII in the BIOS? |
|
|
yes still happens ... the same problem I observed on my friends GA-M790FXT-UD5P uppon installing newer ati sb chipset drivers 10.2+. I dont know if its relevant or not but we both have WD Caviar Black 1TB |
|
|
What if you run SpeedFan with /NOADVSMARTSCAN command line parameter? |
|
|
Another, less drastic, switch is /NOSUMMARYLOGSCAN . |
|
|
works with /NOADVSMARTSCAN :) hdd smarts are shown as well added debug after adding parameter |
|
