0000796: SATA Drives not recognized - Almico's Bug Tracker

ID	Project	Category	View Status	Date Submitted	Last Update

0000796	SpeedFan	S.M.A.R.T.	public	2007-02-17 12:15	2008-05-11 16:24

Reporter	ganix	Assigned To	alfredo
Priority	normal	Severity	feature	Reproducibility	always
Status	resolved	Resolution	no change required
Platform	Athlon 64 X2	OS	Windows Vista	OS Version	Business 32Bit
Product Version	4.31

Summary	0000796: SATA Drives not recognized

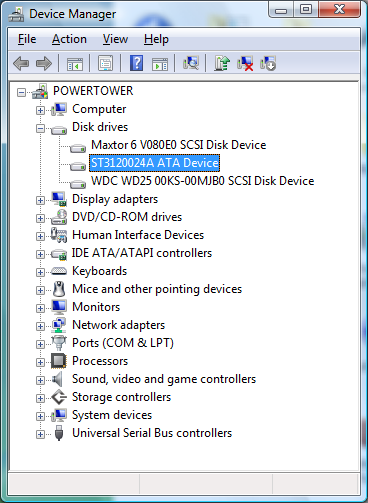

Description	My SATA Drives, that are recognized from speedfan on Win XP SP2, are not showing in speedfan on Vista. My only PATA Drive is listed in speedfan on both vista and XP. The SATA drives work perfectly on vista without installing thirdparty drivers. they are listed in device manager (attached screenshot) but not found by speedfan.
Steps To Reproduce	Start Vista, run speedfan.
Additional Information	Win9x:NO 64Bit:NO GiveIO:YES SpeedFan:YES I/O properly initialized Linked ISA BUS at $0290 Scanning ISA BUS at $0290... Winbond W83627EHG (ID=$A1) found on ISA at $290 SuperIO Chip=Winbond W83627EHF SMART Enabled for drive 0 Found ST3120024A (120,0GB) End of detection Loaded 0 events
Tags	No tags attached.

Motherboard Model
Video Card Model	GeForce 6100 (NForce 6 (430) Chipset)

2007-02-17 12:15	speedfan-sata-drives.png (56,641 bytes) speedfan-sata-drives.png (56,641 bytes)

stormy13 2007-02-26 20:08 reporter ~0002358	Actually it is the drivers. I can get the same thing with my Seagate 250 gb SATAII drive on a JMicron controller (Asrock Dual SATA2 motherboard). If I use the drivers from Asrock's site (2.07) Speedfan and any other program that monitors temps will report/show the hard drive temps. If I use any other JMicron driver the drive shows up in Device Manager just fine like yours does, but nothing will report/show the temps (or SMART data for that matter).

sbarash 2007-03-13 11:11 reporter ~0002410	FWIW, I had the same issue. I uninstalled speedfan, and then reinstalled. It was then fine.

ansov 2007-03-15 21:22 reporter ~0002412 Last edited: 2007-03-15 21:23	Asus P5B (ICH8), ST3320620AS,SATA = enhanced+ide, Vista 64 bit. Speedfan do not see any HDD. Can Speedfan read SMART and temperature from controller in non ACHI mode? Win9x:NO 64Bit:YES GiveIO:NO SpeedFan:YES I/O properly initialized Linked ISA BUS at $0290 Linked Intel 82801HB ICH8 SMBUS at $0400 Scanning ISA BUS at $0290... Winbond W83627DHG (ID=$C1) found on ISA at $290 SuperIO Chip=Winbond W83627DHG Scanning Intel SMBus at $0400... End of detection Loaded 0 events Cite begin (SIW v.1.67)---------------------------------- Model ST3320620AS Interface IDE SATA Serial Number 5QF37QZW Revision 3.AAJ Size 320 GBytes Location Tertiary Controller - Master drive Temperature 36

alfredo 2008-05-11 16:24 manager ~0003528	This is an old issue. Under Vista, RUN AS ADMIN is currently needed. On Vista 64 the drivers need to be updated on some occasions.

Date Modified	Username	Field	Change
2007-02-17 12:15	ganix	New Issue
2007-02-17 12:15	ganix	File Added: speedfan-sata-drives.png
2007-02-17 12:15	ganix	Video Card Model	=> GeForce 6100 (NForce 6 (430) Chipset)
2007-02-26 20:08	stormy13	Note Added: 0002358
2007-03-13 11:11	sbarash	Note Added: 0002410
2007-03-15 21:22	ansov	Note Added: 0002412
2007-03-15 21:23	ansov	Note Edited: 0002412
2008-05-11 16:24	alfredo	Note Added: 0003528
2008-05-11 16:24	alfredo	Status	assigned => resolved
2008-05-11 16:24	alfredo	Resolution	open => no change required
