View Issue Details

IDProjectCategoryView StatusLast Update
0002505SpeedFanFan controlpublic2016-03-08 14:14
Reporternolive721 Assigned Toalfredo
Status assignedResolutionopen
PlatformpcOSwindowsOS Versionwindows 10 pro
Product Version4.51
Summary0002505: can not see 2 fans connected to pwm splitter
Descriptioni have a gigabyte Z97N WIFI set up was up to now using 4.51 version and both CPU and system fans were seen in speedfan and could control the cooling of my rig effectively
last week i decided to use a PWM cable splitter plug in the system fan header on the mobo and then add 2 more fans (arctic f8)to improve the cooling of my system and especially the grafix card (gigabyte GTX 750TI OC)

but actually none of the new fans appeared in speedfan UI readings
whatever i try to do in the configure panel doesnt bring any of them in control neither
they spin for sure no problem and just follow the speed of the system fan they are linked to via the pwm cable splitter
i was just hoping i could control them separately but it seems not

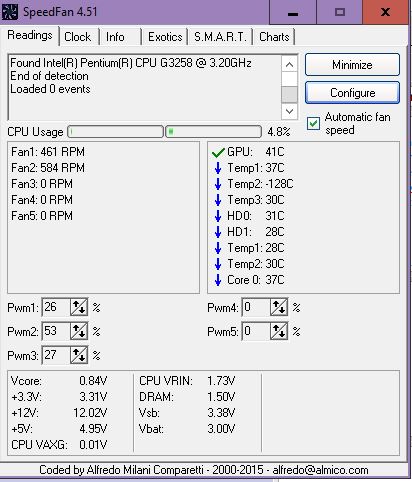

snapshots attached to help describing my issue bit
thanks in advance for any help
Steps To Reproduceseveral tries in configure panel
TagsNo tags attached.
Motherboard ModelGIGABYTE Z97N WIFI
Video Card ModelGIGABYTE GTX 750TI OC



2016-03-08 14:14



Issue History

Date Modified Username Field Change
2016-03-08 14:14 nolive721 New Issue
2016-03-08 14:14 nolive721 Status new => assigned
2016-03-08 14:14 nolive721 Assigned To => alfredo
2016-03-08 14:14 nolive721 File Added: Capture1.JPG
