0002467: sometimes get corrupted/compressed data graph after playing computer games - Almico's Bug Tracker

ID	Project	Category	View Status	Date Submitted	Last Update

0002467	SpeedFan	Logging and charting	public	2015-12-05 17:09	2019-04-07 15:44

Reporter	Gorlash	Assigned To	alfredo
Priority	normal	Severity	minor	Reproducibility	sometimes
Status	assigned	Resolution	open
Platform	Intel Core i7-3820	OS	Windows 7 64-bit	OS Version	7
Product Version	4.51

Summary	0002467: sometimes get corrupted/compressed data graph after playing computer games

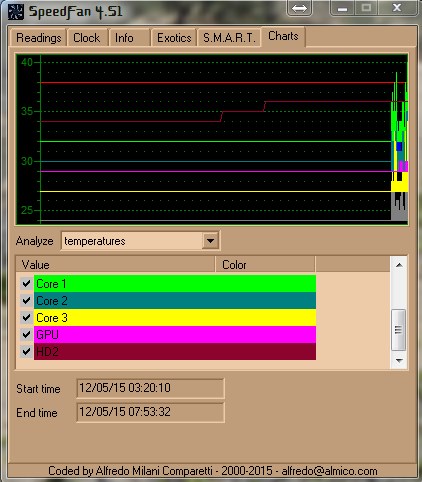

Description	This just started happening recently, perhaps after I installed a Samsung 950 Pro SSD (it is not my boot drive, just for gaming). After I exit from a game (tested with Fallout 4 and Divinity: Original Sin EE), then display the graph to review system temperatures. For a moment the graph displays normally, then switches to a "scrunched" view as shown in the accompanying image. Once graph is corrupted like this, it does not recover until program is closed and re-opened.
Steps To Reproduce	> start SpeedFan > on Charts page, enable all 9 sensors for graphing Display is initially normal, except that the HD2 (Samsung SSD) line usually does not draw all the way across the graph like the others do > start Fallout 4 and play for awhile > close the game, Restore SpeedFan, which is set to Charts page; graph will momentarily be normal, then will flash and show the corrupted display.
Additional Information	System data shown by SpeedFan: Win9x:NO 64Bit:YES GiveIO:NO SpeedFan:YES I/O properly initialized Linked ISA BUS at $0290 Linked Intel Patsburg SMBUS at $F000 Found nVidia GeForce GTX 970 Linked nVidiaI2C0 SMBUS at $3D403E3F Linked nVidiaI2C1 SMBUS at $3D403637 Linked nVidiaI2C2 SMBUS at $3D405051 Scanning ISA BUS at $0290... SuperIO Chip=IT8728F Linked ISA BUS at $0A30 Scanning Intel SMBus at $F000... Scanning I2CNVidia SMBus at $3D403E3F... Scanning I2CNVidia SMBus at $3D403637... Scanning I2CNVidia SMBus at $3D405051... Scanning ISA BUS at $0A30... IT8728F found on ISA at $A30 Found OCZ-VERTEX4 on AdvSMART Found SCSI drive WDC WD2003FZEX-0 (2000.4GB) ProbeSCSI: WARNING: hard disk skipped because of invalid returned LogSense data Found SCSI drive Samsung SSD 950 (512.1GB) Found Intel(R) Core(TM) i7-3820 CPU @ 3.60GHz End of detection Loaded 0 events
Tags	No tags attached.

Motherboard Model	GIGABYTE X79-UP4 - overclocked to 4GHz
Video Card Model	GeForce GTX 970

Gorlash 2015-12-05 17:09 reporter	speedfan.graph.glitches.jpg (59,311 bytes) speedfan.graph.glitches.jpg (59,311 bytes)

Gorlash 2016-01-10 04:29 reporter ~0007949	I figured out what caused this, and how to resolve it, though it is still a bug. I had installed a Samsung 950 Pro SSD, 512 GB on my machine. It is connected via a PCIe M.2 adapter card. I installed the Microsoft NVMe drivers for Windows 7 (which I am using). The card works wonderfully, and provides nearly RAM-level speeds!! However, it was shortly after I installed that drive, that SpeedFan 4.51 began exhibiting this issue. So I went to the graphing page, and I de-selected HD2 (the new SSD). This action appears to have solved the problem. Since I'm not especially worried about temperatures on this SSD, this solution is adequate for my purposes, and resolves this issue for me. However, wanted to let the maintainer know about it, as it might be useful in debugging the issue, and it may come up again, since this drive is so popular.

Date Modified	Username	Field	Change
2015-12-05 17:09	Gorlash	New Issue
2015-12-05 17:09	Gorlash	Status	new => assigned
2015-12-05 17:09	Gorlash	Assigned To	=> alfredo
2015-12-05 17:09	Gorlash	File Added: speedfan.graph.glitches.jpg
2016-01-10 04:29	Gorlash	Note Added: 0007949
