0002302: NO FAN CONTROL on Z97X-SLI

ID	Project	Category	View Status	Date Submitted	Last Update

0002302	SpeedFan	Fan control	public	2014-09-15 03:42	2014-09-19 16:07

Reporter	zab4ca	Assigned To	alfredo
Priority	urgent	Severity	major	Reproducibility	unable to reproduce
Status	acknowledged	Resolution	open
Platform	PC	OS	WINDOWS	OS Version	8.1
Product Version	4.50

Summary	0002302: NO FAN CONTROL on Z97X-SLI
Description	On sppedfan 4.51 beta 2. i am able to see temp 2 reading as 127c which is too high an inaccurate. the others seem to me reasonable. The fan spped monitor is almost correct however there is no option to control or configure the fans. the columns are blank.
Tags	No tags attached.

Motherboard Model	Gigabyte Z97X-SLI
Video Card Model	ZOTAC GTX 650Ti

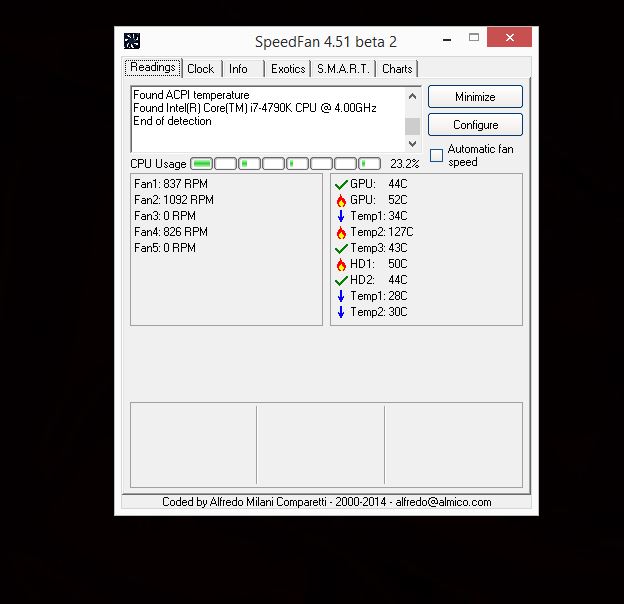

zab4ca 2014-09-15 03:42 reporter	Capture.JPG (51,839 bytes) Capture.JPG (51,839 bytes)

zab4ca 2014-09-15 03:45 reporter ~0007575	a new report has been send

alfredo 2014-09-19 16:07 manager ~0007580	127C are temperature sensors that the motherboard manufacturer didn't connect to anything and can be safely ignored (you can hid them in CONFIGURE / TEMPERATURES). IIRC, the datasheet for the SuperIO chip of your motherboard is not publicly available. If I owned the motherboard I would have tried to see what registers were involved, but... It would be great if Gigabyte shared the relevant information.

Date Modified	Username	Field	Change
2014-09-15 03:42	zab4ca	New Issue
2014-09-15 03:42	zab4ca	Status	new => assigned
2014-09-15 03:42	zab4ca	Assigned To	=> alfredo
2014-09-15 03:42	zab4ca	File Added: Capture.JPG
2014-09-15 03:45	zab4ca	Note Added: 0007575
2014-09-19 16:07	alfredo	Note Added: 0007580
2014-09-19 16:07	alfredo	Status	assigned => acknowledged
