IDProjectCategoryView StatusDate SubmittedLast Update
0001757SpeedFanHardware supportpublic2011-02-23 20:352011-09-23 23:22
Reportersilkman Assigned Toalfredo
PriorityhighSeveritymajorReproducibilityalways
Status acknowledgedResolutionopen
PlatformSpeedfan 4.40OSWin7 x64OS Version2600
Product Version4.43 beta
Summary0001757: System fan not recognized in EVGA 132-CK-NF78 (780i) / NVIDIA chipset
DescriptionHi,

In my system there's also a system fan (small one, included with motherboard) that speedfan will never recognize, although nvidia system monitor recognizes and automatically variates.

Since this fan is VERY noisy, I have to use BOTH nvidia software to variate system fan and speedfan for every other fan.

The two softwares sometimes conflict with each other.

Any ideas how to resolve this?
TagsNo tags attached.
Motherboard ModelEVGA 132-CK-NF78 (780i) / NVIDIA chipset
Video Card Model8600GT x2 SLI

Activities

silkman

2011-02-23 20:35

reporter


silkman

2011-02-23 20:49

reporter

speedfan vs.docx (435,601 bytes)

silkman

2011-02-23 20:53

reporter   ~0005887

Attaching files...

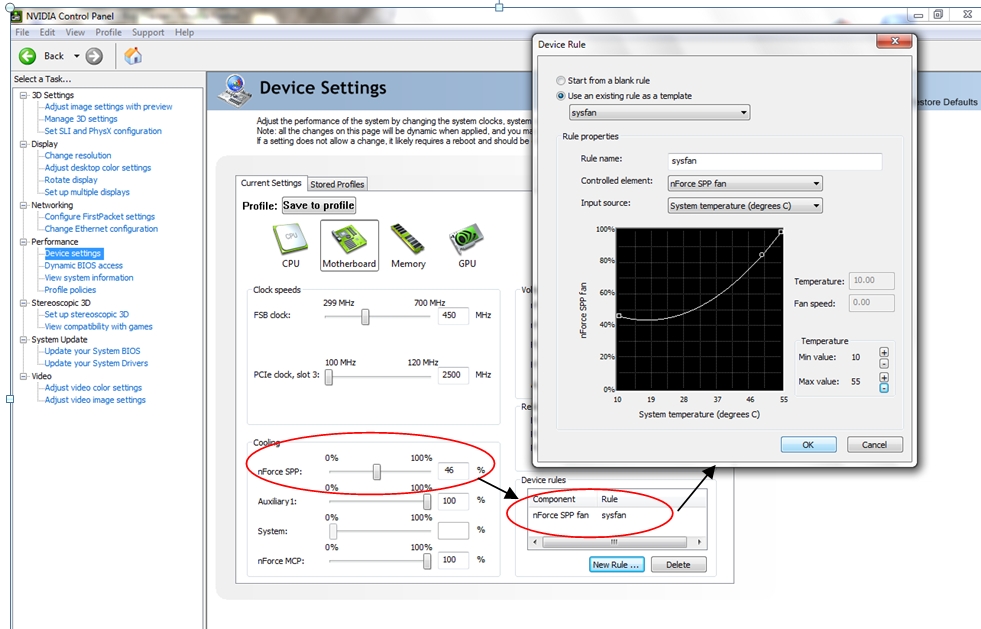

1) Nvidia system monitor, where system fan is shown and variated...
2) comparison of configuration of 4.42 final vs 4.43 beta 12 in wordfile.
In the beta, there are more "things" discovered, ie in fans page three more fans are discovered (although Fan1 is a copy of GPUFan) and in voltages, more information is displayed. However in speeds page, the additional discovered fans can't be variated.

Of course this problem was present in previous speedfan versions...

alfredo

2011-02-24 17:21

manager   ~0005891

Did you try to enter CONFIGURE / ADVANCED and set PWM MODE to MANUAL or to SOFTWARE CONTROLLED?

silkman

2011-02-27 11:14

reporter   ~0005900

Last edited: 2011-02-27 11:20

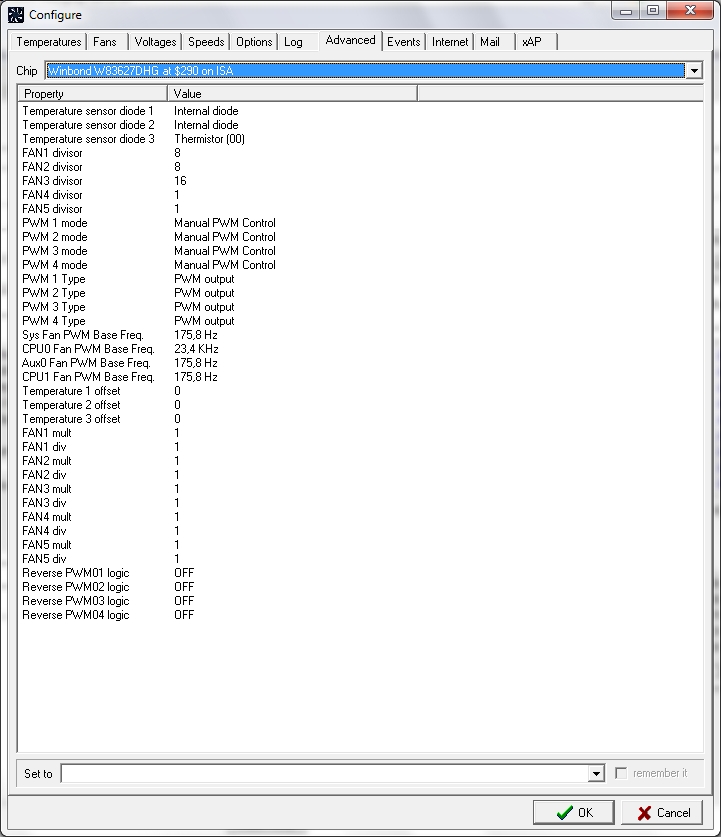

 Here's a screenshot of configure/advanced - there are 4 fans there, which are the ones I already have... The system fan is not displayed.

silkman

2011-02-27 11:15

reporter


silkman

2011-09-23 23:21

reporter

speedfan.docx (363,213 bytes)

silkman

2011-09-23 23:22

reporter   ~0006459

Uploaded info from new beta 4.45 beta 2. MCP Fan still not discovered
